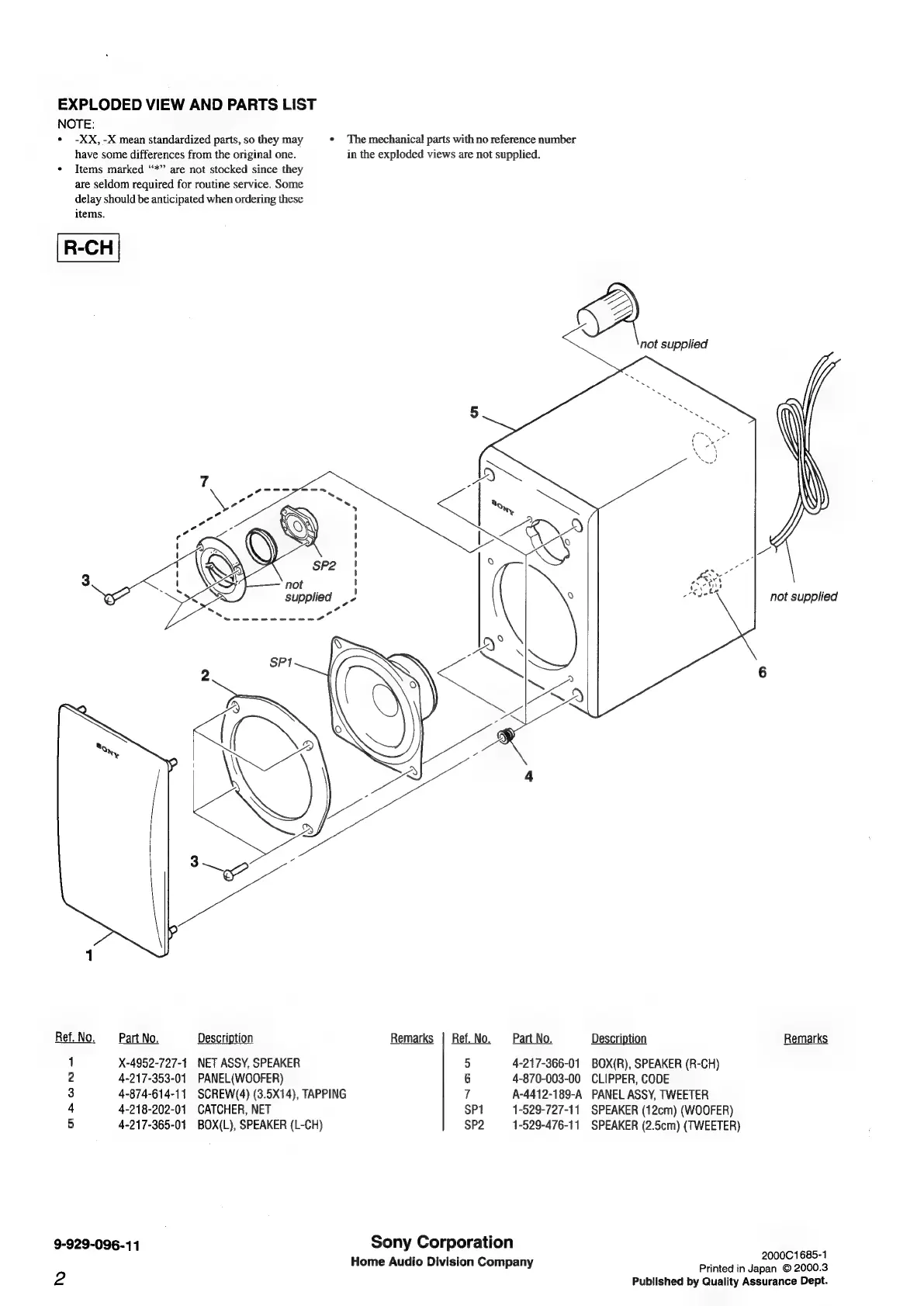

EXPLODED VIEW AND PARTS LIST
NOTE:
* -XX, -X mean standardized parts, so they may ¢ The mechanical parts with no reference number
have some differences from the original one. in the exploded views are not supplied.
* Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
not supplied
\
not supplied
\
Ref.No. Part No. Description Remarks | Ref.No. Part No. Description Remarks
1 X-4952-727-1 NET ASSY, SPEAKER 5 4-217-366-01 BOX(R), SPEAKER (R-CH)
2 4-217-353-01 PANEL(WOOFER) 6 4-870-003-00 CLIPPER, CODE
3 4-874-614-11 SCREW/(4) (3.5X14), TAPPING 7 A-4412-189-A PANEL ASSY, TWEETER
4 4-218-202-01 CATCHER, NET SP1 1-529-727-11 SPEAKER (12cm) (WOOFER)
5 4-217-365-01 BOX(L), SPEAKER (L-CH) SP2 1-529-476-11 SPEAKER (2.5cm) (TWEETER)
9-929-096-11 Sony Corporation ee
Home Audio Division Company Printed in ten ve 2000.3
2 Published by Quality Assurance Dept.
