HCD-CP2A
IC101 C-2
IC102 B-3
IC103 C-2
Q101 B-1

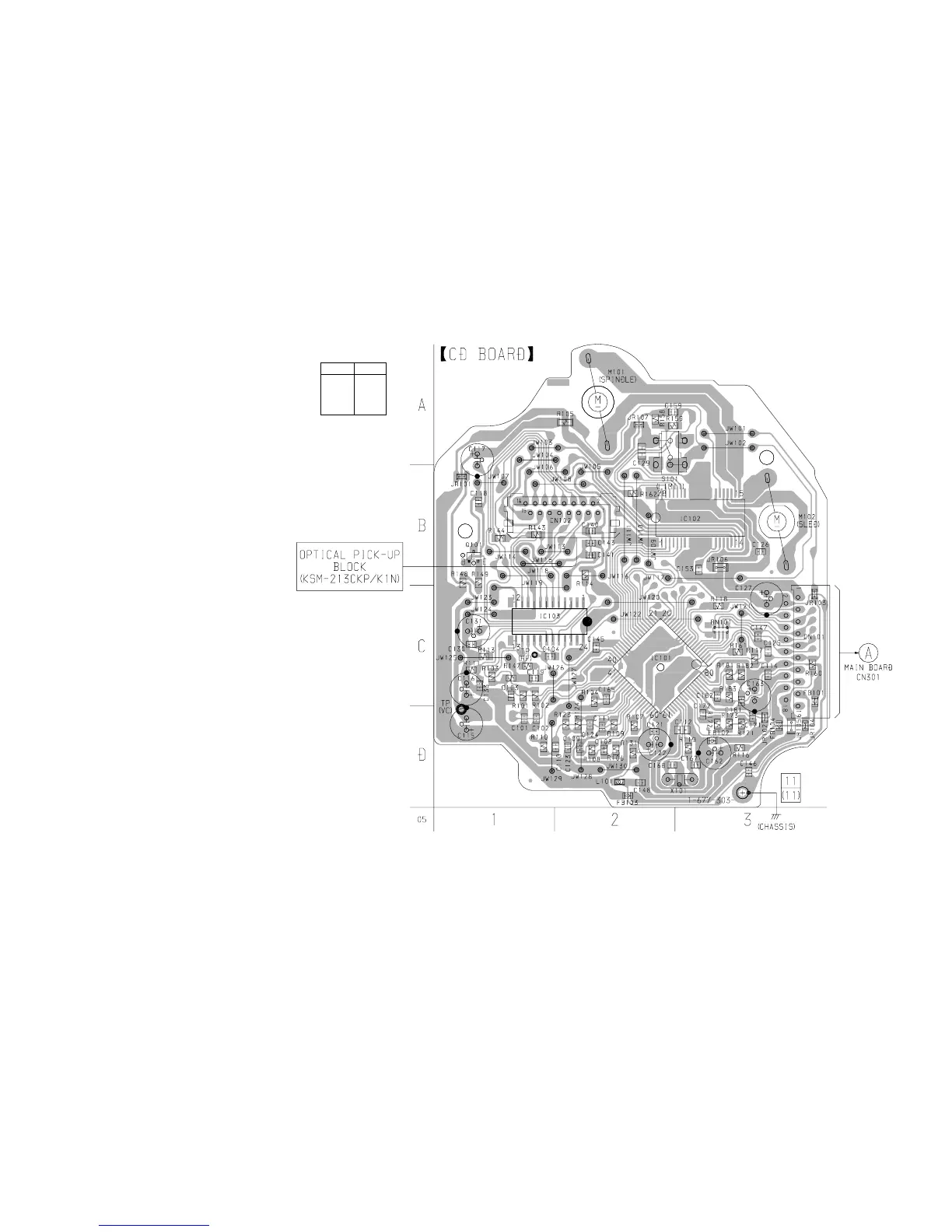

7-2. PRINTED WIRING BOARD – CD Board – • See page 15 for Circuit Boards Location.
• Semiconductor
Location
Ref. No. Location
(Page 23)
