1919
HCD-CP2A

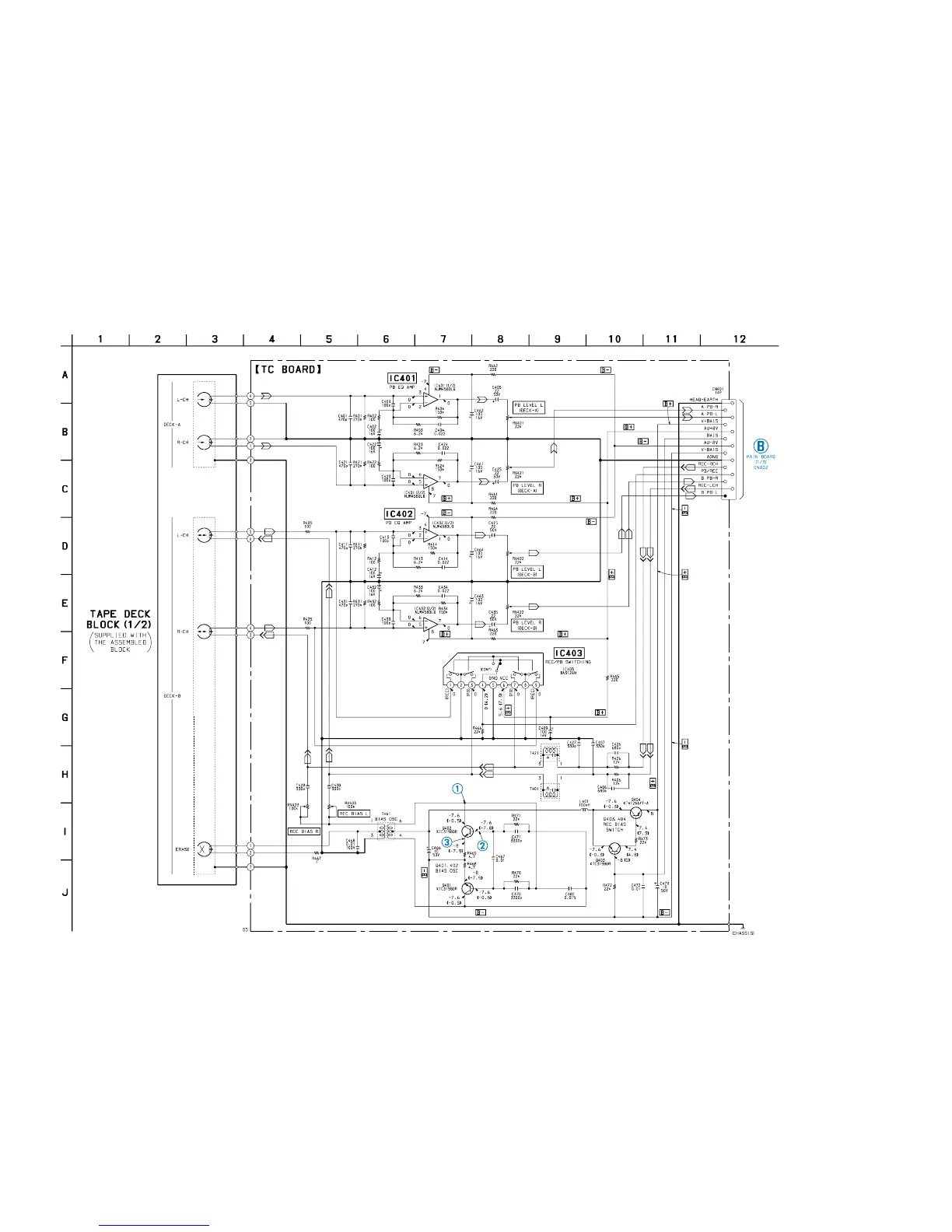

7-5. SCHEMATIC DIAGRAM – TC Section – • See page 29 for Waveforms.
• Voltages and waveforms are dc with respect to ground
under no-signal conditions.
no mark : TAPE PLAY
〈〈 〉〉 : TAPE REC
(Page 20)
