Sony HCD-CP2A - Schematic Diagram - MAIN Section (2;3)

2121
HCD-CP2A
• Voltages and waveforms are dc with respect to ground
under no-signal (detuned) conditions.
no mark : FM
( ) : CD PLAY
[ ] : TAPE PLAY
〈〈 〉〉 : TAPE REC

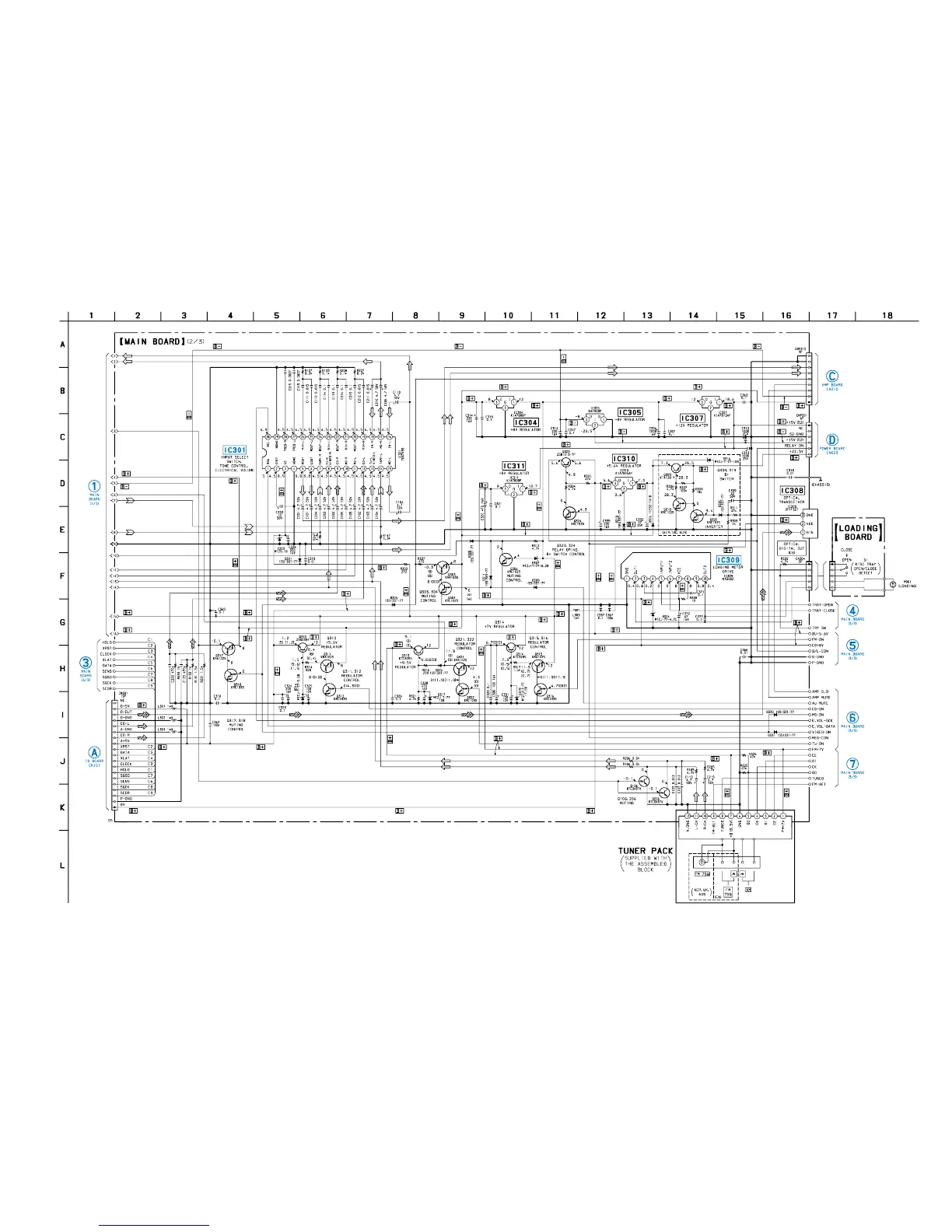

7-7. SCHEMATIC DIAGRAM – MAIN Section (2/3) – • See page 31 for IC Block Diagrams.
