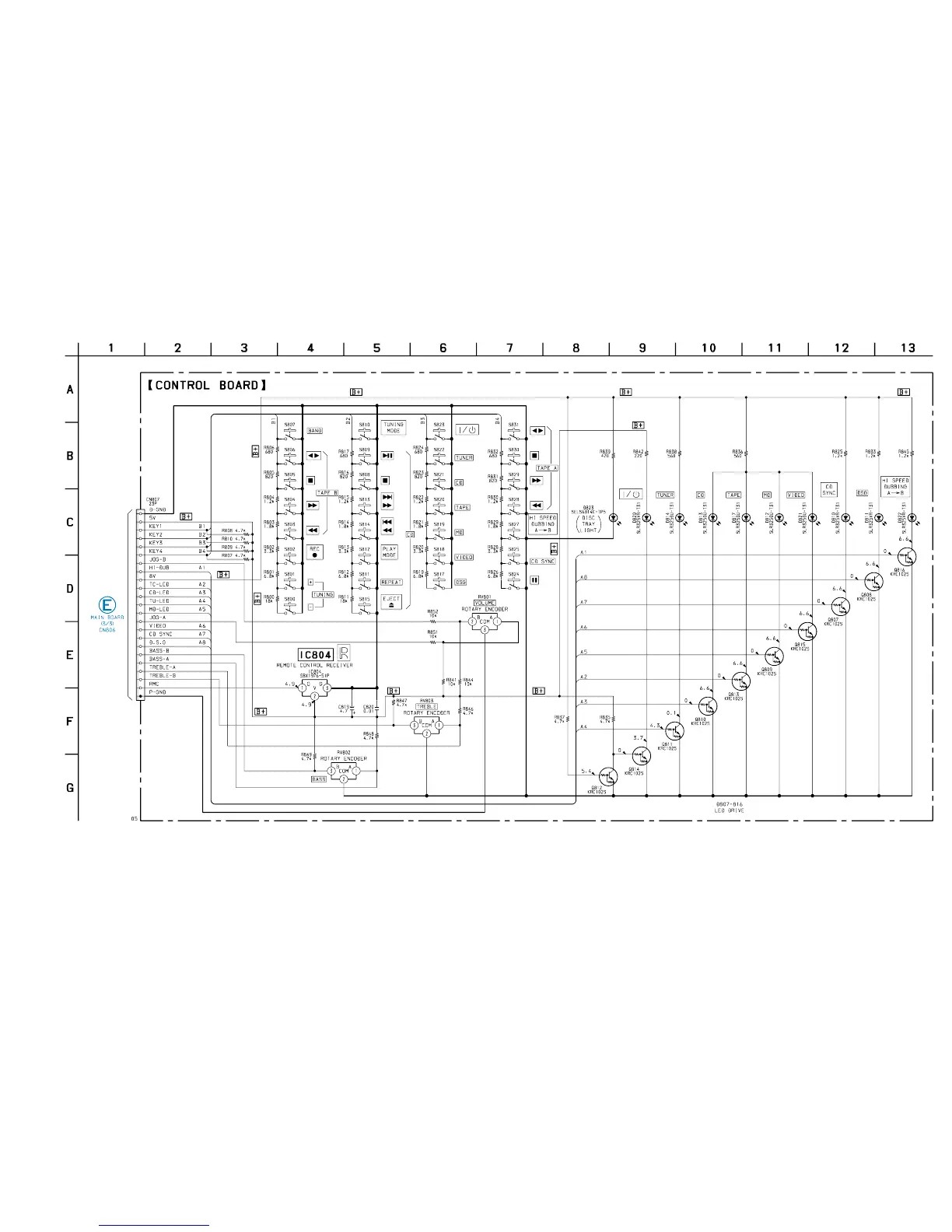

7-15. SCHEMATIC DIAGRAM – CONTROL Section –
• Voltages and waveforms are dc with respect to ground
under no-signal (detuned) conditions.
