HCD-CP2A

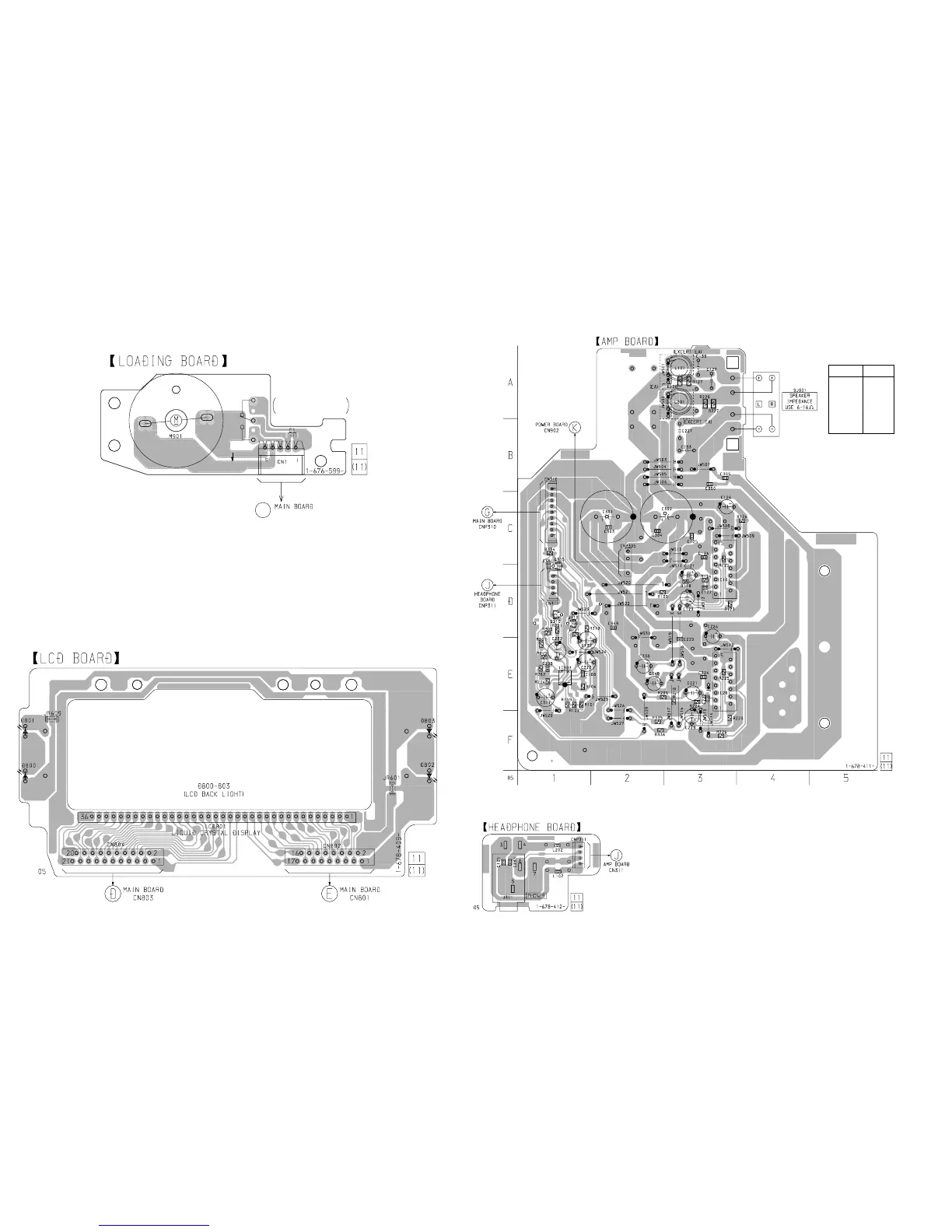

7-10. PRINTED WIRING BOARD – LOADING Board – • See page 15 for Circuit Boards Location.
7-11. PRINTED WIRING BOARD – LCD Board – • See page 15 for Circuit Boards Location.
7-12. PRINTED WIRING BOARDS – AMP/HEADPHONE Boards – • See page 15 for Circuit Boards Location.
• Semiconductor
Location
Ref. No. Location
IC101 D-3
IC201 E-3
IC303 F-1
Q110 D-1
Q210 D-1
Q305 D-1
05
(LOADING)
CN304
C
S1
DISC TRAY OPEN/CLOSE
DETECT
S1
CLOSE
OPEN
(Page 23)
(Page 23)
(Page 23)
(Page 23)
(Page 28)
