Sony HCD-CP2A - Printed Wiring Board - MAIN Board

2323
HCD-CP2A
D301 C-7
D302 G-7
D303 F-7
D304 H-5
D305 H-8
D306 H-10
D307 F-6
D308 F-7
D309 I-5
D310 G-10
D311 I-5
D314 I-9
D315 B-9
D316 H-10
D317 B-9
D318 H-9
D319 B-7
D320 G-8
D321 G-8
D323 C-7
D324 D-5
D326 H-10
D330 J-5
D331 J-5
D363 D-5
D805 B-6
D806 J-5
D807 I-5
D808 J-6
D809 J-6
D815 I-5
D816 F-1
D888 H-1
IC301 D-7
IC302 C-9
IC304 J-9
IC305 I-7
IC306 F-9
IC307 I-10
IC308 E-10
IC309 D-5
IC310 H-9
IC311 I-8
IC800 F-3
IC801 H-2
IC802 I-2

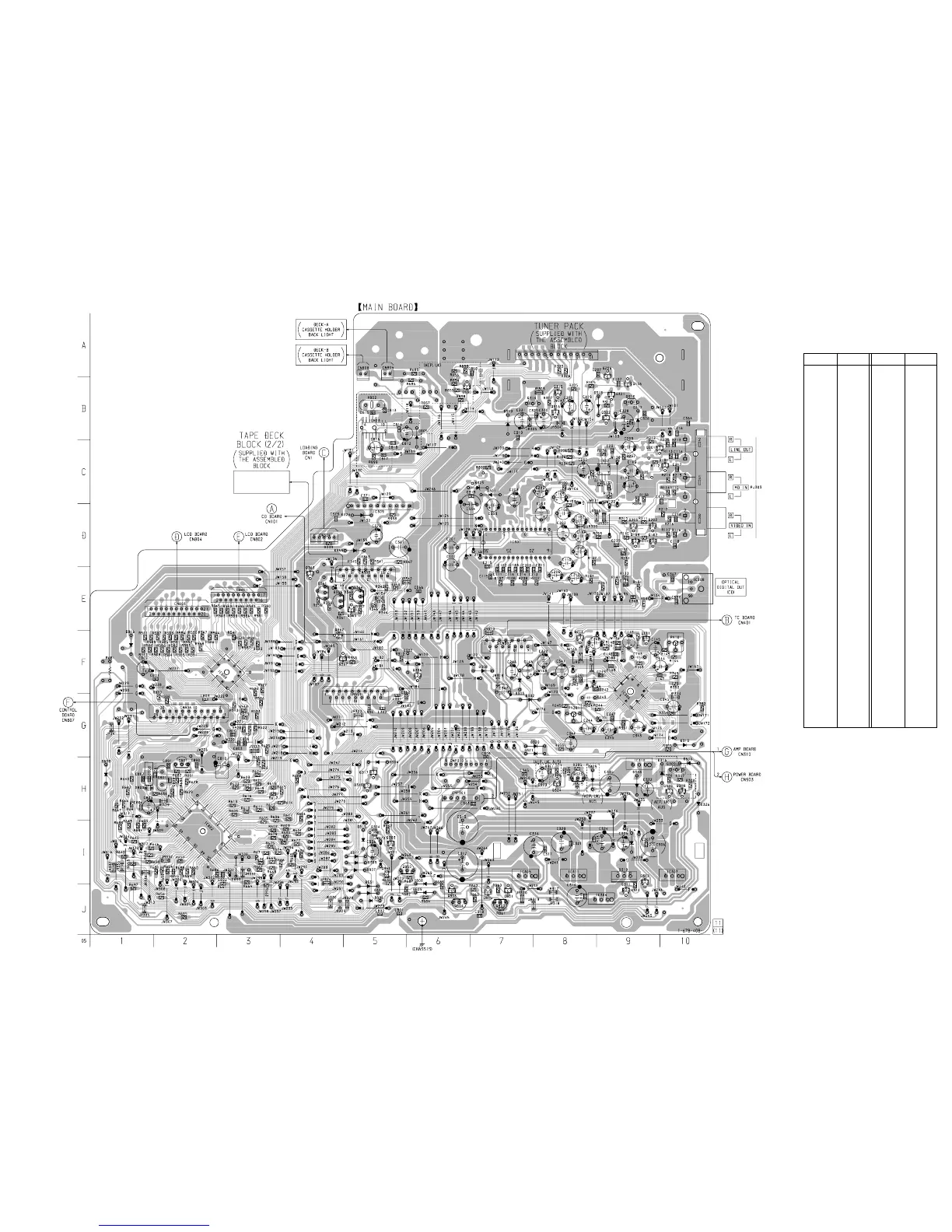

7-9. PRINTED WIRING BOARD – MAIN Board – • See page 15 for Circuit Boards Location.
IC803 B-5
Q101 C-10
Q102 D-9
Q103 D-9
Q106 B-9
Q111 F-9
Q201 C-9
Q202 D-9
Q203 D-9
Q206 A-9
Q211 F-8
Q303 I-5
Q304 I-5
Q306 F-6
Q309 H-10
Q310 I-9
Q311 J-9
Q312 I-9
Q313 B-9
Q314 B-7
Q315 B-8
Q316 B-8
Q317 H-5
Q318 H-5
Q319 H-10
Q320 H-10
Q321 B-9
Q322 B-9
Q323 H-8
Q324 H-8
Q361 E-4
Q362 F-4
Q363 E-4
Q364 E-5
Q365 E-5
Q366 E-4
Q367 F-4
Q800 J-7
Q801 J-7
Q804 J-6
Q805 J-7
Q806 J-6
Q830 B-6
Q850 I-6
Q851 I-5
Ref. No. Location
Ref. No. Location
• Semiconductor Location
(Page
26)
(Page 24)
(Page 24)
(Page 16)
(Page 24)
(Page 18)
(Page 24)
(Page 28)
