Sony HCD-CP2A - Printed Wiring Board - POWER Board; Schematic Diagram - POWER Section

2828
HCD-CP2A

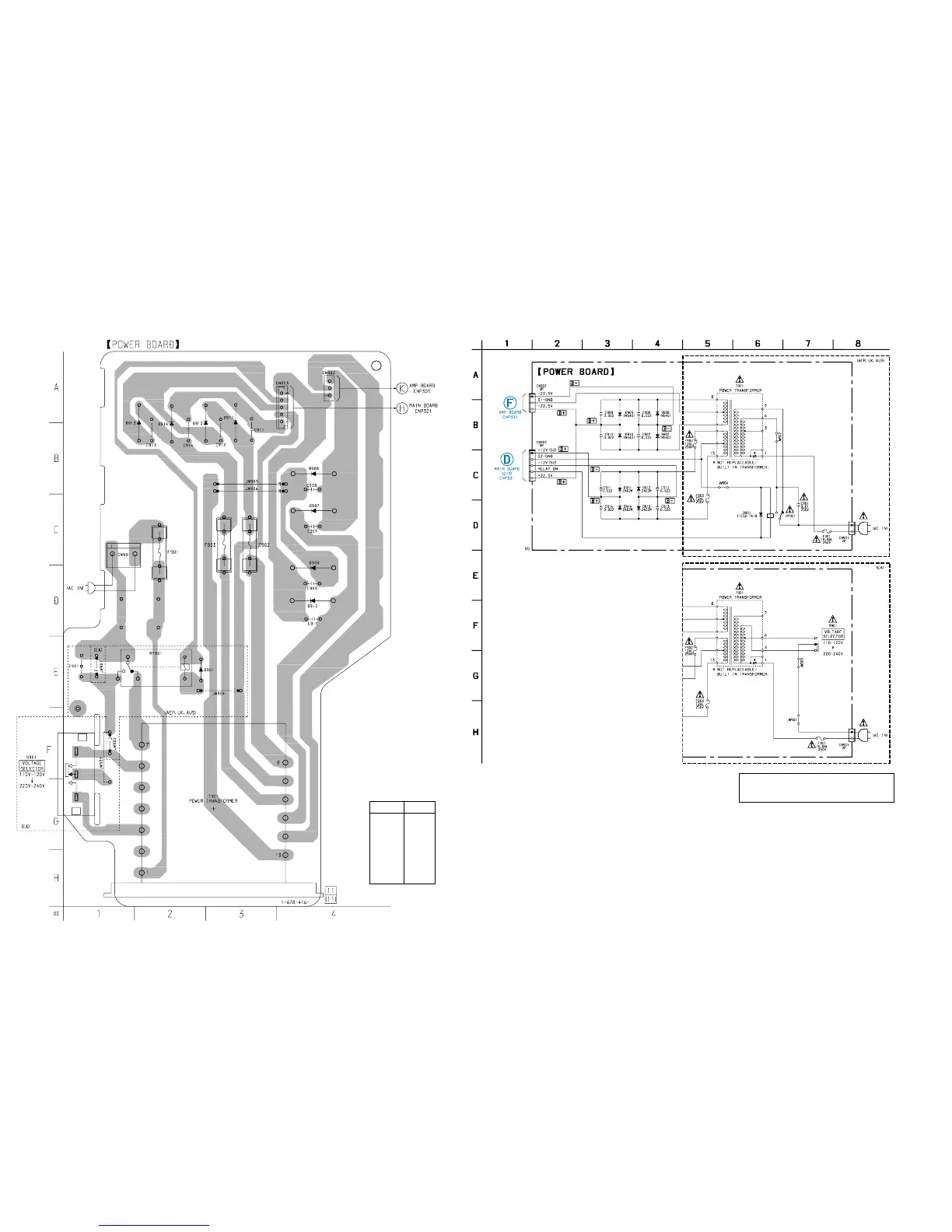

7-16. PRINTED WIRING BOARD – POWER Board – • See page 15 for Circuit Boards Location.
• Semiconductor
Location
Ref. No. Location
D901 E-2
D907 C-4
D908 B-4
D909 D-4
D910 D-4
D911 B-3
D912 B-3
D913 B-2
D914 B-2
7-17. SCHEMATIC DIAGRAM – POWER Section –
The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.
(Page 24)
(Page 23)
(Page 25)
(Page 21)
