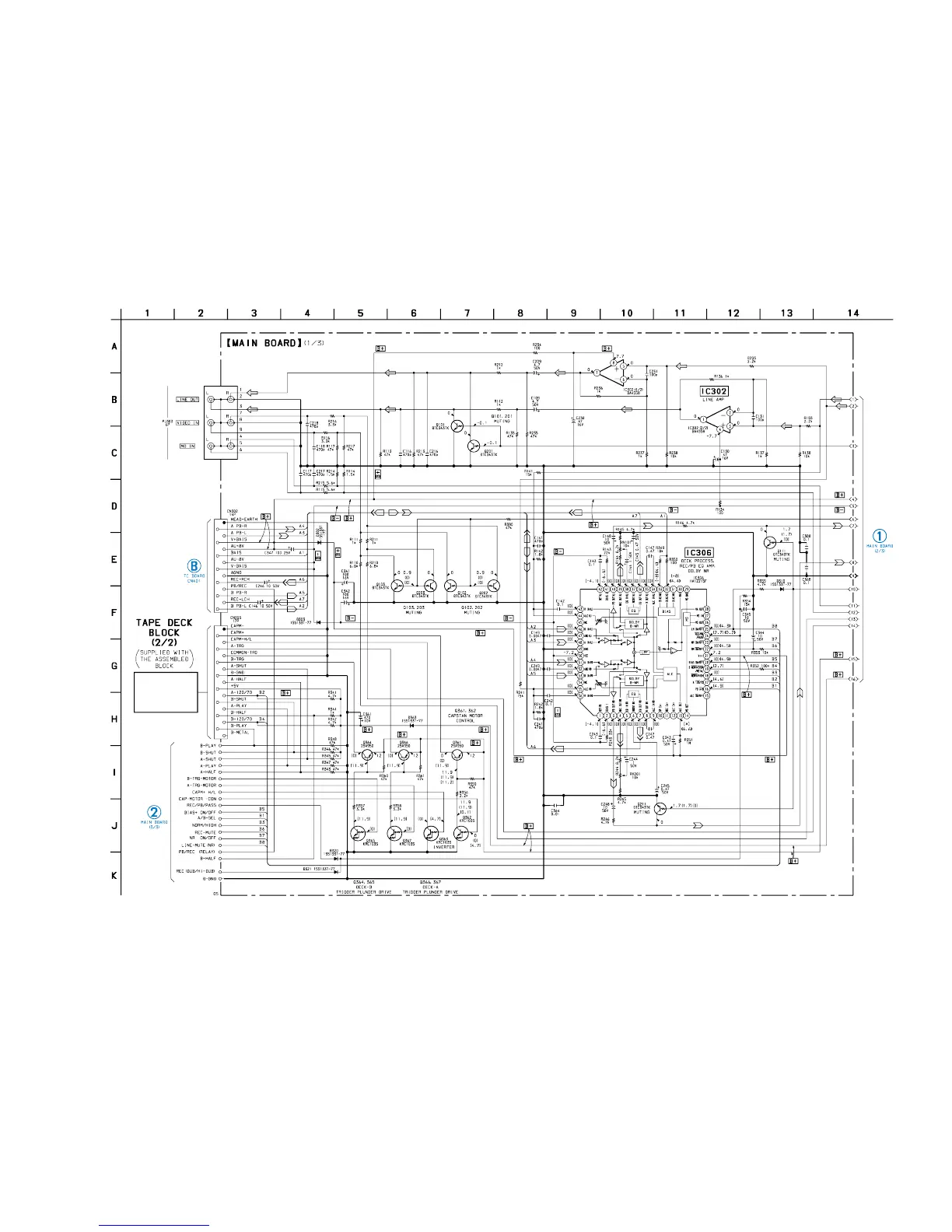

7-6. SCHEMATIC DIAGRAM – MAIN Section (1/3) –
• Voltages and waveforms are dc with respect to ground
under no-signal (detuned) conditions.
no mark : FM
( ) : CD PLAY
[ ] : TAPE PLAY
〈〈 〉〉 : TAPE REC
(Page 19)
