Sony HCD-CP2A - 8 Exploded Views

38

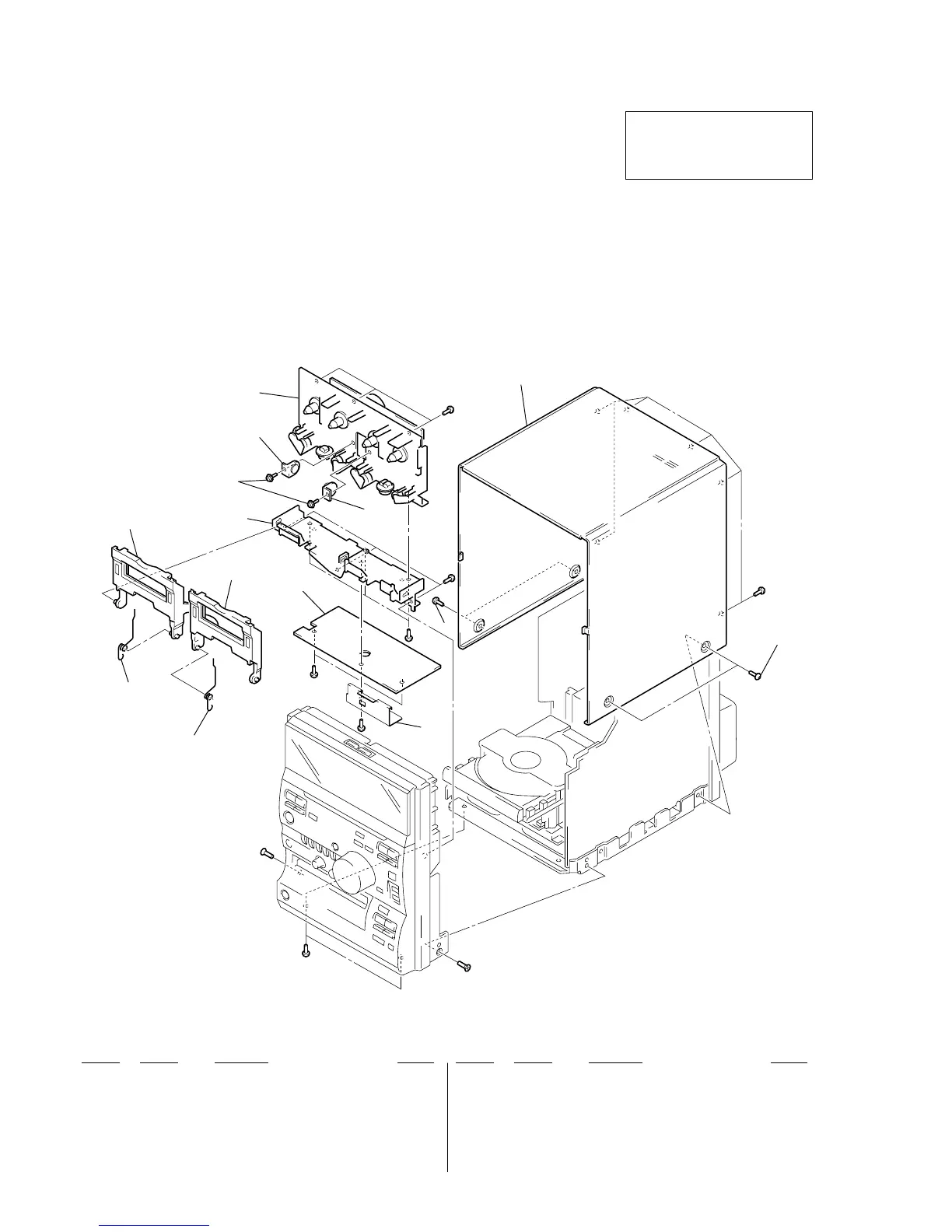

(1) COVER, TAPE MECHANISM DECK SECTION
SECTION 8
EXPLODED VIEWS
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference num-
ber in the exploded views are not supplied.
• Hardware (# mark) list is given in the last of
the electrical parts list.
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
• Abbreviation
AUS : Australian model
EA : Saudi Arabia model
3
4
1
2
6
5
6
#1
#2
#2
#1
#1
#8
#8
#1
#1
11
10
13
12
9
8
9
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
1 4-229-009-01 SPRING (CASSETTE B)
2 4-229-008-01 SPRING (CASSETTE A)
3 X-4952-972-1 HOLDER (A) SUB ASSY, CASSETTE
4 X-4952-973-1 HOLDER (B) SUB ASSY, CASSETTE
5 4-222-370-01 COVER (UPPER)
6 4-221-580-01 SCREW, CASE
8 4-229-015-01 SCREW (+BVTTWH) (2X6)
9 4-229-013-01 DAMPER
10 4-229-012-01 BRACKET (MD)
11 1-772-645-11 DECK, MECHANICAL (TCM) (CMBL6Z112)
12 4-229-016-01 CASE (TC), SHIELD
13 A-4473-593-A TC BOARD, COMPLETE
