Sony HCD-CP2A - Page 39

39

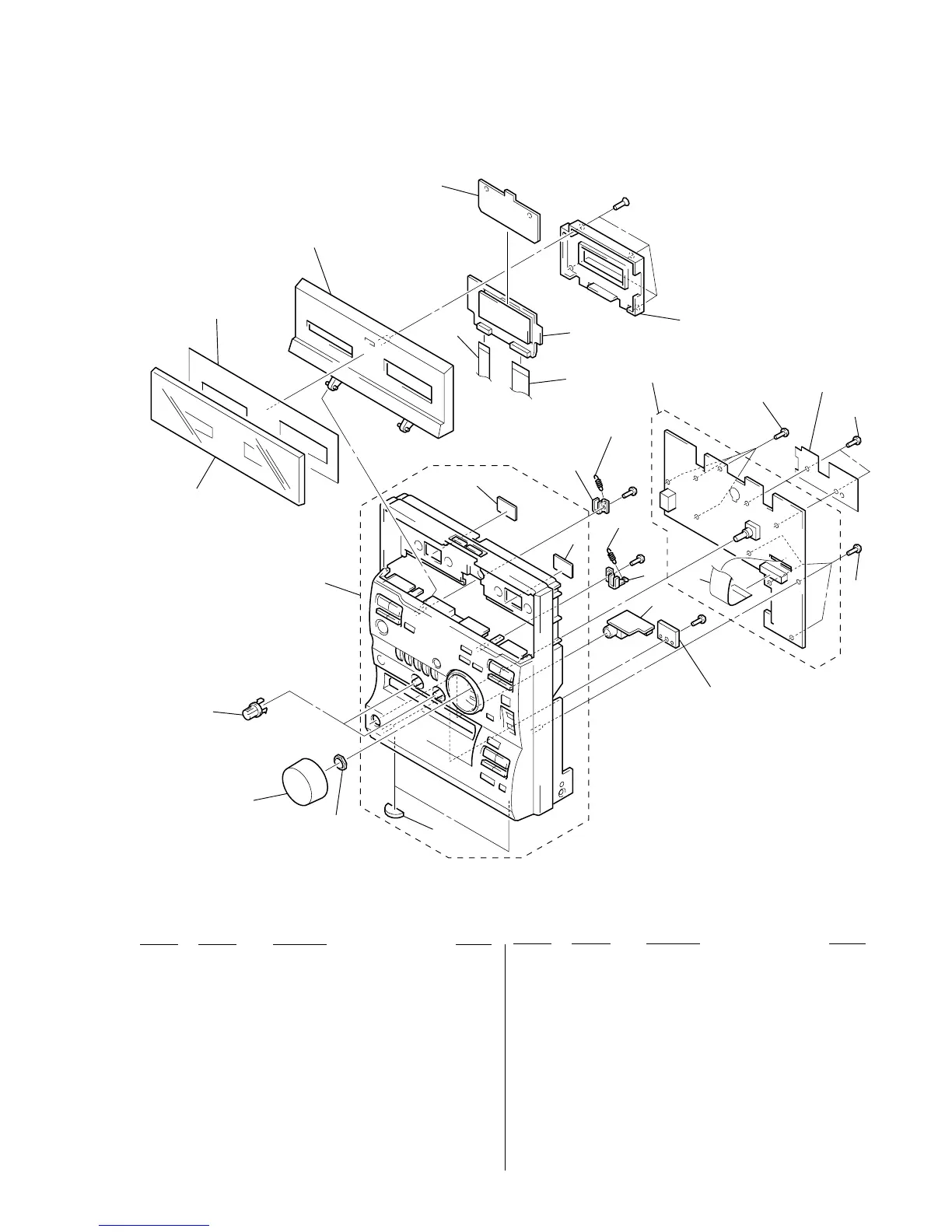

(2) FRONT PANEL SECTION
#1
#3
#1
not supplied
#1
55
56
60
61
59
58
57
54
62
63
53
52
51
72
68
70
67
69
69
69
66
64
65
71
63
not supplied
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
51 X-4952-336-1 KNOB ASSY
52 4-229-014-01 KNOB (BASS)
53 X-4952-974-1 PANEL SUB ASSY, FRONT (AEP, UK)
53 X-4953-086-1 PANEL SUB ASSY, FRONT (EA, AUS)
54 4-222-362-01 WINDOW (CASSETTE)
55 4-222-368-01 SHEET (CASSETTE)
56 4-222-363-01 LID, CASSETTE
57 1-791-437-12 WIRE (FLAT TYPE) (FFC) (17 CORE) (23cm)
58 1-791-438-12 WIRE (FLAT TYPE) (FFC) (21 CORE)
59 1-678-409-11 LCD BOARD
60 4-217-319-01 PLATE, LCD LIGHT
61 4-222-376-01 BRACKET (LCD)
62 1-418-692-31 INDICATOR BLOCK, LED
(DECK-A CASSETTE HOLDER BACK LIGHT)
63 4-222-388-01 SPRING (CASSETTE LID)
64 4-222-394-01 BRACKET (CASSETTE LID A)
65 4-222-395-01 BRACKET (CASSETTE LID B)
66 1-792-835-11 WIRE (FLAT TYPE) (23 CORE)
67 A-4473-594-A CONTROL BOARD, COMPLETE
68 4-218-204-01 FOOT (FRONT)
69 4-931-757-31 SCREW (DIA. 2.6X8) (IT3B), TAPPING
70 1-678-412-11 HEADPHONE BOARD
71 1-418-693-31 INDICATOR BLOCK, LED
(DECK-B CASSETTE HOLDER BACK LIGHT)
72 4-226-047-01 NUT, HEXAGON
