Sony HCD-CP2A - Page 40

40

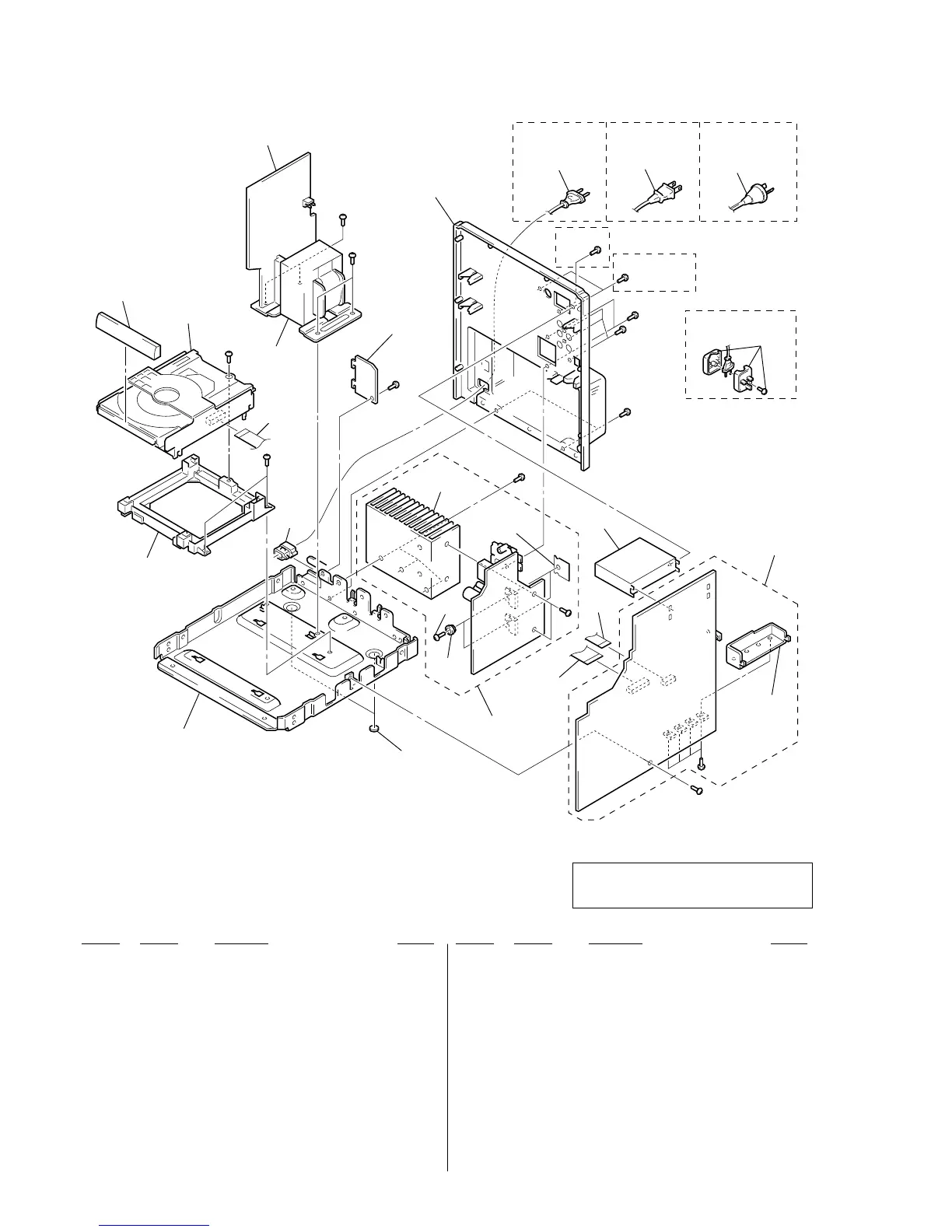

(3) CHASSIS SECTION
112
107
111
110
109
108
106
105
104
116
113
102
103
114
115
UK
AEP, UK,
AUS
AEP, UK
AUS
EA
EA
#4
#4
#5
#1
#1
#1
#1
#1
T901
#1
not supplied
not supplied
not
supplied
not
supplied
not
supplied
#1
#1
#1
#1
#1
CDM55D-K5BD41
101
114
114
The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
101 1-792-834-11 WIRE (FLAT TYPE) (19 CORE)
102 1-678-416-11 POWER BOARD
103 X-4953-083-1 PANEL SUB ASSY, BACK (AEP, UK)
103 X-4953-084-1 PANEL SUB ASSY, BACK (EA)
103 X-4953-085-1 PANEL SUB ASSY, BACK (AUS)
104 1-678-414-11 PWB, RETAINER
105 A-4473-598-A MAIN BOARD, COMPLETE (AEP, UK)
105 A-4475-017-A MAIN BOARD, COMPLETE (EA)
105 A-4475-018-A MAIN BOARD, COMPLETE (AUS)
106 A-4303-600-A TUNER PACK (TCB-020) (AEP, UK, AUS)
106 A-4303-604-A TUNER PACK (TCB-020N) (EA)
107 A-4412-312-A AMP BOARD, COMPLETE (AEP, UK, AUS)
107 A-4412-468-A AMP BOARD, COMPLETE (EA)
108 1-792-832-11 WIRE (FLAT TYPE) (14 CORE)
109 1-792-833-11 WIRE (FLAT TYPE) (17 CORE) (22cm)
110 4-931-757-31 SCREW (DIA. 2.6X8) (IT3B), TAPPING
* 111 4-217-354-01 BUSHING, INSULATING
112 4-217-355-01 FOOT
113 4-227-281-01 LID (CD)
0114 1-690-608-11 CORD, POWER (AUS)
0114 1-696-169-11 CORD, POWER (AEP, UK)
0114 1-696-169-21 CORD, POWER (EA)
0115 1-770-019-11 ADAPTOR, CONVERSION PLUG 3P (UK)
116 4-217-350-11 STOPPER, CORD
0T901 1-435-386-11 TRANSFORMER, POWER (AEP, UK, AUS)
0T901 1-435-628-11 TRANSFORMER, POWER (EA)
