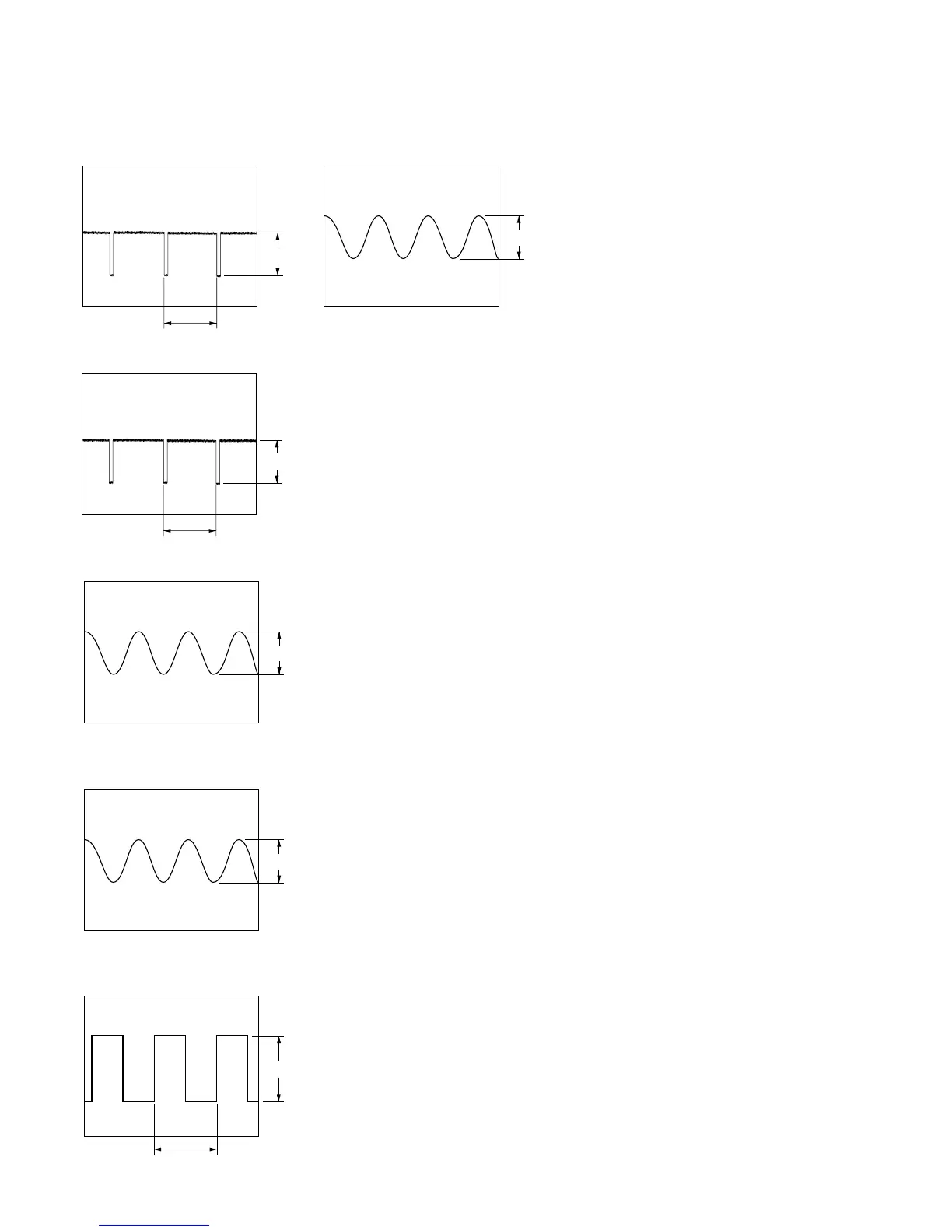

– MAIN Board –
1 IC802 wh (C/D)
2 IC802 wl (LCD-CE)
3 IC802 ea (EXTAL1)
4 IC802 eg (TEX)
5 IC802 ya (RDS-CLK) (FM Mode) (AEP, UK only)
6 IC803 qd (XI) (FM Mode) (AEP, UK only)
3.6 Vp-p
4.19 MHz
2.6 Vp-p
32.768 kHz
4.2 Vp-p
840 µs
2.4 Vp-p
4.332 MHz
