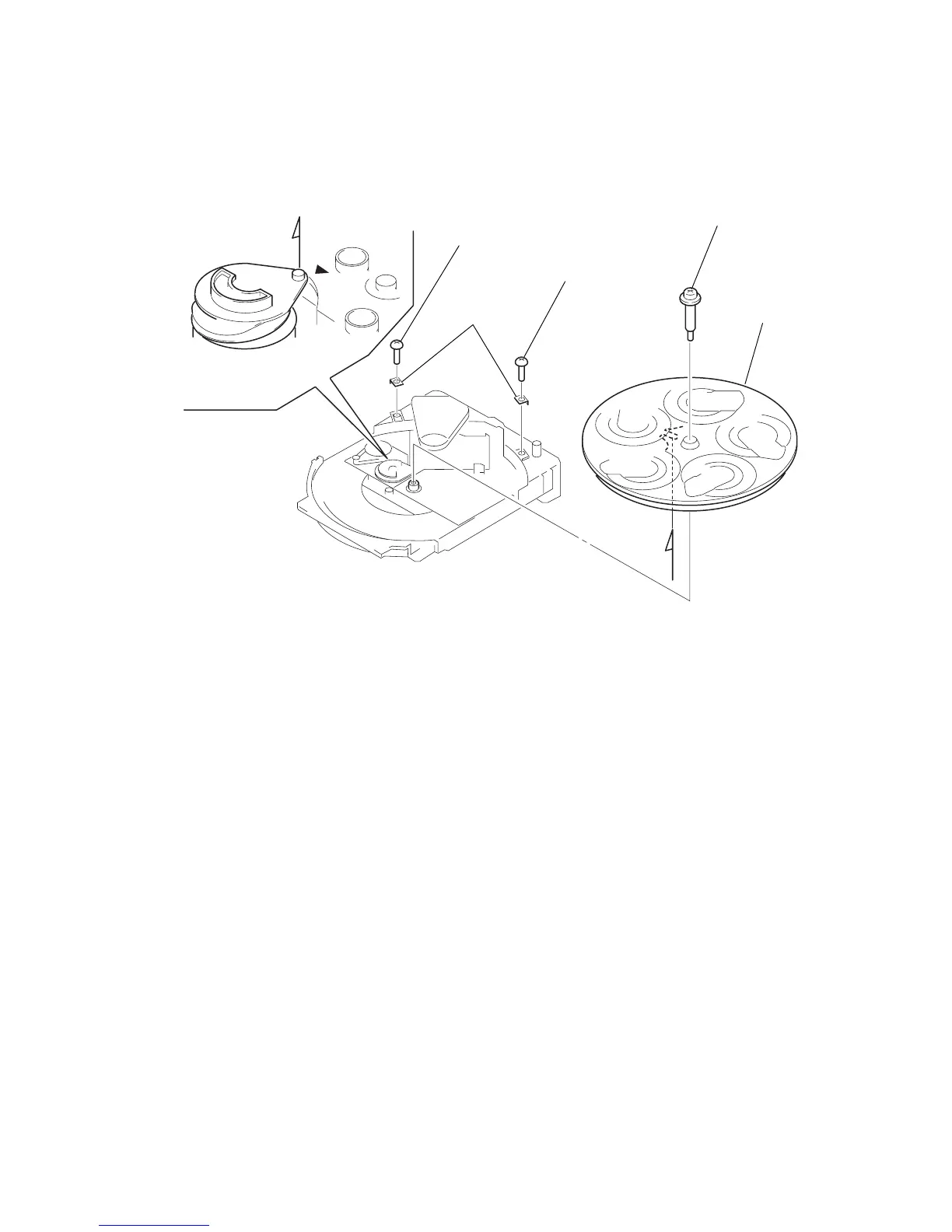

3-8. DISC TABLE
A
A
2 Screw (BVTP3X8)
1 Screw (BVTP3X8)
4 Stop screw
5 Disc table
3 Bracket (BU)
Note:
When the disc table is installed, adjust the positions of
roller cam and mark ” as shown in the figure, then set to
the groove of disc table.
