Sony HCD-DR4 - Front Panel Section 1

– 106 –

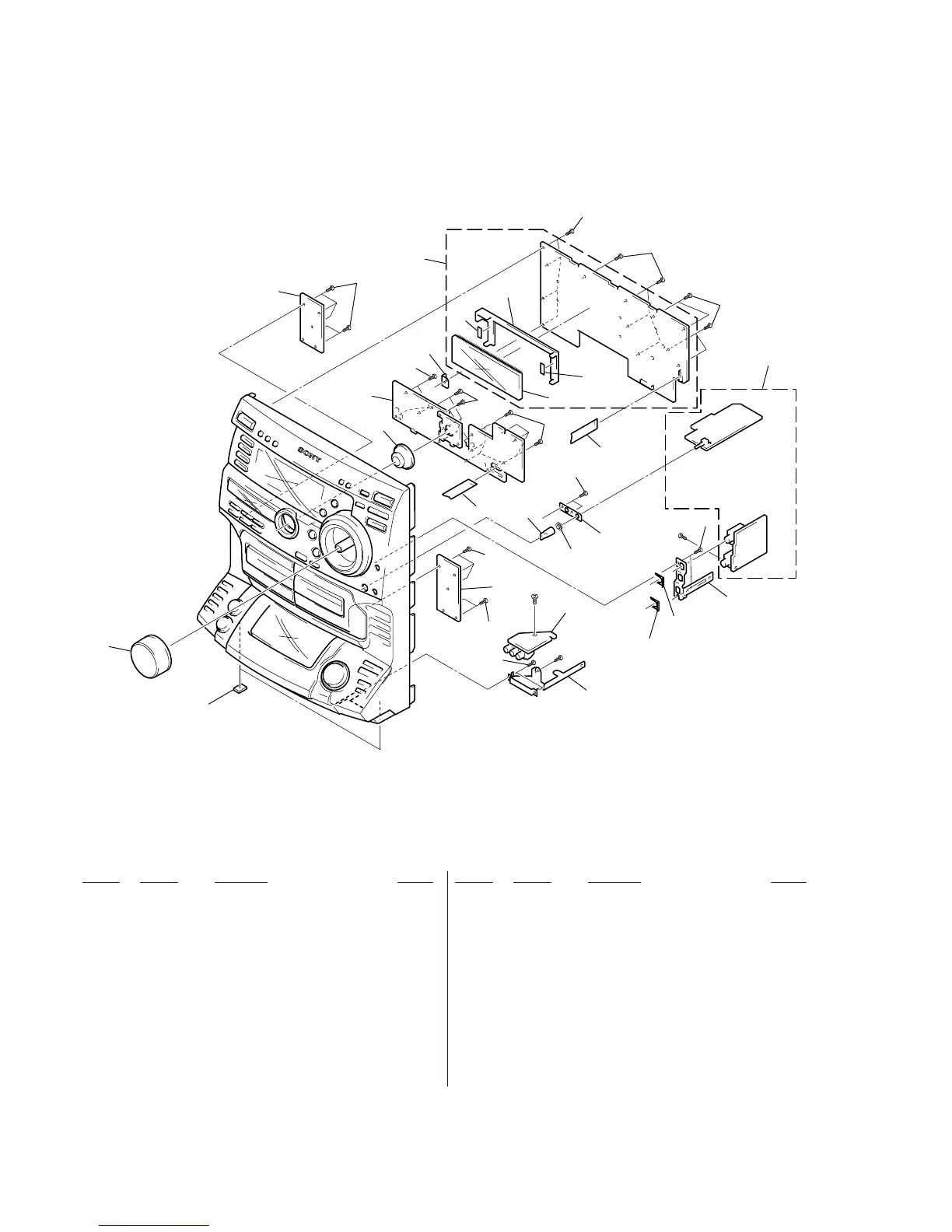

8-2. FRONT PANEL SECTION 1
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
* 57 A-4417-536-A PANEL-VR BOARD, COMPLETE
58 4-948-236-21 CUSHION (107)
59 4-214-717-01 CURSOR (DR4/DR5/DR6/W300/W5000/XB500)
59 4-214-717-11 CURSOR (DR440)
60 4-214-756-01 KNOB (MICROPHONE)
61 1-773-002-11 WIRE (FLAT TYPE) (15 CORE)(80 mm)
62 1-773-034-11 WIRE (FLAT TYPE) (15 CORE)(420 mm)
* 63 4-949-935-81 CUSHION (FL)
* 64 4-214-750-01 HOLDER (915), FL TUBE
65 4-951-620-01 SCREW (2.6X8), +BVTP
FL601 1-517-840-11 INDICATOR TUBE, FLUORESCENT
51 4-214-716-01 KNOB (VOL)
(DR4/DR5/DR6/W300/W5000/XB500)
51 4-214-716-11 KNOB (VOL)(DR44)
* 52 1-672-193-11 TC-A BOARD
* 53 1-672-194-11 TC-B BOARD
* 54 1-672-190-11 FRONT INPUT BOARD
* 55 A-4417-530-A JACK BOARD, COMPLETE
* 56 A-4417-499-A PANEL FL BOARD, COMPLETE (W300/W5000)
* 56 A-4417-510-A PANEL FL BOARD, COMPLETE (XB500)
* 56 A-4417-524-A PANEL FL BOARD, COMPLETE (DR4/DR440)
* 56 A-4417-570-A PANEL FL BOARD, COMPLETE (DR5/DR6)
FL601
Supplied with
J803
not supplied
Supplied with
J801
63
63
64
not supplied
not supplied
not supplied
#3
#3
#3
Supplied with
RV850
51
53
61
62
54
55
52
57
65
59
60
56
65
65
65
65
65
65
65
65
65
65
65
58
