Sony HCD-DR4 - Sub Panel; CD-L;CD-R Board and CD LID Assembly

– 9 –

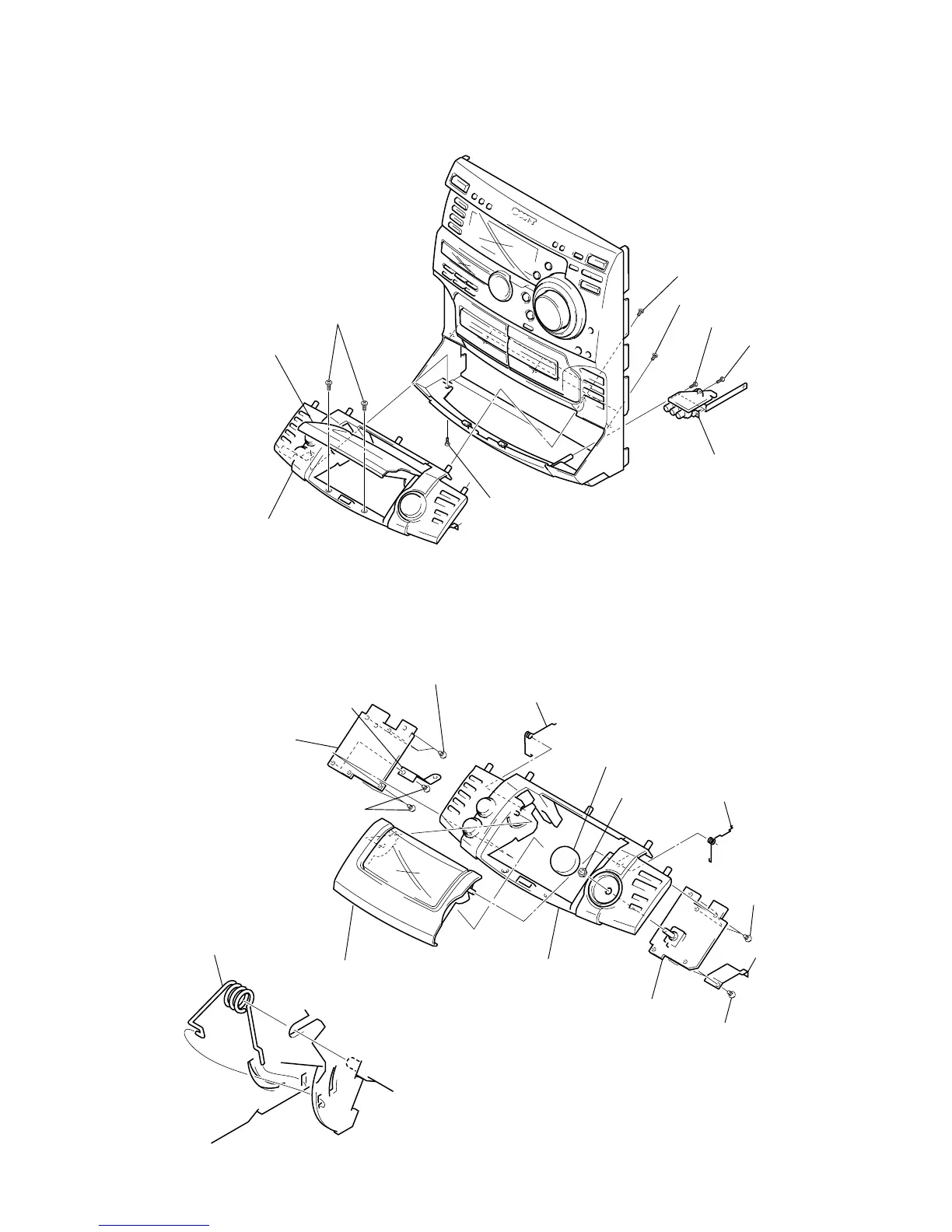

3-3. SUB PANEL
3-4. CD-L/CD-R BOARD AND CD LID ASSEMBLY
4 Open the CD lid assembly
9 Sub panel block
5 Two screws (BTP 2.6x6)
1 Two screws (BVTP 2.6x8)
7 Two screws (BVTP 2.6x8)
8 Three screws (BVTP 2.6x8)
2 Screw (BVTP 3x8)
6 Screw (BVTP 3x8)
3 Front input board
!£ CD lid assembly
1 Three screws (BVTP 2.6x8)
7 Three screws
(BVTP 2.6x8)
8 Two screws (BVTP 2.6x8)
9 Bracket (CD-R)
0 CD-R board
2 Three screws
(BVTP 2.6x8)
3 Bracket (CD-L)
4 CD-L board
!¡ Torsion spring (CD-R)
!™ Torsion spring (CD-L)
Torsion spring (CD-L)
Sub panel assembly
Sub panel assembly
CD lid assembly
5 Knob (CD)
6 Nut
