HCD-DR4/DR5/DR6/DR440/W300/W5000/XB500
– 93 –
– 94 –

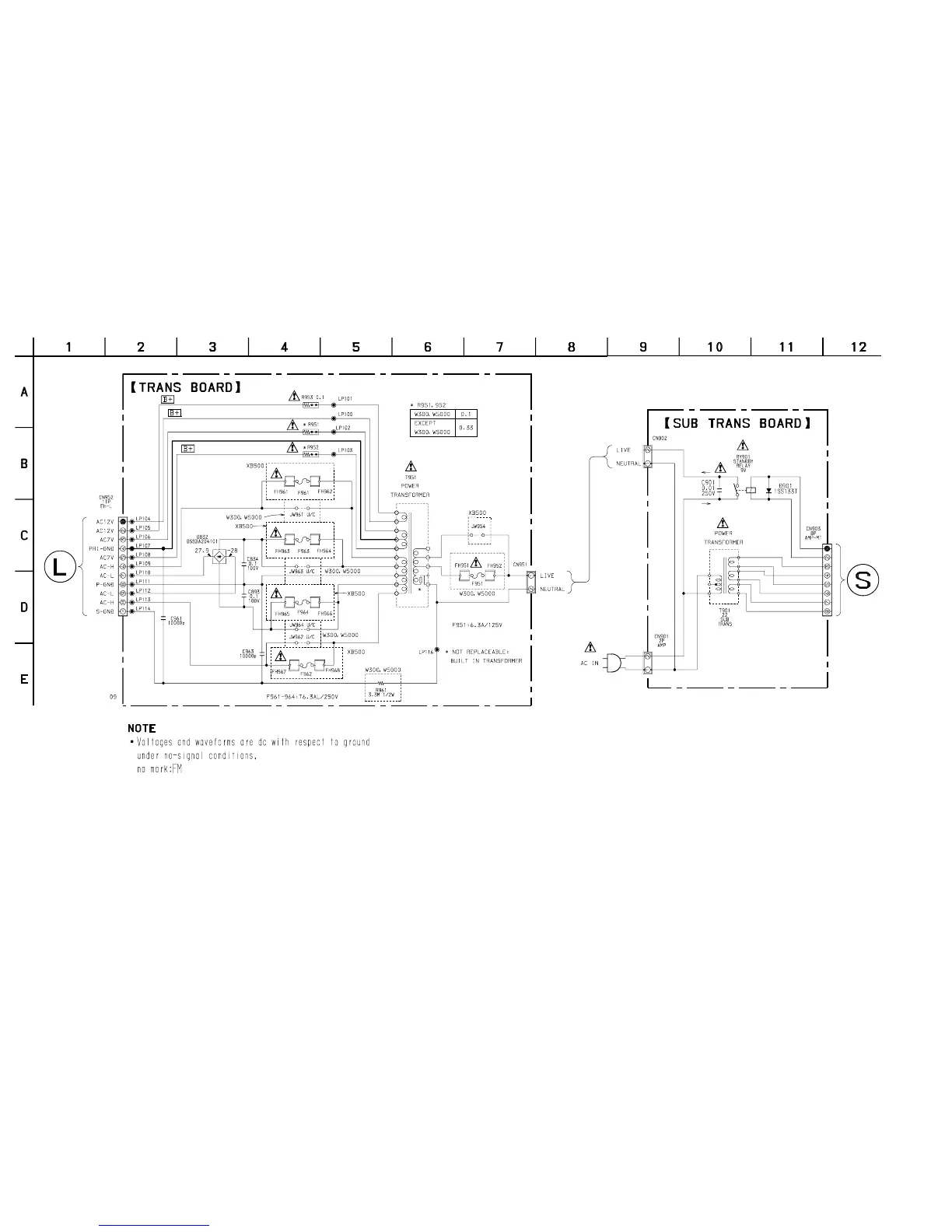

7-31. SCHEMATIC DIAGRAM – TRANS SECTION – (W300, W5000, XB500 model)
(Page 66)
(Page 67)
