Sony HCD-DR4 - 8 Exploded Views; Case and Back Panel Section

– 105 –
SECTION 8
EXPLODED VIEWS

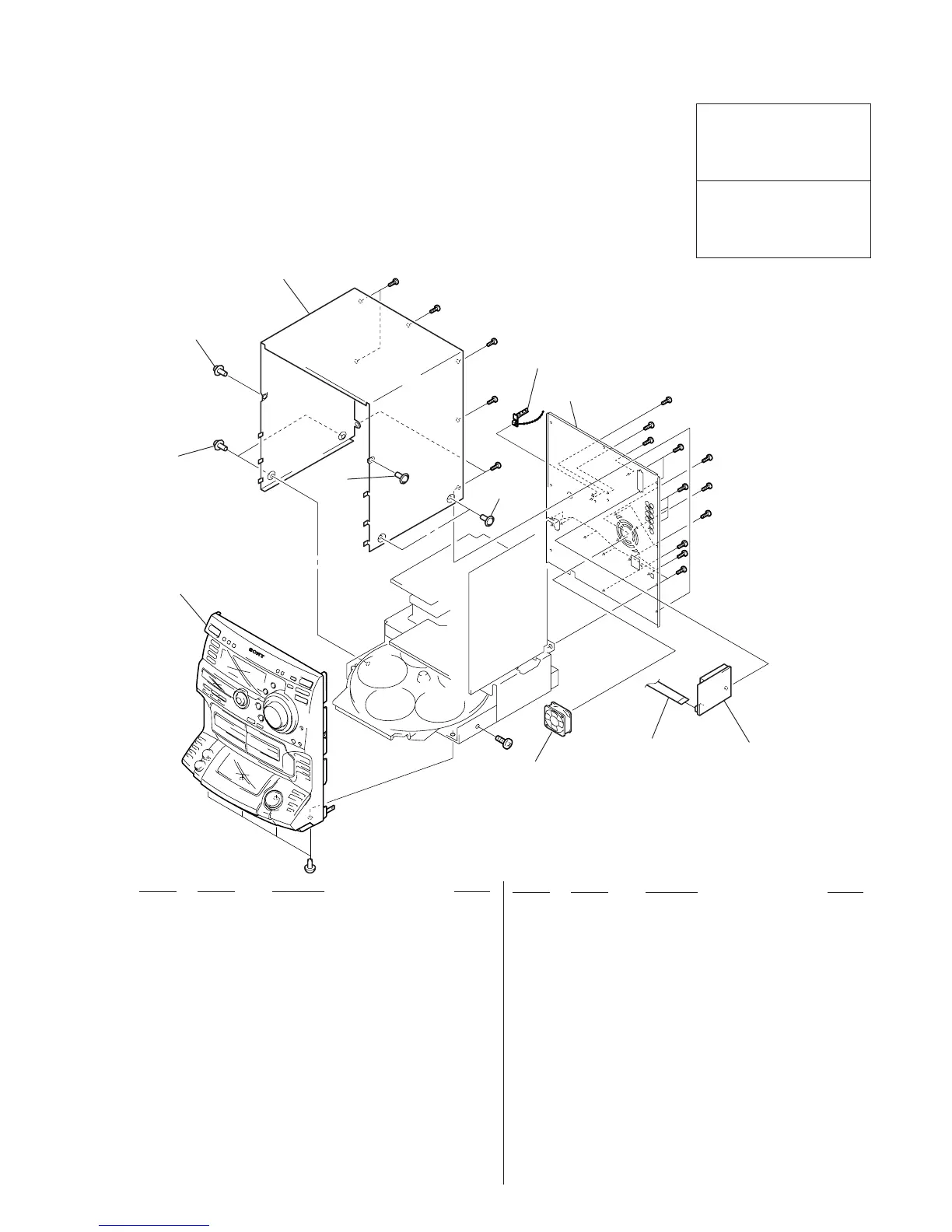

8-1. CASE AND BACK PANEL SECTION
NOTE:
• Items marked “*” are not stocked since they are
seldom required for routine service. Some delay
should be anticipated when ordering these items.
• The mechanical parts with no reference number in
the exploded views are not supplied.
• Hardware (# mark) list and accessories and pack-
ing materials are given in the last of this parts list.
The components identified by
mark ! or dotted line with mark
! are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque ! sont critiques pour la
sécurité.
Ne les remplacer que par une
piéce portant le numéro spécifié.
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
* 3 4-214-787-41 PANEL, BACK (W300:US)
* 3 4-214-787-51 PANEL, BACK (W300:CND)
* 3 4-214-787-61 PANEL, BACK (W5000)
* 3 4-214-788-31 PANEL, BACK (DR6:E,AR)
* 3 4-214-788-41 PANEL, BACK (DR6:SP,MY)
* 3 4-214-788-51 PANEL, BACK (DR6:MX)
* 3 4-214-786-91 PANEL, BACK (DR4:TH)
4 3-363-099-01 SCREW (CASE 3 TP2)
5 1-233-545-11 TUNER (UNIT)(EA,SP,MY,AR,MX,AUS)
5 1-693-443-11 TUNER (UNIT)(AEP,UK)
5 1-693-445-11 TUNER (UNIT)(US,CND)
5 1-693-453-11 TUNER (UNIT)(TH)
6 4-956-370-12 BAND, PLUG FIXED (AUS,UK)
M901 1-698-792-11 FAN, DC (DR4/DR440/W300/W5000)
M901 1-763-072-11 FAN, DC (DR5/DR6)
1 1-769-977-11 WIRE (FLAT TYPE) (13 CORE)
(DR4/DR5/DR6/DR440/W300/W5000)
1 1-773-009-11 WIRE (FLAT TYPE) (15 CORE)(XB500)
* 2 4-214-777-11 CASE (DR4/DR5/DR6/W300/W5000/XB500)
* 2 4-214-777-31 CASE (DR440)
* 3 4-214-785-01 PANEL, BACK (XB500:AEP,UK)
(Indonesia PRODUCT)
* 3 4-214-785-21 PANEL, BACK (XB500:AEP)(Thai PRODUCT)
* 3 4-214-786-01 PANEL, BACK (DR4:E,AR)
* 3 4-214-786-11 PANEL, BACK (DR4:SP)
* 3 4-214-786-21 PANEL, BACK (DR4:MX)
* 3 4-214-786-31 PANEL, BACK (DR4:AUS)
* 3 4-214-786-41 PANEL, BACK (DR4:EA)
* 3 4-214-786-51 PANEL, BACK (DR5:E,AR)
* 3 4-214-786-61 PANEL, BACK (DR5:SP)
* 3 4-214-786-71 PANEL, BACK (DR5:MX)
* 3 4-214-786-81 PANEL, BACK (DR440)
4
4
4
2
3
4
5
1
M901 (Except XB500)
FRONT PANEL
#3
#3 (W300/W5000/XB500)
#3 (XB500)
#3
#3
#3
#3
#3
#3
#3 (DR4/DR440/W300/W5000)
#3 (DR4/DR440/W300/W5000)
#3 (DR5/DR6)
#2
#3
#1
#1
#1
#1
6 (AUS, UK)
• Abbreviation
CND : Canadian model
EA : Saudi Arabia model
MX : Mexican model
SP : Singapore model
MY : Malaysia model
AR : Argentine model
TH : Thailand model
