Sony HCD-DR4 - Disassembly; Front Panel; Main Board

– 8 –

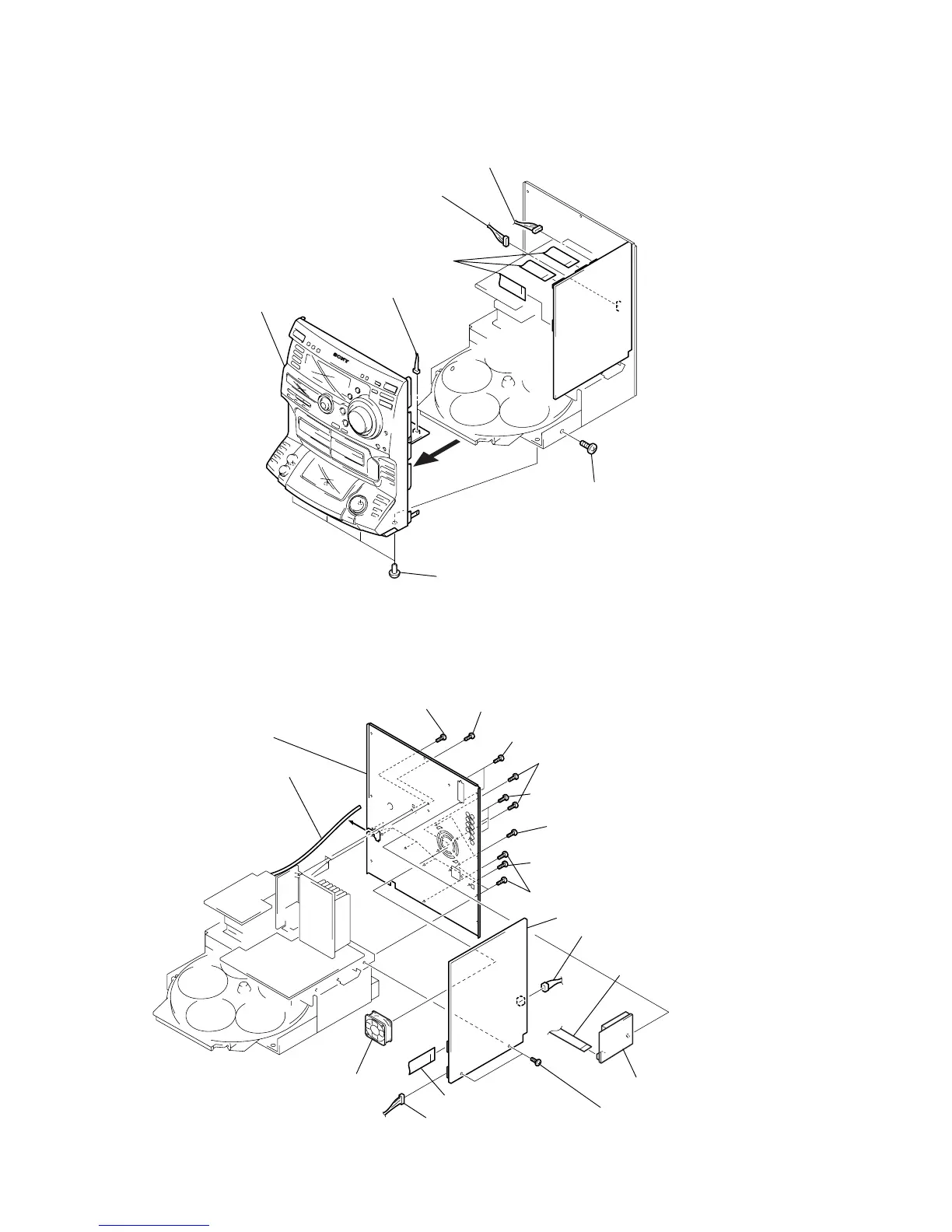

SECTION 3
DISASSEMBLY
Note: Follow the disassembly procedure in the numerical order given.
3-1. FRONT PANEL
3-2. MAIN BOARD
1 Three flat type wires
(CN303,CN304,CN431)
2 Connector (CN702)
3 Connector (CN452)
4 Connector (CN802)
7 Front panel
5 Screw (BVTP 3x8
)
6 Four screw (BVTP 3x8)
4 Connector (CN412)
5 Flat type wire (CN411)
1 Flat type wire (CN1)
3 Tuner unit
2 Two screws (BVTP 3x8)
!™ Screw (BVTP 3x8)
(HCD-XB500)
7 Seven screws (BVTP 3x8)
!¡ Fan motor
(Except XB500)
!¢ Power cord
!∞ Back panel
8 Two screws (BVTP 3x8)
6 Connector (CN903)
(Except XB500)
!¶ Main board
!§ Two screws (BVTP 3x8)
0 Two screws (BVTP 3x8)
(HCD-DR5/DR6)
0 Two screws (BVTP 3x8)
(HCD-DR4/DR440/W300/W5000)
!£ Screw (BVTP 3x8)
(HCD-W300/W5000/XB500)
9 Three screws (BVTP 3x8)
