Sony HCD-DR4 - Printed Wiring Board - Main Section

HCD-DR4/DR5/DR6/DR440/W300/W5000/XB500
– 41 –
– 42 –

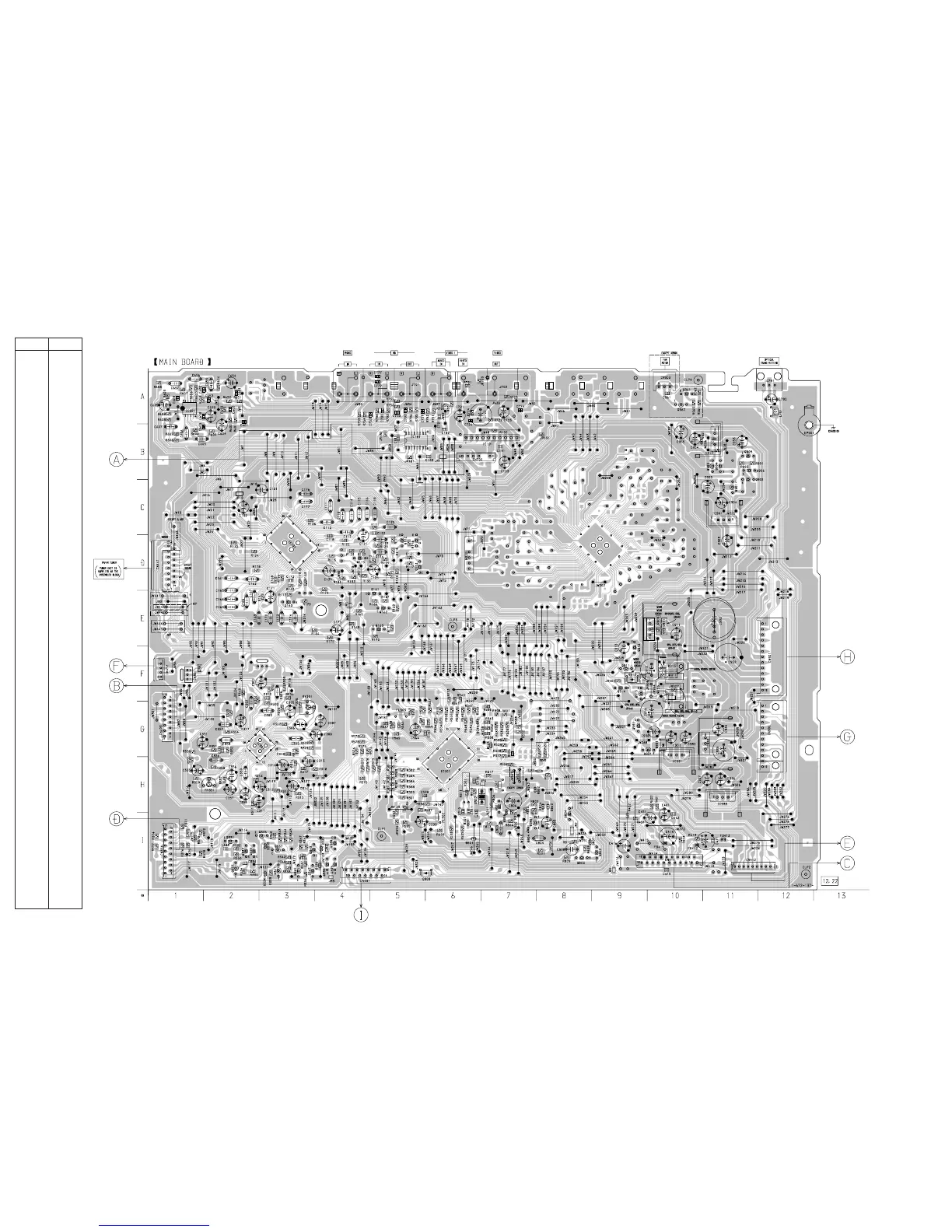

7-5. PRINTED WIRING BOARD – MAIN SECTION –
• See page 20 for Circuit Boards Location.
D333 I-3
D334 J-3
D335 I-4
D336 I-4
D501 I-6
D534 G-7
D802 H-8
D803 H-8
D804 H-7
D805 H-8
D806 H-7
D807 I-9
D808 J-6
D911 E-10
D912 F-9
D913 F-10
D931 G-10
D951 B-11
IC101 D-3
IC181 B-5
IC191 B-7
IC301 G-3
IC501 H-6
IC601 A-1
IC901 C-11
IC931 G-10
IC932 G-11
IC933 H-11
IC951 B-11
IC801 I-8
IC911 E-10
Q111 D-5
Q112 D-5
Q113 D-5
Q115 D-4
Q161 E-5
Q162 E-5
Q163 E-5
Q165 E-3
Q331 I-2
Q332 I-2
Q333 J-2
Q334 I-2
Q335 J-4
Q336 I-3
Q337 I-3
Q338 I-4
Q339 J-4
Q340 J-3
Q341 J-3
Q342 J-3
Q343 I-3
Q801 H-7
Q802 I-9
Q803 I-8
Q804 I-8
Q901 C-11
Q902 B-11
Q903 B-11
Q904 B-11
Q905 B-11
Q906 B-11
Q911 F-9
Q912 F-9
Q913 F-9
Q914 F-9
Q931 G-10
Q932 G-9
Q961 A-10
Q962 A-10
• Semiconductor
Location
Ref. No. Location
(Page 84)
(Page 91)
(Page 55)
(Page 100)
(Page 71)
(Page
38)
(Page
87)
(Page 61,
63)
(Page 61,
63)
