Sony HCD-DX70 - Printed Wiring Board - Power AMP Section

HCD-DX70
3232
CN701

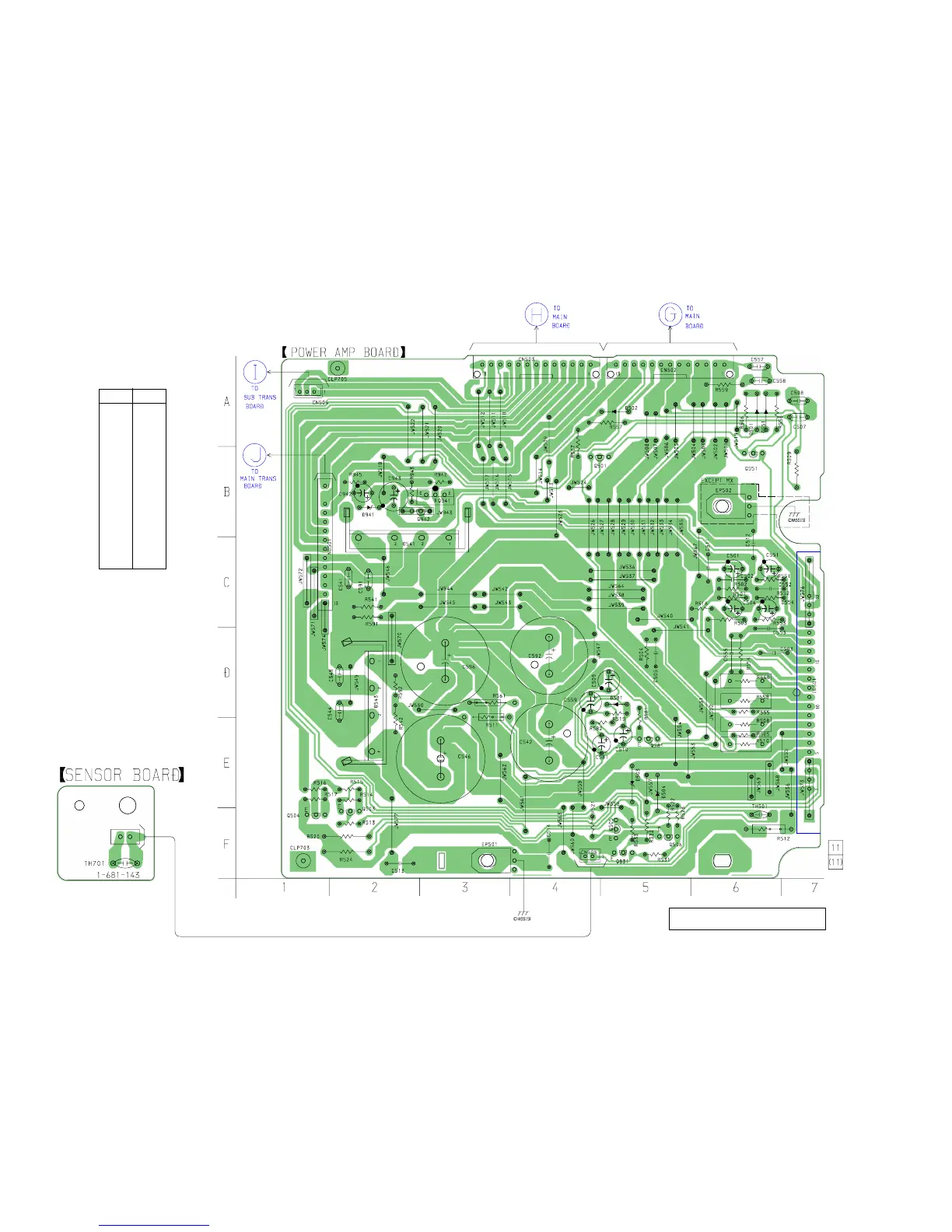

6-12. PRINTED WIRING BOARDS – POWER AMP SECTION – • See page 21 for Circuit Boards Location.
Ref. No. Location
D501 A-6
D502 A-5
D503 E-5
D504 E-5
D541 C-2
D543 D-2
D551 A-6
D581 D-5
D941 B-2
IC501 D-7
Q501 B-4
Q503 F-2
Q504 F-1
Q505 F-5
Q506 F-5
Q551 B-6
Q581 E-5
Q831 F-5
Q941 B-3
• Semiconductor
Location
(Page 42)
(Page 42)
(Page 26)
(Page 26)
There are a few cases that the part isn’t mounted
in model is printed on diagram.
