Sony HCD-DX70 - Chassis Section

53
HCD-DX70

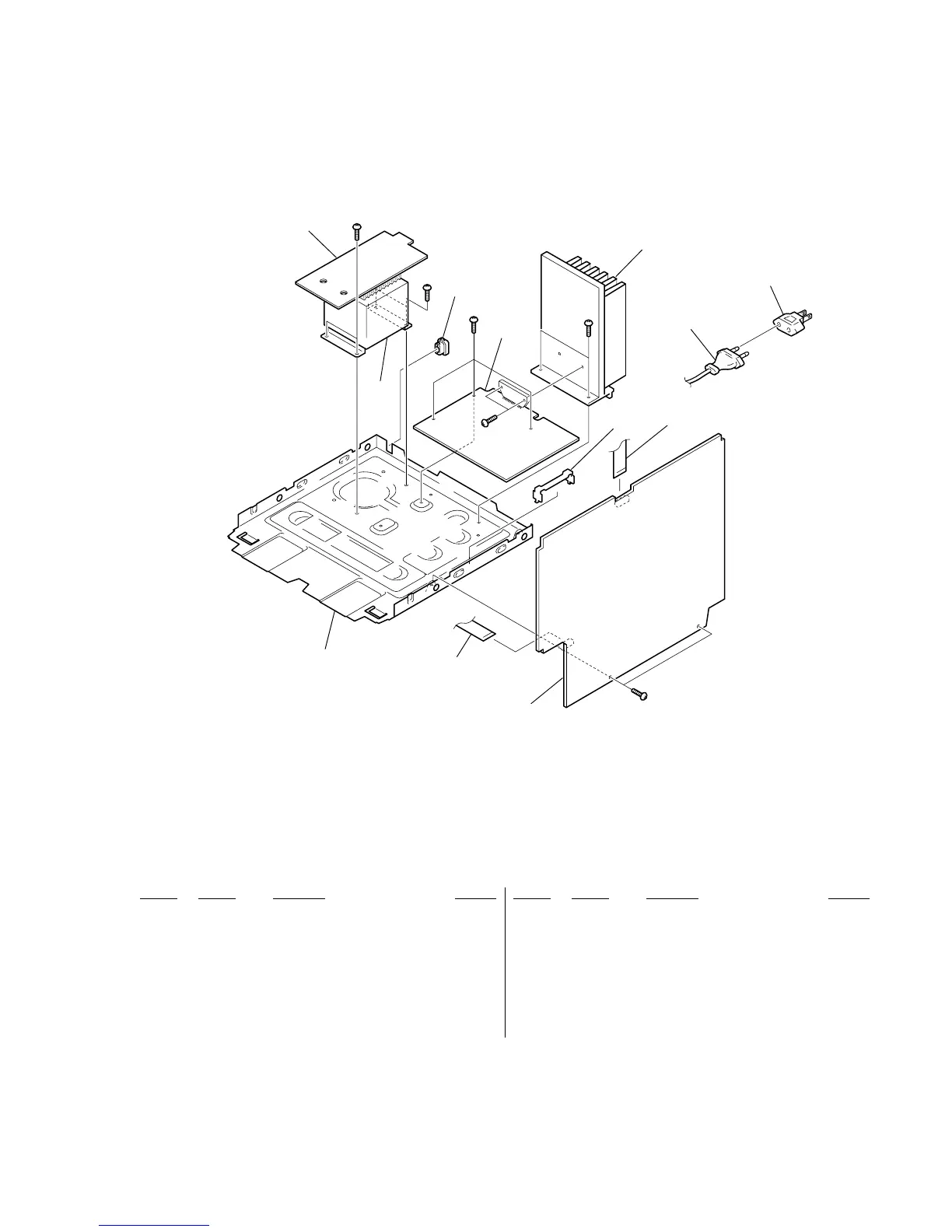

7-3. CHASSIS SECTION
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
not supplied
not supplied
T910
101
102
103
104
105
106
107
108
109
#4
#4
#5
#9
#3
#3
101 A-4475-770-A MAIN MOUNTED PC BOARD (SP)
101 A-4476-272-A MAIN MOUNTED PC BOARD (E,E51)
101 A-4476-284-A MAIN MOUNTED PC BAORD (MX,AR)
102 1-773-045-11 WIRE (FLAT TYPE) (17 CORE)
* 103 4-988-533-01 HOLDER, PWB
104 1-757-683-11 CABLE, FLAT (21 CORE)
105 1-680-265-11 MAIN TRANS BOARD
106 3-703-571-11 BUSHING (S) (4516), CORD (E,MX)
* 106 3-703-244-00 BUSHING (2104), CORD (E51,SP,AR)
107 A-4475-766-A POWER MOUNTED PC BOARD (SP)
107 A-4476-270-A POWER MOUNTED PC BOARD (E,E51,MX,AR)
108 1-777-071-51 CORD, POWER (E51,SP)
108 1-783-941-12 CORD, POWER (AR)
108 1-791-901-11 CORD, POWER (E,MX)
109 1-569-008-21 ADAPTOR, CONVERSION (E51,SP)
