Sony HCD-DX70 - SW Board, Head (A) Board, Head (B) Board; Base Unit

9
HCD-DX70

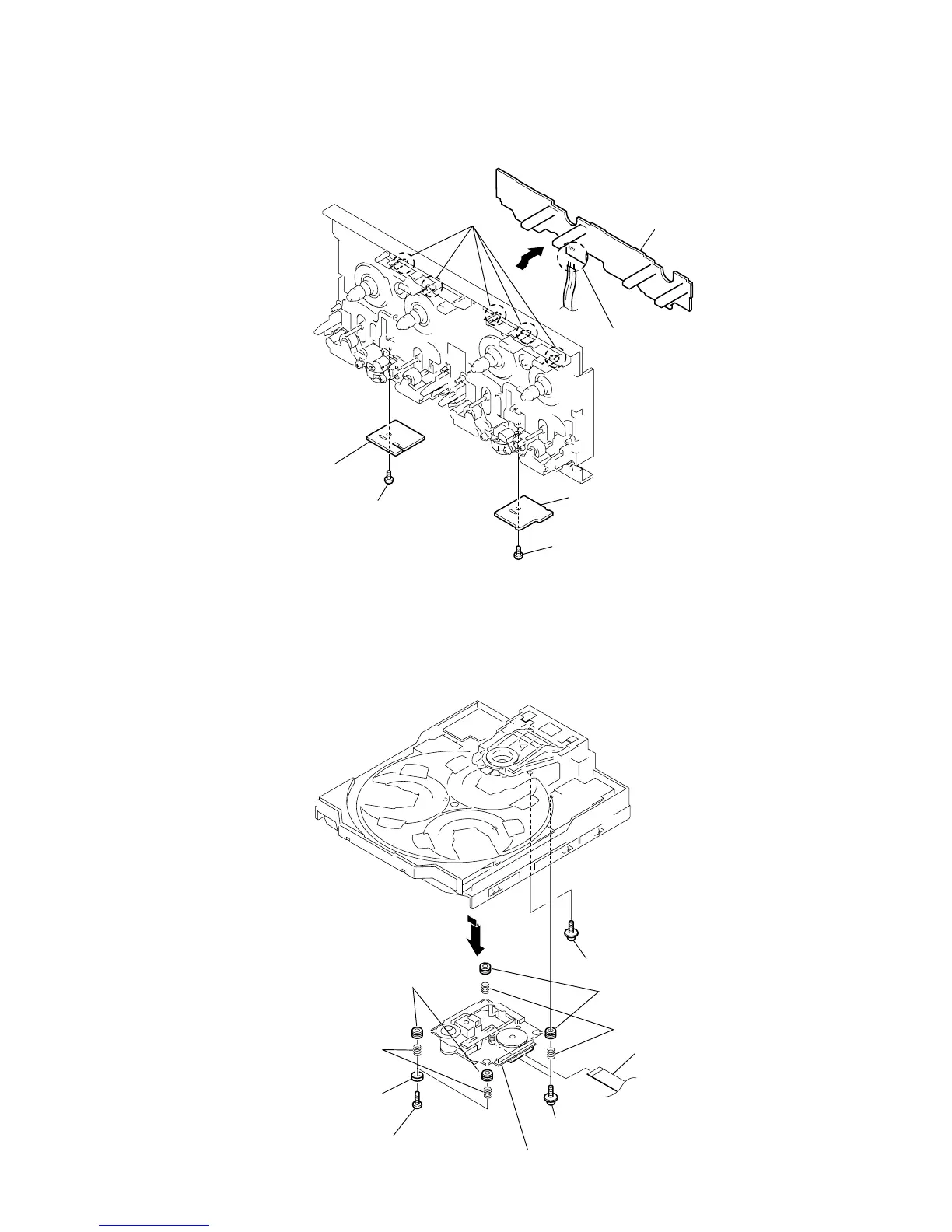

2-8. SW BOARD, HEAD (A) BOARD, HEAD (B) BOARD
2-9. BASE UNIT
4 screw (+PTT 2 × 4),
ground point
4 screw (+PTT 2 × 4),
ground point
2 SW board
1 five claws
5 HEAD (A) board
6 HEAD (B) board
3 Remove the four solderings.
5
3
two screws (+PTPWH M2.6), floating
9 two springs (insulator), coil
7 two springs (insulator),
coil
0 two insulators (BU-30)
qa base unit
8 two insulators
(BU-30)
6 two stoppers (BU)
2 screw (DIA. 12), floating
1 flat type wire (CN101)
4 two screws
(+BVTP 2.6
× 8)
