Sony HCD-DX70 - SECTION 1 GENERAL; Location of Parts and Controls

4
HCD-DX70
Location of Parts and Controls
1 @/1 (POWER) button and indicator
2 DISC 1 button and indicator
3 DISC 2 button and indicator
4 DISC 3 button and indicator
5 DISC SKIP EX-CHANGE button
6 CD (OPEN) button
7 CD button and indicator
8 TUNER/BAND button and indicator
9 TAPE A/B button and indicator
q; MD (VIDEO) button and indicator
qa VOLUME knob
qs PHONES jack
qd MIC jack
qf MIC LEVEL knob
qg GAME INPUT (VIDEO, AUDIO L/R) jack
qh GAME button and indicator
qj DISPLAY button
qk SPECTRUM button
ql EDIT (DIRECTION) button
w; REPEAT (FM MODE/DOLBY NR) button
wa PLAY MODE (TUNER MEMORY) button
SECTION 1
GENERAL

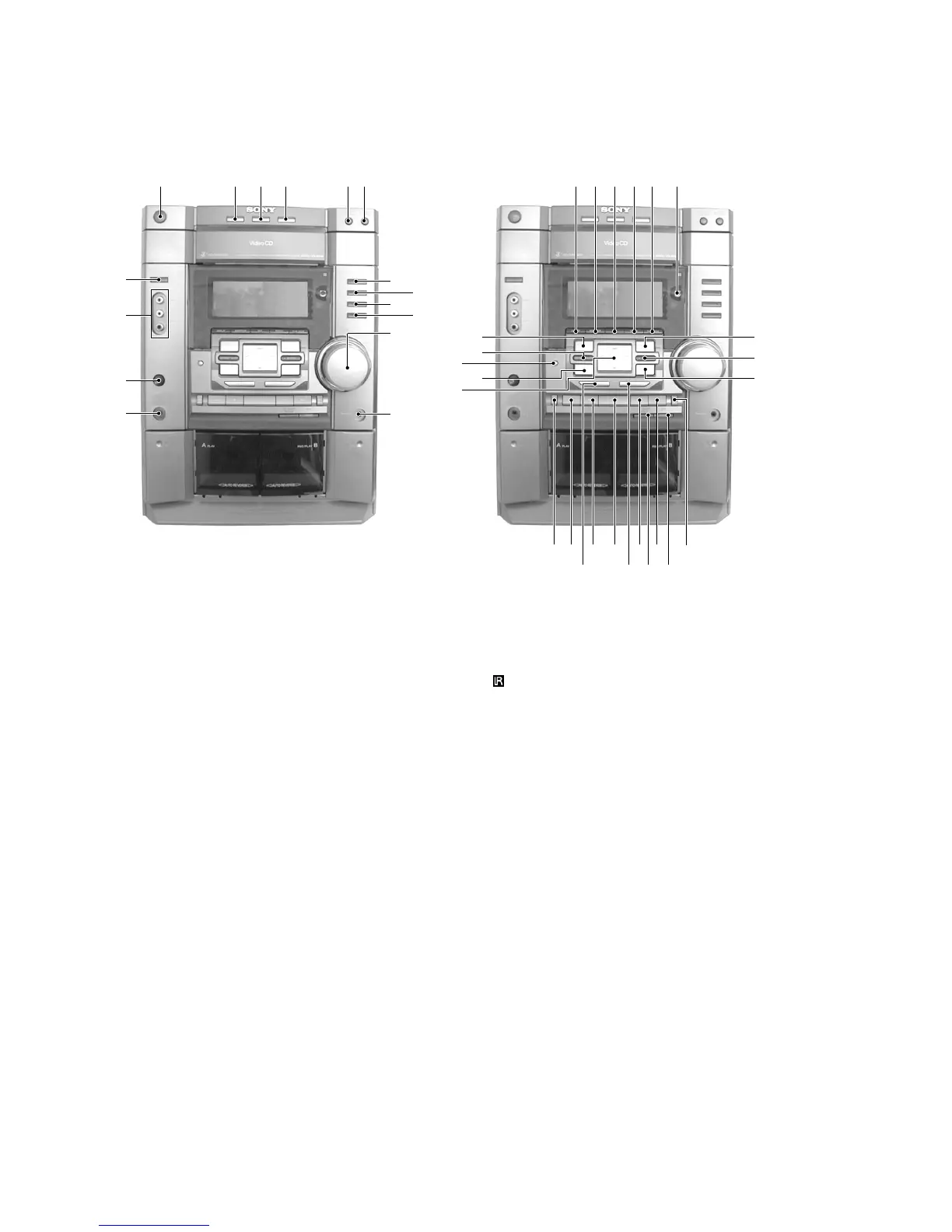

Front Panel
qj qk ql w; wa ws
1 2 3 4 56
7
9
qa
qs
8
q;
qh
qf
qd
qg
eheg ed es e;wk wh
wjef ea wl
el
r;
ej
ek
ra
wf
wg
wd
ws Remote sensor
wd MOVIE EQ button
wf ENTER button and indicator
wg P FILE button
wh M/+ button
wj REC PAUSE/START button and indicator
wk > button
wl CD SYNC HI-DUB button
e; X button
ea SURROUND button
es bB button
ed x button
ef GROOVE button
eg . button
eh m/– button
ej b/v/B/V button
ek GAME EQ button
el KARAOKE PON button
r; EFFECT ON/OFF button
ra MUSIC EQ button
