Sony HCD-DX70 - 2-7. MAIN BOARD, POWER BOARD

8
HCD-DX70
2-6. MAIN TRANS BOARD

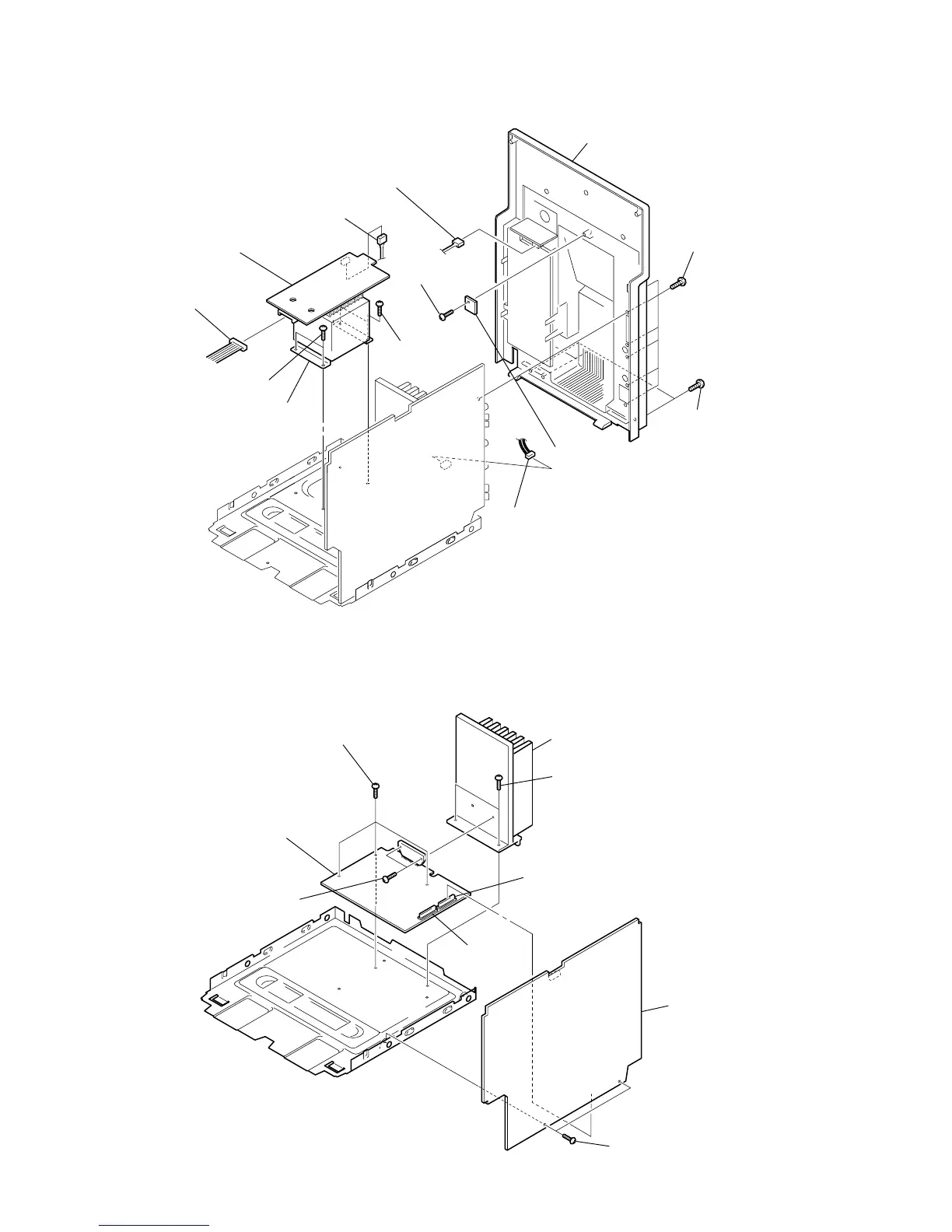

2-7. MAIN BOARD, POWER BOARD
qa two screws
(+BVTT 4
× 8)
8 six screws
(+BVTP 3
× 10)
7 three screws
(+BVTP 3
× 10)
9 panel, back
0 two screws (+BVTT 4 × 8)
qd TRANS board
qs trans
5 connector (CN973)
2 SENSOR board
6 connector (CN977)
3 connector (CN891)
4 connector (CN403)
1 screw
(+BVTP 3
× 10)
4 three screws (+BVTP 3 × 10)
6 two screws (+BVTT 3 × 8)
7 heat sink
3 two screws (+BVTP 3 × 16)
1 two screws (+BVTP 3 × 10)
2 MAIN board
connector(CN502)
connector
(CN503)
5 POWER board
