Sony HCD-DX8 - PRINTED WIRING BOARD - MAIN SECTION

HCD-DX8
26
26

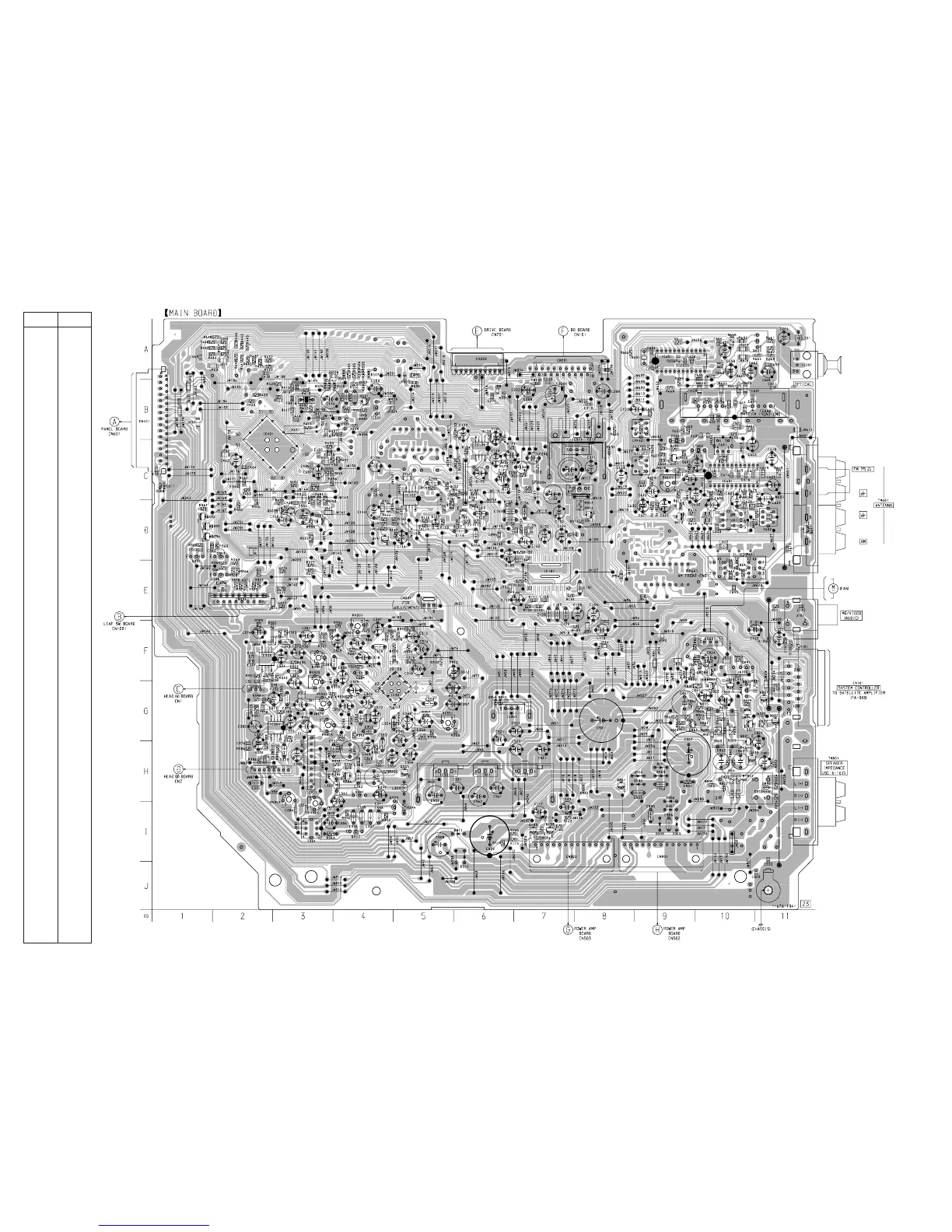

7-5. PRINTED WIRING BOARD – MAIN SECTION – • See page 21 for Circuit Boards Location.
Ref. No. Location
D501 B-4
D502 B-4
D503 A-4
D504 B-3
D505 A-4
D506 A-4
D508 C-1
D511 C-1
D601 C-9
D641 D-11
D651 C-8
D801 H-10
D822 F-10
D824 F-9
D841 G-10
D861 H-8
D891 H-11
D892 H-11
D901 H-9
D902 H-9
D903 H-9
D904 H-9
D906 H-9
D907 I-9
D908 I-9
D909 I-9
D910 I-6
D911 I-6
D952 G-6
D953 G-6
IC101 E-7
IC102 C-5
IC104 C-6
IC201 A-11
IC301 G-5
IC302 H-3
IC303 F-2
IC304 G-3
IC401 B-2
IC501 B-4
IC601 C-10
IC651 A-9
IC911 C-8
IC921 H-7
IC931 H-5
IC951 G-6
IC961 H-6
Q101 D-6
Q102 D-5
Q103 I-7
Q141 D-4
Q151 D-6
Q152 C-5
Q153 I-7
Q301 H-4
Q302 I-4
Q303 I-5
Q304 H-4
Q305 H-5
Q391 D-1
Q392 D-1
Q393 D-2
Q394 D-1
Q395 E-2
Q396 E-2
Q397 D-1
Q501 B-4
Q503 D-3
Q504 D-3
Q505 D-3
Q601 C-9
Q602 A-11
Q611 D-9
Q612 D-9
Q821 H-10
Q822 H-10
Q823 G-10
Q824 G-10
Q825 G-10
Q828 F-10
Q829 G-10
Q831 G-11
Q832 G-11
Q861 H-8
Q862 G-10
Q863 G-9
Q891 F-10
Q892 G-10
Q911 C-8
Q912 D-8
• Semiconductor
Location
(Page 32)
(Page 34)
(Page 34)
(Page 34)
(Page 30) (Page 30)
(Page 36) (Page 24)
