HCD-DX8
3131

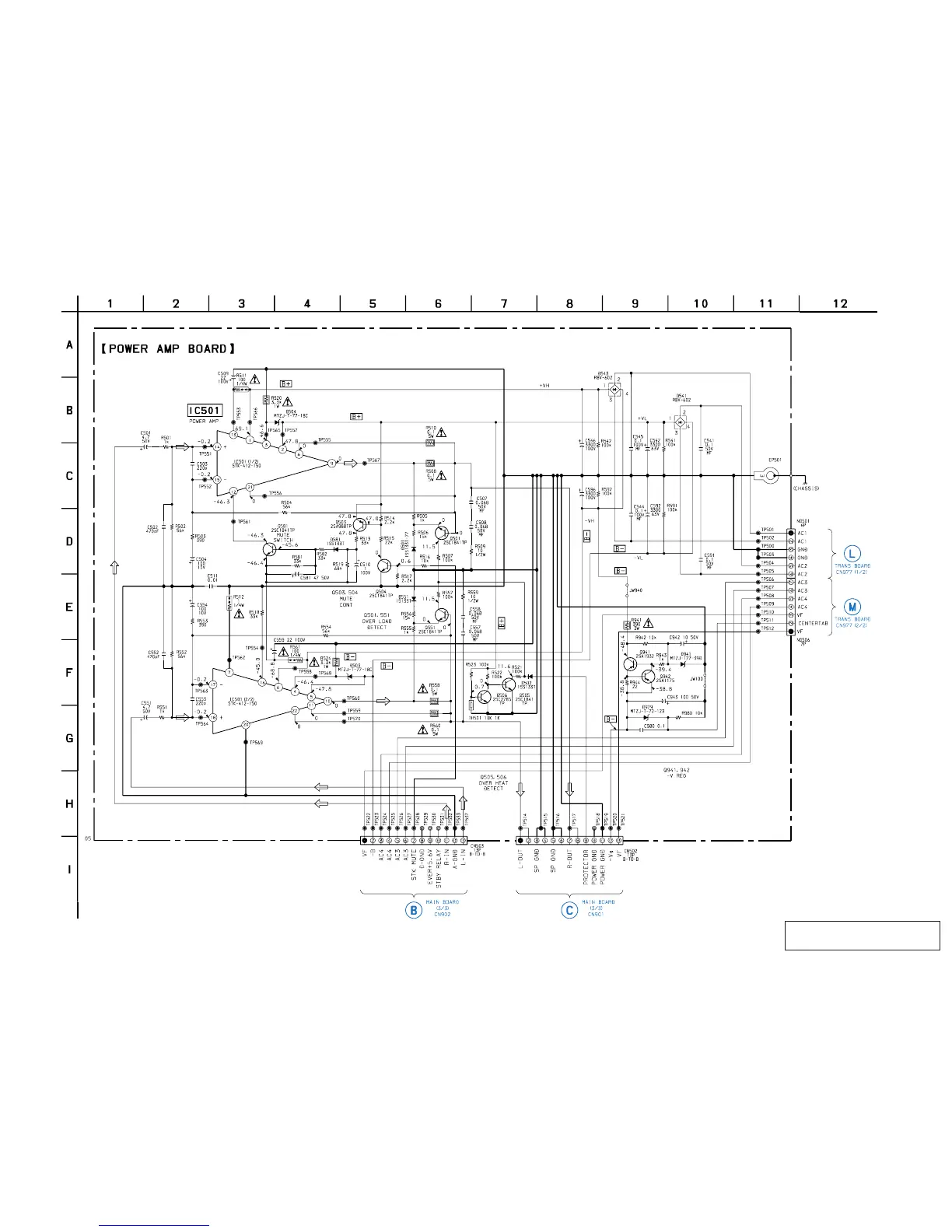

7-10. SCHEMATIC DIAGRAM – POWER AMP SECTION –
• Voltages and waveforms are dc with respect to ground
under no-signal conditions.
no mark : CD STOP
The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.
(Page 29)
(Page 29)
(Page 39)
(Page 39)
To Next Page
