Sony HCD-DX8 - SCHEMATIC DIAGRAM - MAIN (1;3) SECTION

HCD-DX8
2727

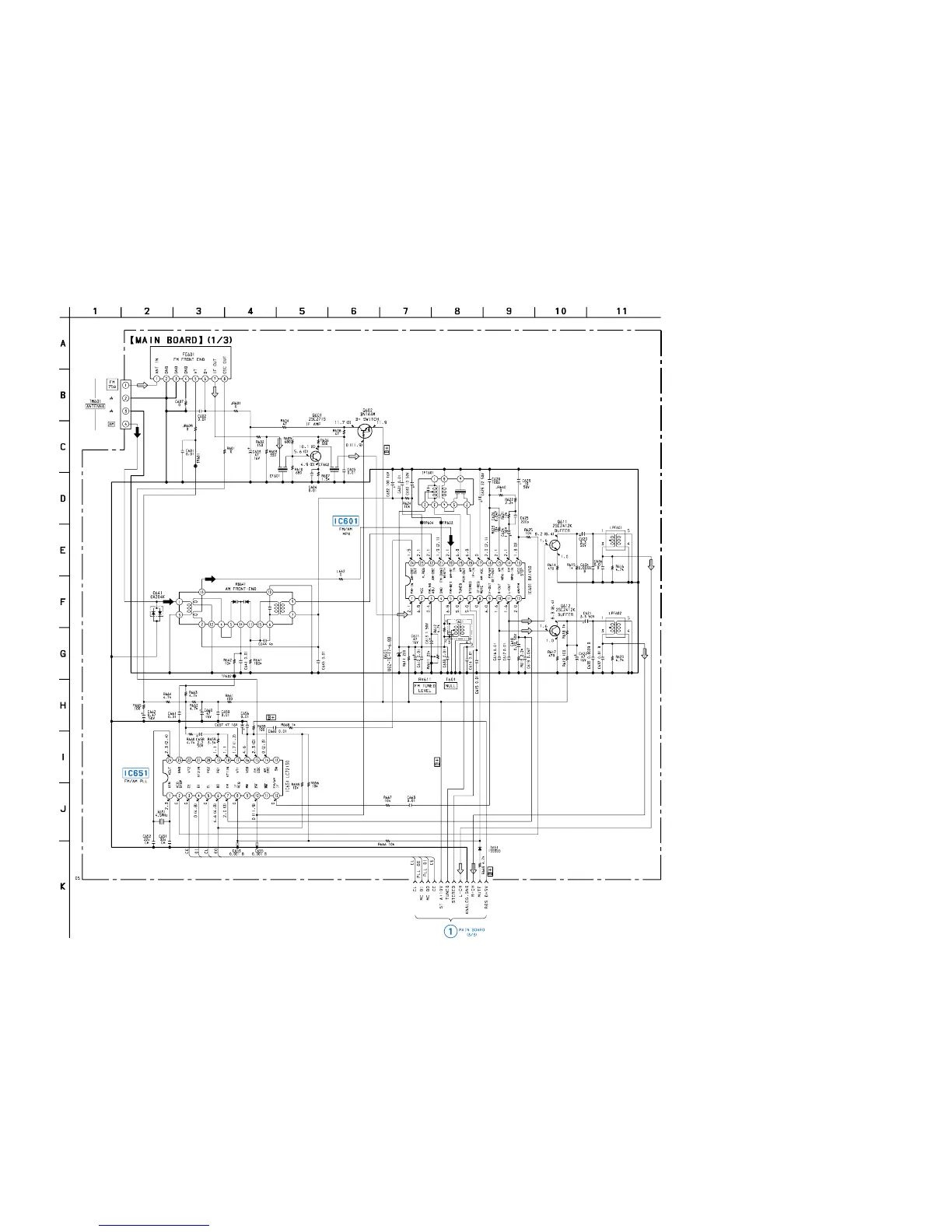

7-6. SCHEMATIC DIAGRAM – MAIN (1/3) SECTION –
• See page 42 for IC Block Diagrams.
• Voltages and waveforms are dc with respect to ground
under no-signal (detuned) conditions.
no mark : FM
( ) : AM
(Page 29)
