Sony HCD-DX8 - SCHEMATIC DIAGRAM - MAIN (3;3) SECTION

HCD-DX8
2929

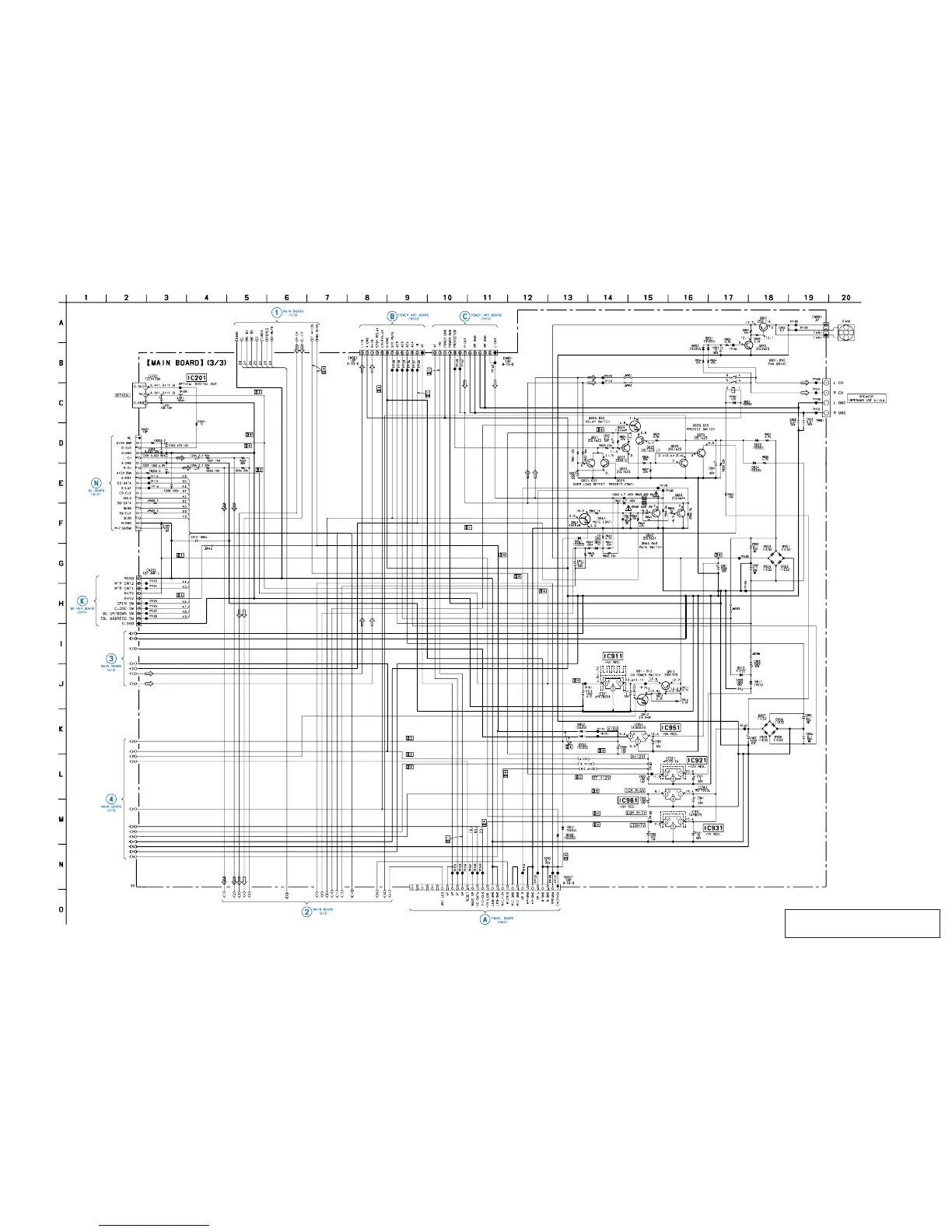

7-8. SCHEMATIC DIAGRAM – MAIN (3/3) SECTION –
• Voltages and waveforms are dc with respect to ground
under no-signal conditions.
no mark : CD STOP
( ) : REC
< > : TAPE PB
The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.
(Page 25)
(Page 37)
(Page 28)
(Page 28)
(Page 28)
(Page 33)
(Page 27)
(Page 31) (Page 31)
