Sony HCD-DX8 - PRINTED WIRING BOARD - TRANS SECTION

Sony HCD-DX8
66 pages
Save Page as PDF
Print Icon
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Loading...
HCD-DX8
38
38

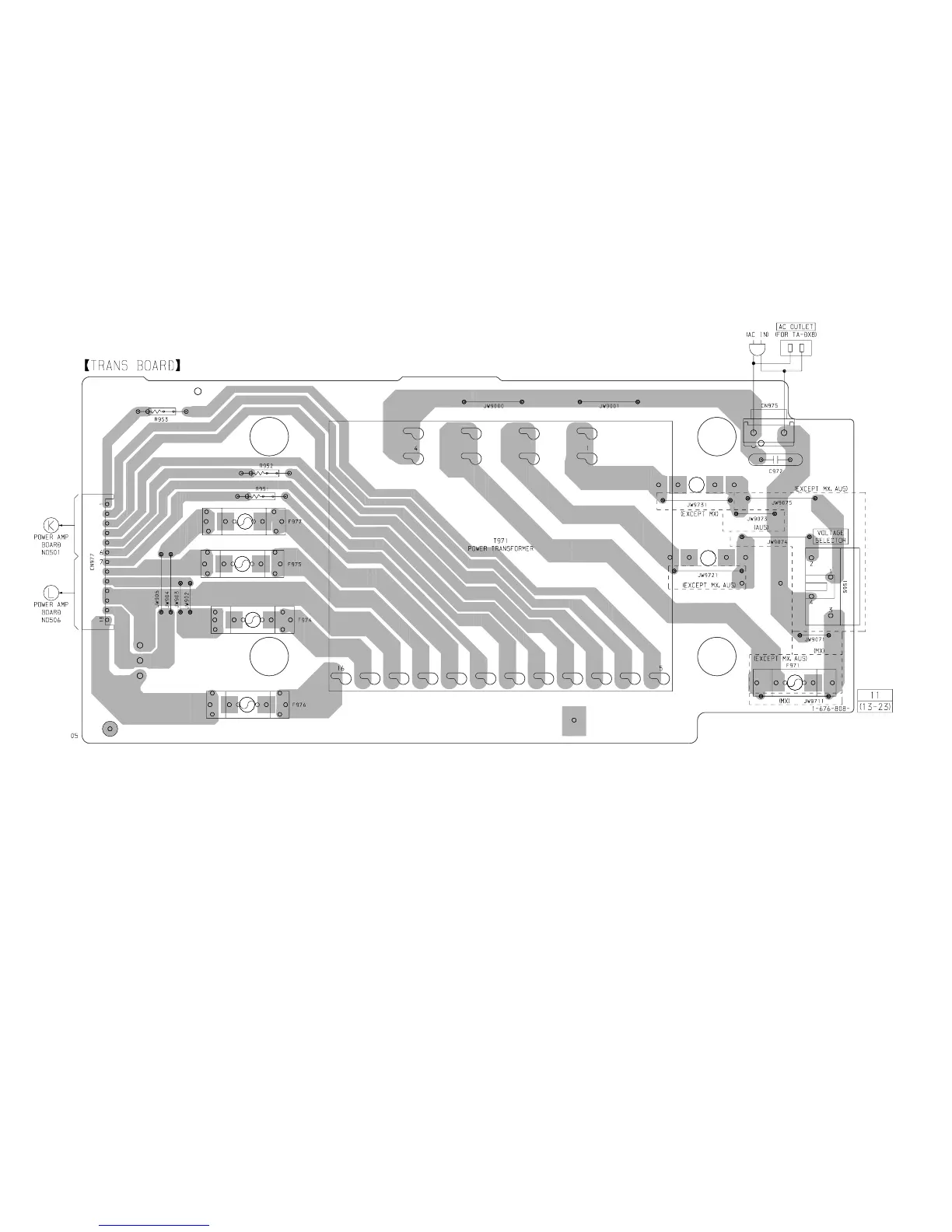

7-17. PRINTED WIRING BOARD – TRANS SECTION – • See page 21 for Circuit Boards Location.
(Page 30)
(Page 30)
