Sony HCD-DX8 - PRINTED WIRING BOARD - POWER AMP SECTION

HCD-DX8
30
30

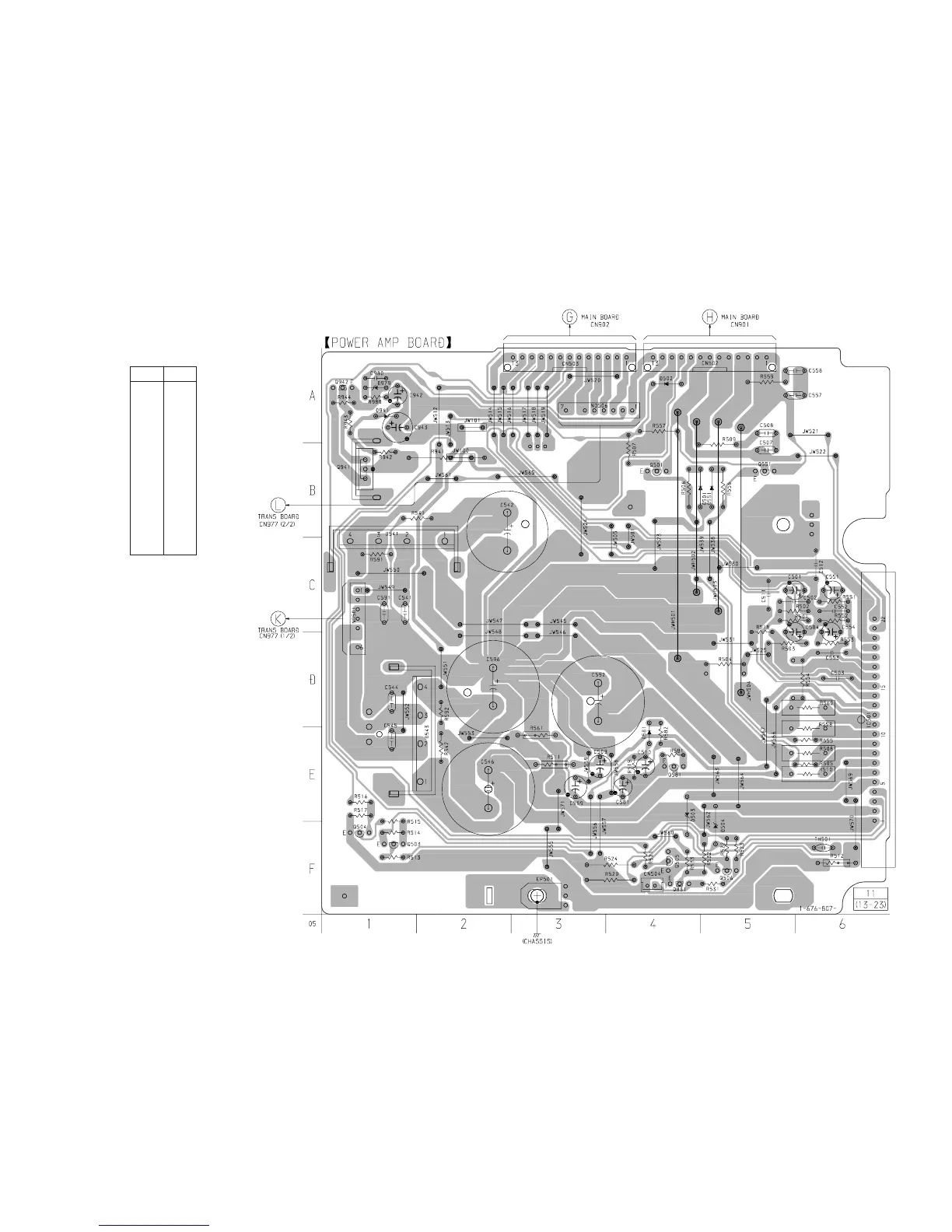

7-9. PRINTED WIRING BOARD – POWER AMP SECTION –
• See page 21 for Circuit Boards Location.
Ref. No. Location
D501 B-5
D502 A-4
D503 E-4
D504 F-5
D541 C-1
D543 E-2
D551 B-5
D581 E-4
D941 A-1
D979 A-1
IC501 D-6
Q501 B-4
Q503 F-1
Q504 F-1
Q505 F-4
Q506 F-5
Q551 B-5
Q581 E-4
Q941 B-1
Q942 A-1
• Semiconductor
Location
(Page 38)
(Page 38)
(Page 26) (Page 26)
