46

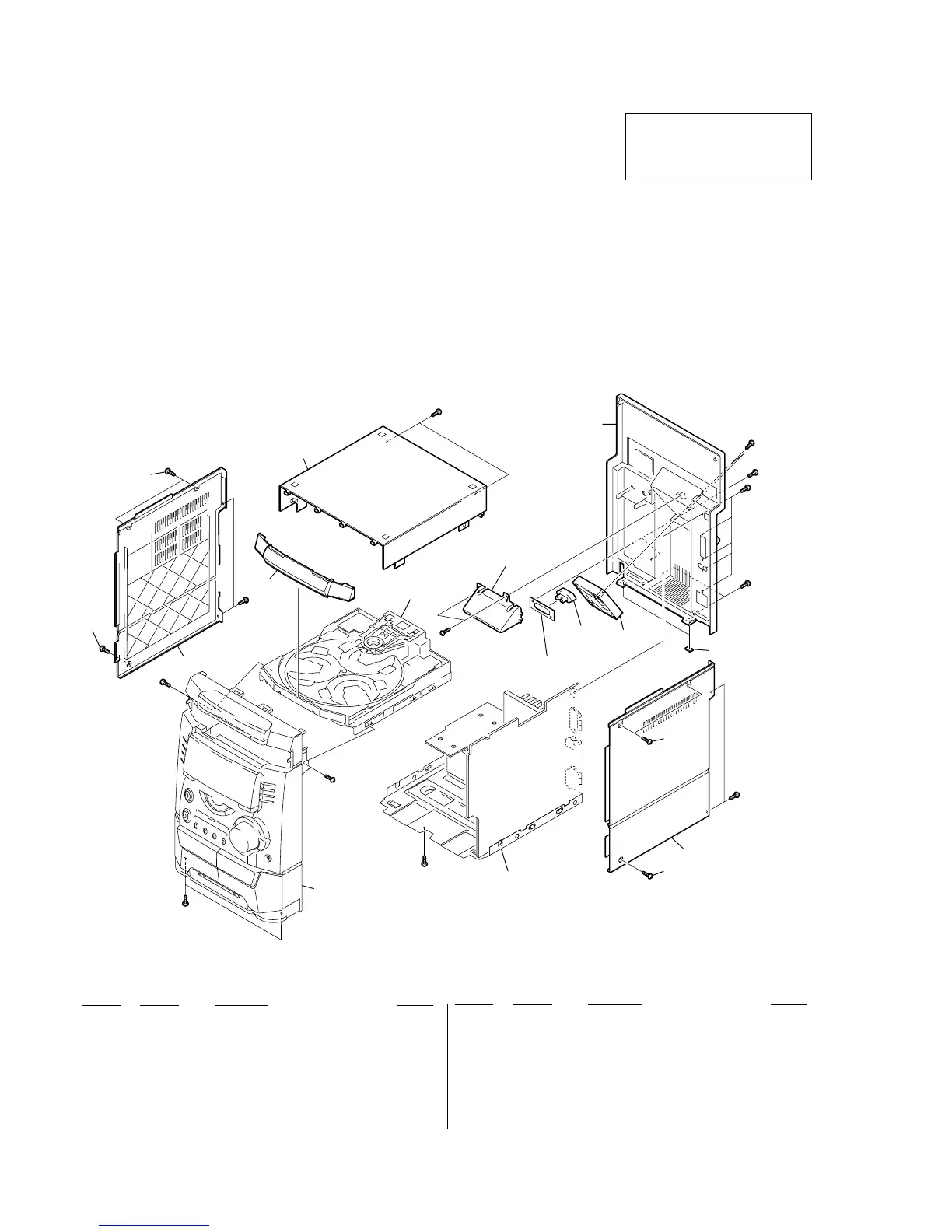

(1) COVER SECTION
SECTION 8
EXPLODED VIEWS
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference num-
ber in the exploded views are not supplied.
• Hardware (# mark) list and accessories and
packing materials are given in the last of the
electrical parts list.
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
1 3-363-099-01 SCREW (CASE 3 TP2)
2 3-363-099-41 SCREW (CASE 3 TP2)
3 4-225-038-21 SIDE PANEL L
4 X-4952-776-1 LOADING PANEL ASSY
(E2, EA, MY, SP, MX, AR, AUS)
4 X-4952-777-1 LOADING PANEL ASSY (E3)
5 4-225-039-21 SIDE PANEL R
6 4-224-550-41 CASE (TOP)
8 4-225-040-31 BACK PANEL (E2, E3, EA, MY, SP, AR)
8 4-225-040-41 BACK PANEL (MX, AUS)
9 4-225-252-01 CUSHION (FOOT)
0 10 1-526-794-11 OUTLET, AC
M961 1-763-072-11 FAN, D.C.
• Abbreviation
AR : Argentine model
AUS : Australian model
E2 : 120 V AC Area in E model
E3 : 240 V AC Area in E model
EA : Saudi Arabia model
MX : Mexican model
MY : Malaysia model
SP : Singapore model
CD mechanism deck
(CDM58-K2BD38)
#5
#3
#3
#3
#3
#3
#3
#3
#5
#5
4
3
5
1
1
2
2
6
Front panel section
Chassis section
#3
M961
9
8
not supplied
#
To Next Page
