Sony HCD-DX8 - FRONT PANEL SECTION

47
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark

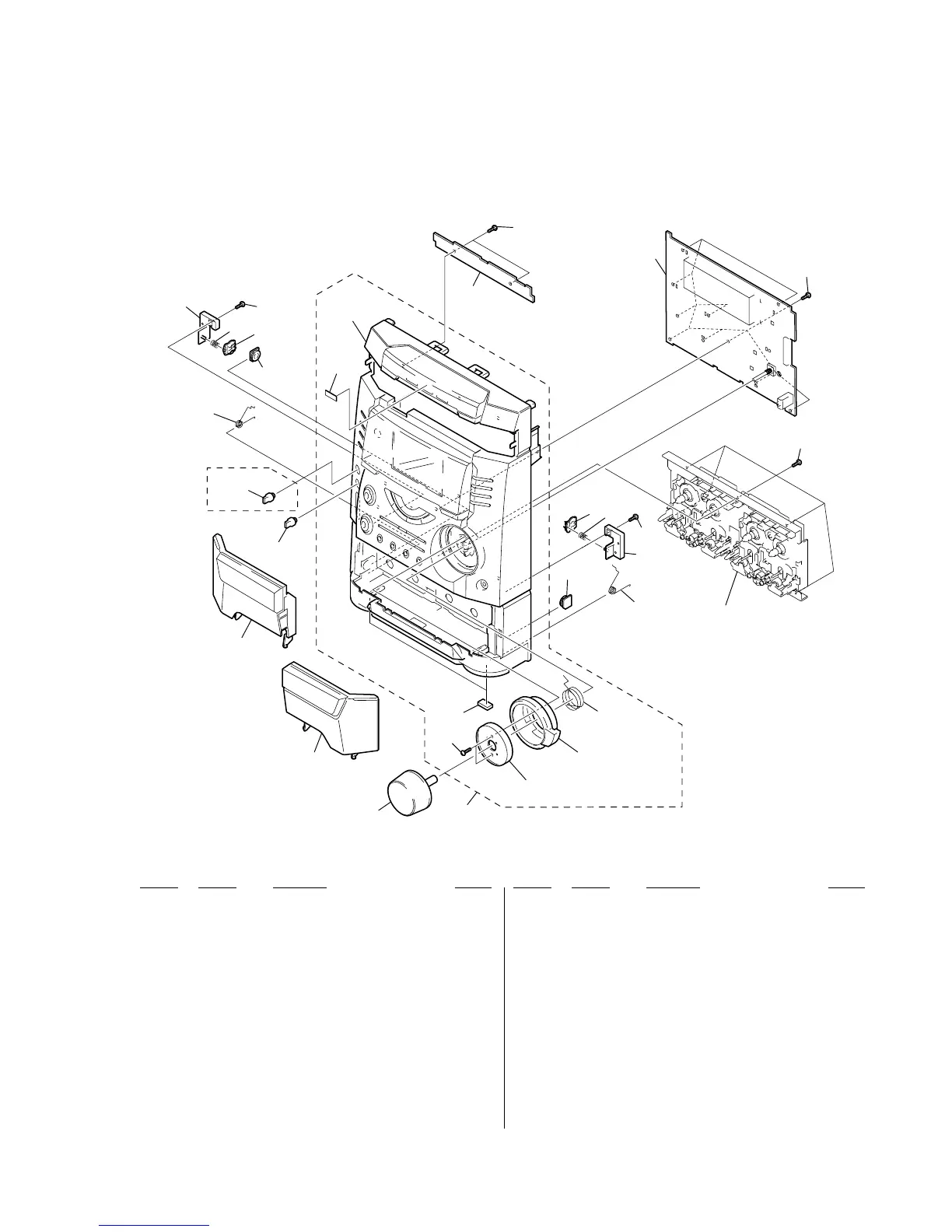

(2) FRONT PANEL SECTION
51 X-4952-790-1 TC HOLDER (L) ASSY (E3)
51 X-4953-019-1 TC HOLDER (L) ASSY
(E2, EA, MY, SP, MX, AR, AUS)
52 X-4952-729-1 TC HOLDER (R) ASSY
(E2, EA, MY, SP, MX, AR, AUS)
52 X-4952-793-1 TC HOLDER (R) ASSY (E3)
53 4-225-032-01 VOL KNOB
54 A-4428-077-A CD SWITCH BOARD, COMPLETE
55 4-962-708-71 EMBLEM (4-A), SONY
56 4-225-033-01 FR KNOB
57 X-4952-667-1 FRONT PANEL ASSY (E3)
57 X-4952-668-1 FRONT PANEL ASSY
(E2, EA, MY, SP, MX, AR, AUS)
58 4-224-562-01 BRACKET (HEART CAM L)
59 4-224-803-01 SPRING (PUSH), COMPRESSION COIL
60 4-224-104-11 DAMPER
61 4-224-560-01 CAM (L), HEART
62 4-224-559-01 CAM (R), HEART
63 4-224-561-01 BRACKET (HEART CAM R)
64 4-225-053-01 SPRING R
66 A-4473-082-A PANEL BOARD, COMPLETE (EXCEPT EA)
66 A-4473-084-A PANEL BOARD, COMPLETE (EA)
67 4-951-620-01 SCREW (2.6X8), +BVTP
68 4-224-578-01 KNOB (MIC)
69 4-225-052-01 SPRING L
70 4-225-252-01 CUSHION (FOOT)
71 4-225-054-01 SPRING FR
51
52
53
56
71
69
58
57
70
59
59
63
64
66
54
55
* 67
67
67
67
61
60
60
62
* For service only
(Be sure to refer to "Service note" on page 4.
)
Tape mechanism deck
(TCM-230AWR11)
68
68
67
67
not
supplied
not supplied
EA
