Sony HCD-DX8 - CHASSIS SECTION

48

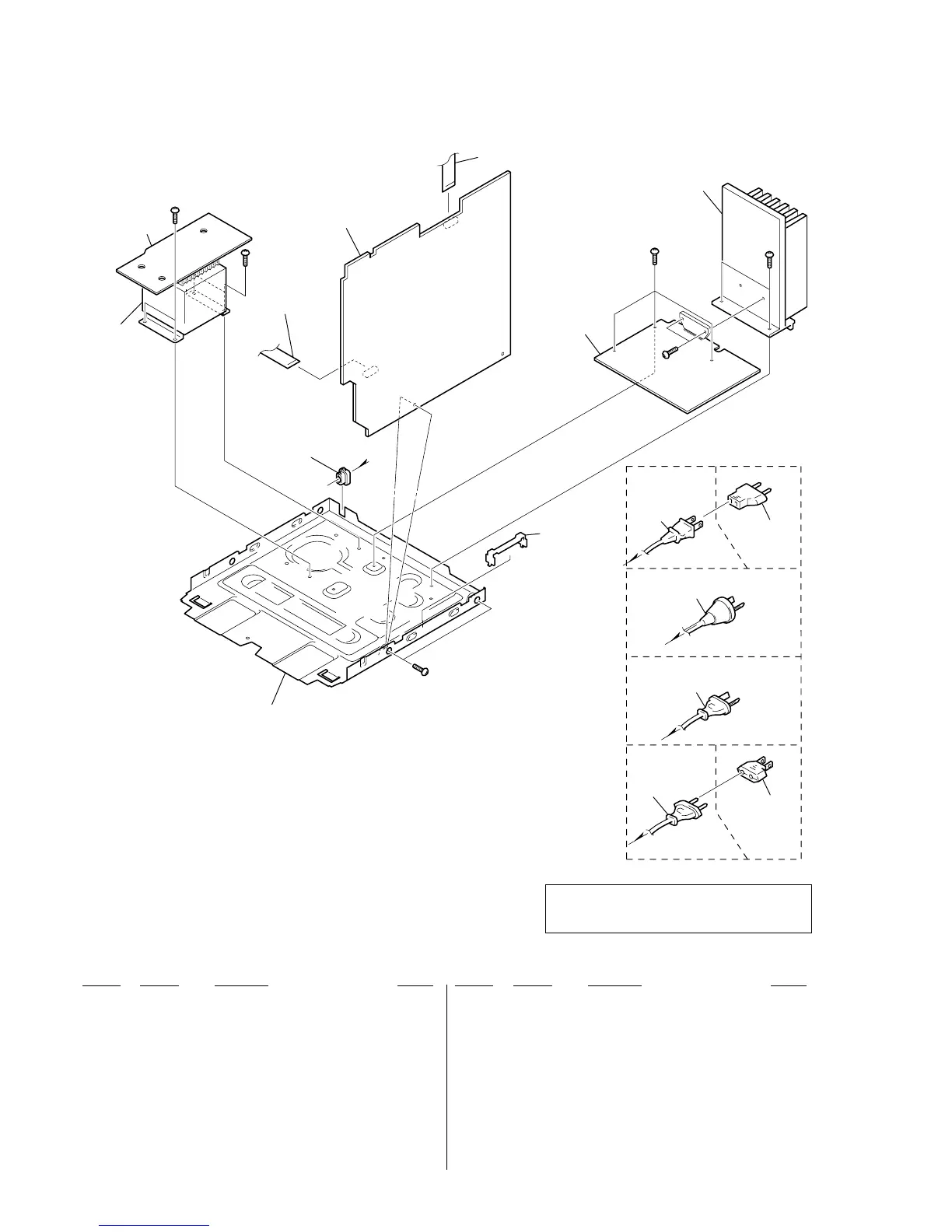

(3) CHASSIS SECTION
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
101 1-773-045-11 WIRE (FLAT TYPE) (17 CORE)
102 A-4428-487-A MAIN BOARD, COMPLETE (E3, MY, SP, AUS)
102 A-4473-085-A MAIN BOARD, COMPLETE (EA)
102 A-4473-094-A MAIN BOARD, COMPLETE (E2)
102 A-4473-097-A MAIN BOARD, COMPLETE (MX, AR)
* 103 4-988-533-01 HOLDER, PWB
104 1-773-122-11 WIRE (FLAT TYPE) (19 CORE)
105 1-676-808-11 TRANS BOARD
* 106 3-703-244-00 BUSHING (2104), CORD
(E3, EA, MY, SP, AR, AUS)
106 3-703-571-11 BUSHING (S) (4516), CORD (E2, MX)
107 A-4428-483-A POWER AMP BOARD, COMPLETE
0 108 1-575-653-11 CORD, POWER (E3)
0 108 1-696-847-11 CORD, POWER (AUS)
0 108 1-777-071-21 CORD, POWER (MY, SP)
0 108 1-777-071-51 CORD, POWER (EA)
0 108 1-783-941-11 CORD, POWER (MX, AR)
0 108 1-791-901-11 CORD, POWER (E2)
0 109 1-569-007-11 ADAPTOR, CONVERSION 2P (E3)
0 109 1-569-008-21 ADAPTOR, CONVERSION (EA, MY, SP)
0 T971 1-435-325-11 POWER TRANSFORMER
AUS
EA, MY, SP
EA, MY,
SP
E2, E3
#3
#3
#4
#6
#2
#6
109
E3
109
108
103
107
106
101
102
104
105
not supplied
not supplied
T971
108
108
108
AR, MX
The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.
