Sony HCD-DZ100K - FL Board; KEY Board, STBY Board

10
HCD-DZ100K/DZ500KF

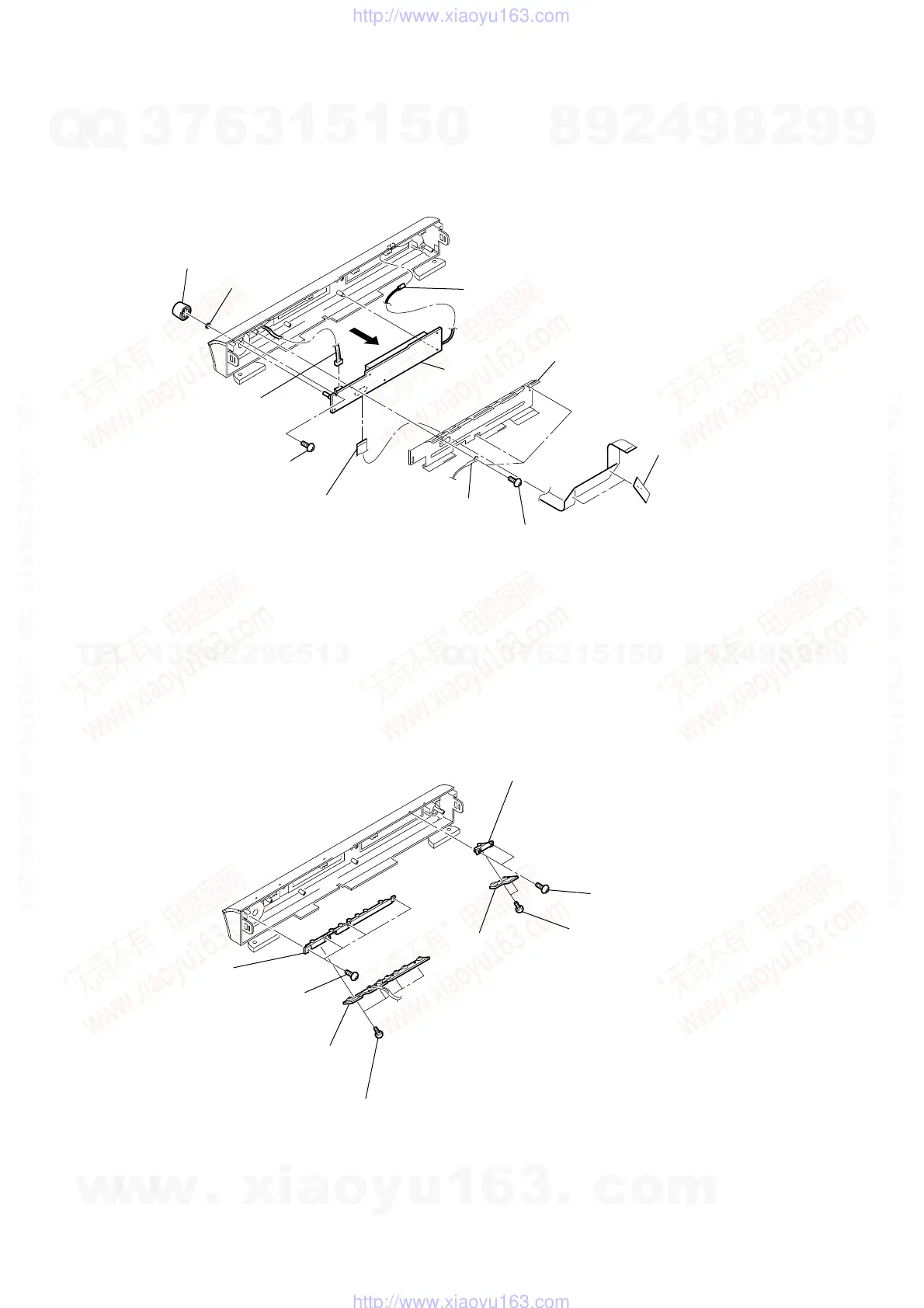

3-4. KEY BOARD, STBY BOARD
3-3. FL BOARD
5 shield (front)
qa FL board
1 knob (vol)
2 nut
7
6
t apping screw
(DIA.2.6
× 8)
4 three t apping screws
(DIA.2.6
× 8)
3 two sheets
8 wire (flat type)
19p(CN801)
9 connector
4p(CN805)
q; connector
2p(CN804)
earth line
7 STBY board
2 four tapping screws
(DIA.2.6
× 8)
6 two tapping screws
(DIA.2.6
× 8)
5 two tapping screws
(DIA.2.6
× 8)
1 four tapping screws
(DIA.2.6
× 8)
4 button (play)
8 button (power)
3 KEY board
