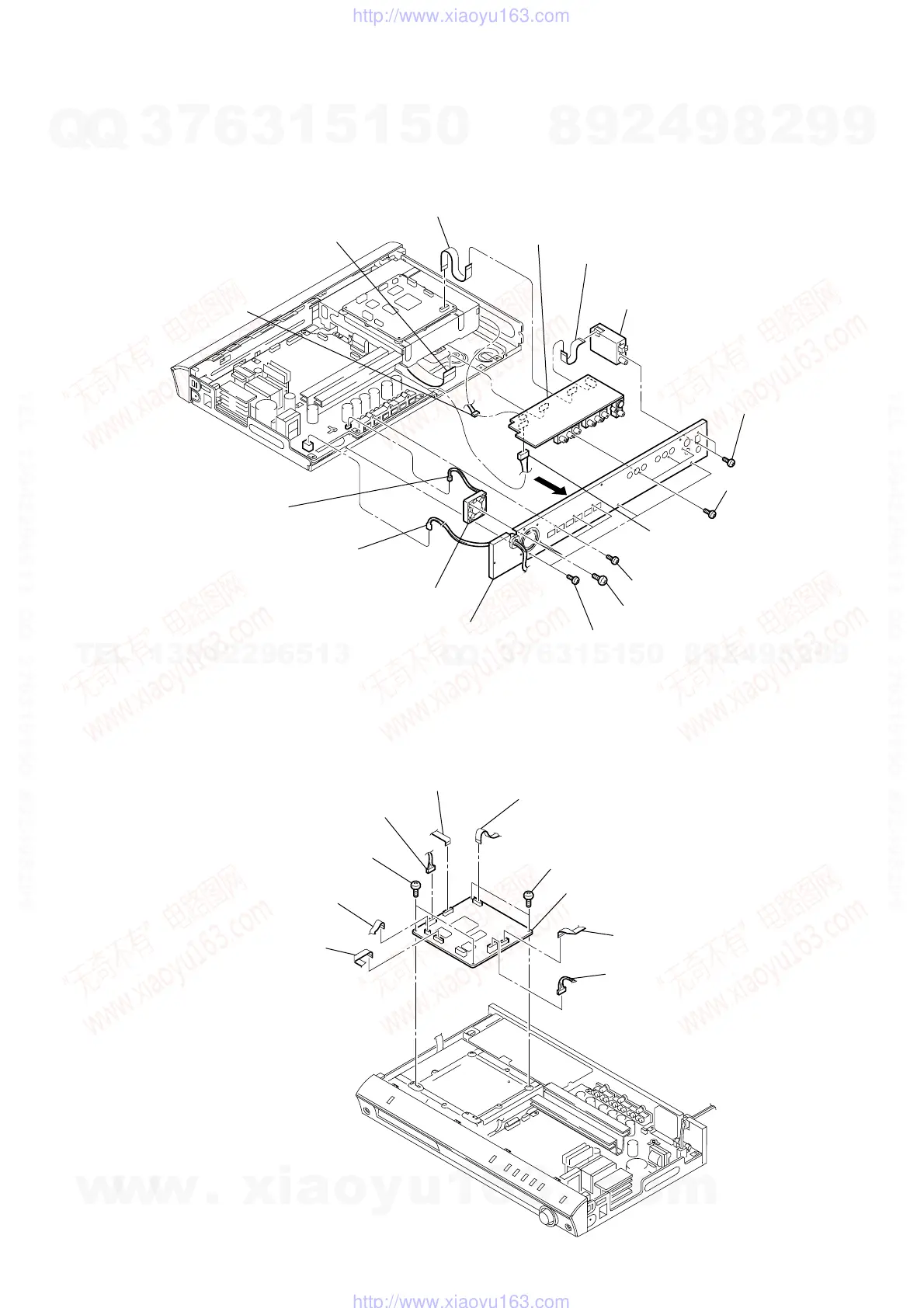

HCD-DZ100K/DZ500KF
3-5. I/O BOARD, DC FAN
3-6. DMB10 BOARD
2 connector
(CN300)
9 connector
(CN300)
1 connector
(CN901)
8 connector
(CN603)
qa DC fan
qj back panel
6
qf
tuner unit
qh I/O board
3 wire (flat type)
13p(CN4802)
qs wire (flat type)
11p(CN101)
7 wire (flat type)
23p(CN601)
4 three screws (+BV 3)
qg three screws (+BV 3
)
5 three screws (+BV 3)
qd two screws (+BV 3)
q; two screws (BVTT 4 × 8)
0 DMB10 board
3 connector
(CN201)
7 connector
(CN401)
4 wire (flat type)
24p(CN101)
5 wire (flat type)
13p(CN301)
6 wire (flat type)
11p(CN4501)
1 wire (flat type)
11p(CN106)
2 wire (flat type)
5p(CN202)
8 two screws (+BV 3)
9 two screws (+BV 3)
