HCD-DZ100K/DZ500KF
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

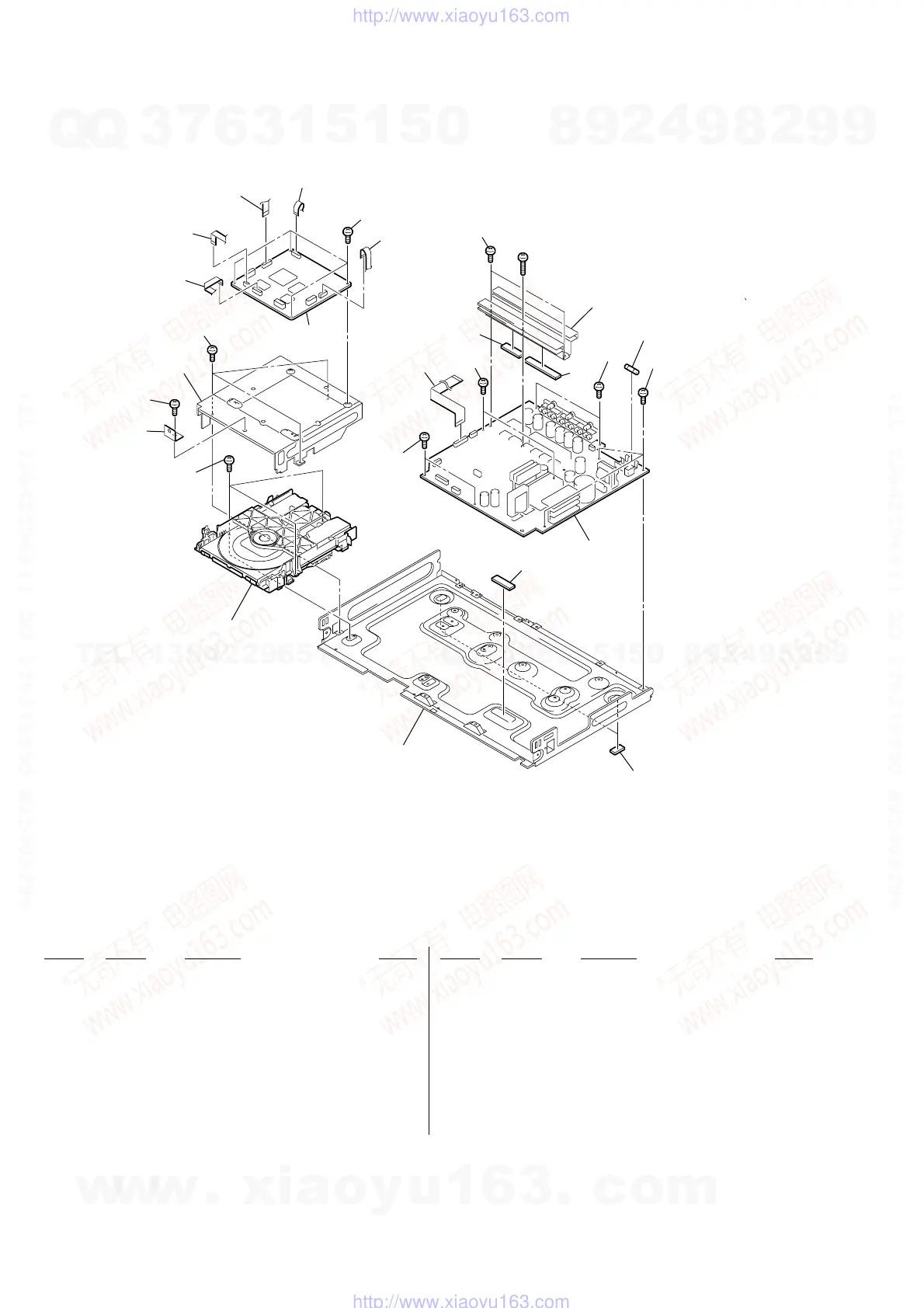

6-3. CHASSIS SECTION
101
101
101
111
103
110
115
104
112
113
114
105
106
103
101
103
103
103
107
109
108
102
not supplied
not supplied
not
supplied
F901
#3
DVD mechanism
deck section
101 3-077-331-01 +BV3 (3-CR)
102 4-254-947-11 SHEET (AMP), RADIATION
103 3-077-331-21 +BV3 (3-CR)
104 A-1139-088-A DMB10 BOARD, COMPLETE
105 1-830-550-11 WIRE (FLAT TYPE) (24 CORE)
106 1-830-546-11 WIRE (FLAT TYPE) (11 CORE) (80mm)
107 A-1133-098-A MAIN BOARD, COMPLETE (DZ100K)
107 A-1133-241-A MAIN BOARD, COMPLETE (DZ500KF)
108 4-254-954-01 SHEET (DMB), RADIATION
109 4-232-478-41 FOOT
110 1-830-464-11 WIRE (FLAT TYPE) (23 CORE)
* 111 3-233-819-01 BRACKET (PWB)
112 1-830-549-11 WIRE (FLAT TYPE) (5 CORE)
113 1-830-545-11 WIRE (FLAT TYPE) (11 CORE) (200mm)
114 1-830-548-11 WIRE (FLAT TYPE) (13 CORE)
115 4-254-947-01 SHEET (AMP), RADIATION (DZ500KF)
0 F901 1-532-506-33 FUSE (T6.3AL/250V)
#3 7-685-648-79 SCREW +BVTP 3X12 TYPE2 IT-3
