64
HCD-DZ100K/DZ500KF
SECTION 6
EXPLODED VIEWS
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Items marked “*” are not stocked since they
are seldom required for routine service.
Some delay should be anticipated when
ordering these items.
• The mechanical parts with no reference
number in the exploded views are not supplied.
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

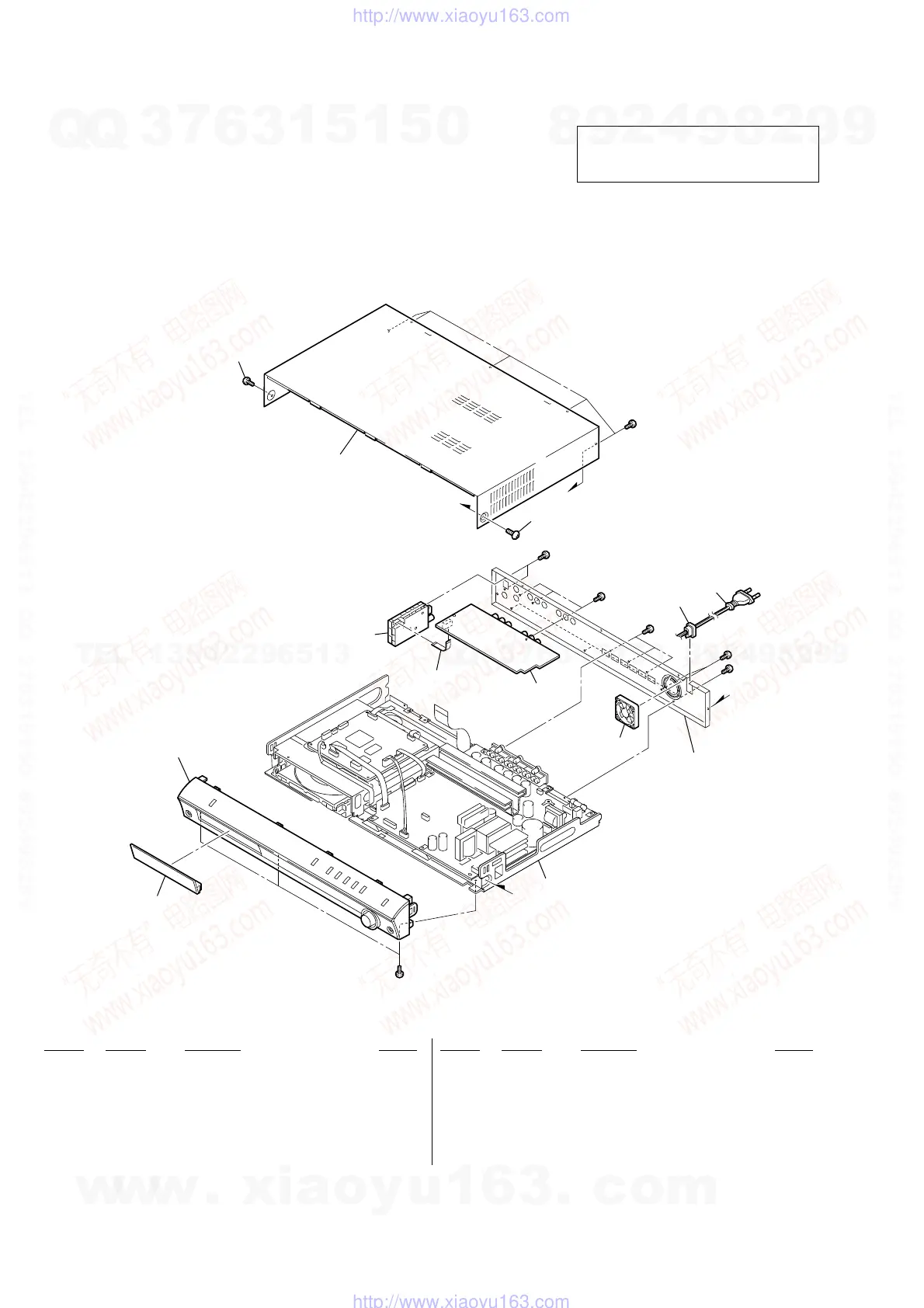

6-1. OVERALL SECTION
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
b
a
b
a
6
7
4
1
3
2
5
8
9
3
chassis section
#1
#1
#1
#1
#1
#2
#1
front panel assy section
not supplied
1 X-2025-254-1 DVD LID ASSY
2 2-546-005-01 CASE
3 3-363-099-51 SCREW (CASE 3 TP2)
4 A-1074-643-A TUNER UNIT (DTP-005)
5 1-787-331-11 FAN, D.C.
6 A-1133-108-A I/O BOARD, COMPLETE
7 1-828-952-11 WIRE (FLAT TYPE) (9 CORE)
8 4-217-350-11 STOPPER, CORD
0 9 1-828-528-11 CORD, POWER
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#2 7-685-881-09 SCREW +BVTT 4X8 (S)
