HCD-ED2
24
24

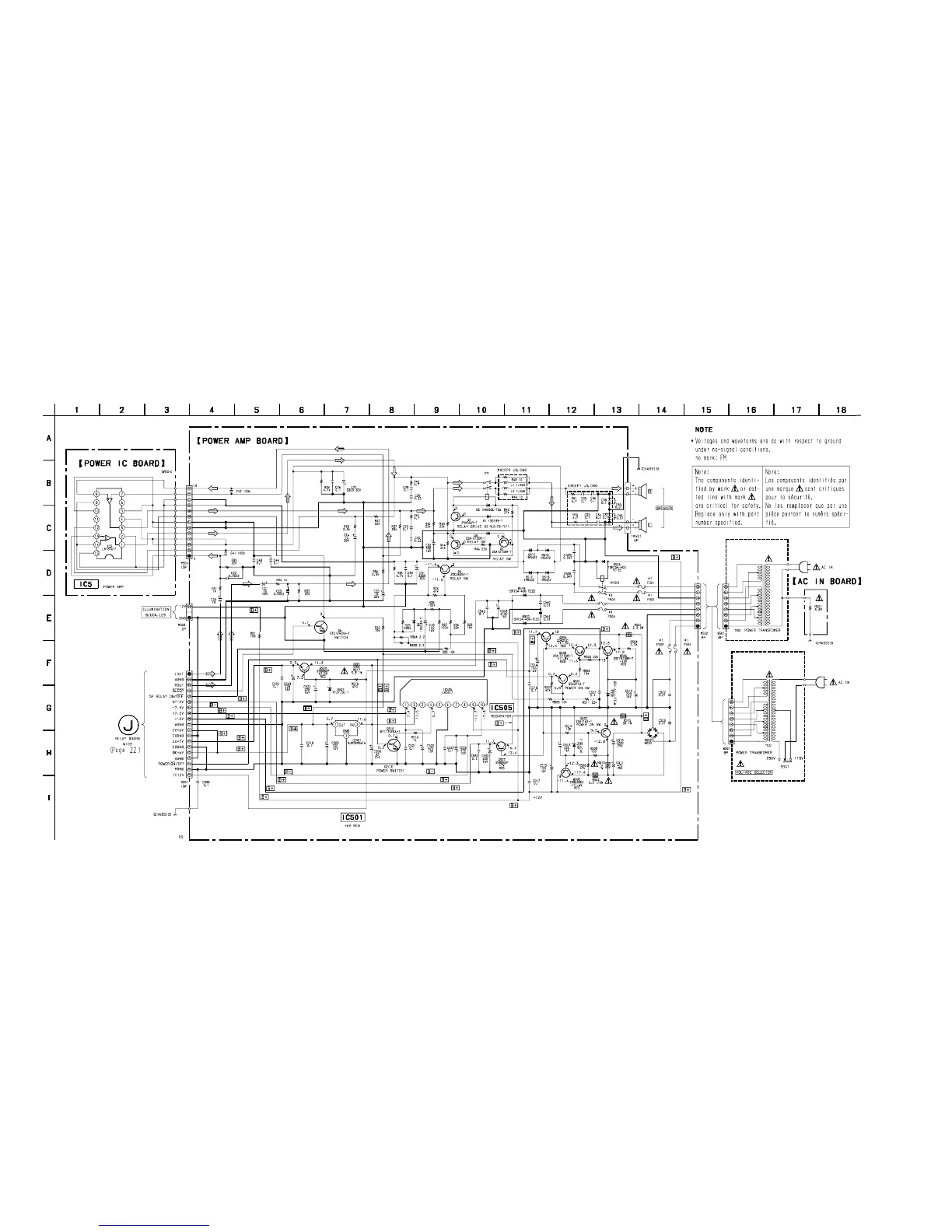

6-12. SCHEMATIC DIAGRAM – POWER SECTION –
• See page 13 for Waveforms.
• See page 25 for Printed Wiring Board.
• See page 28 for IC Block Diagrams.
• See page 30 for IC Pin Functions.
FOR DOUBLE VOLTAGE MODEL
MODEL (MY, SP, TW, HK)
FOR SINGLE VOLTAGE MODEL
MODEL(US, CANADIAN, AEP, UK, KR)
Ver 1.1 2002.05
