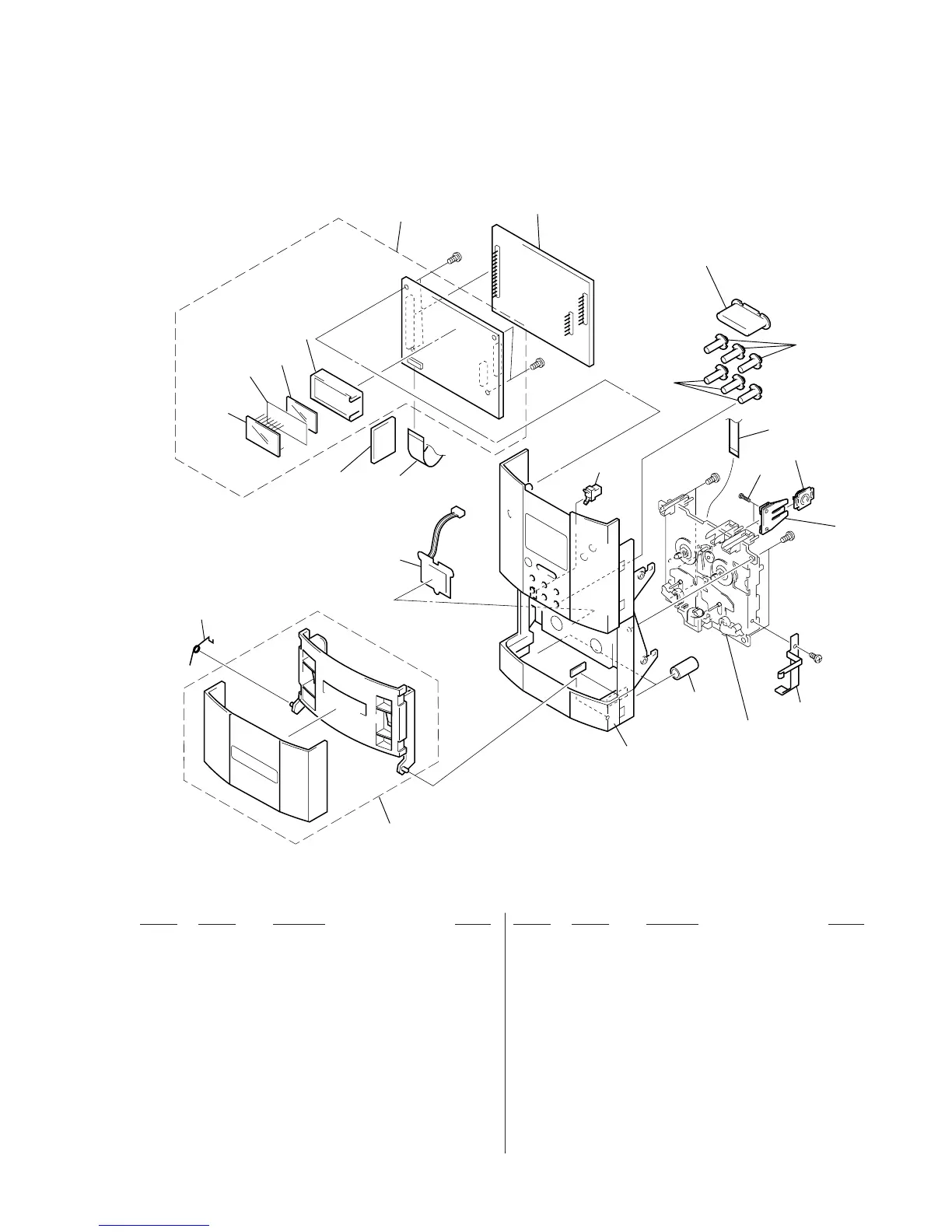

Sony HCD-ED2 - 7-3. FRONT PANEL SECTION EXPLODED VIEW

35
7-3. FRONT PANEL SECTION
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
111 4-225-783-01 GEAR HOLDER
112 4-225-851-01 LCD HOLDER
113 4-225-853-01 LIGHT BAR
114 4-225-852-01 DISPLAY FILTER
115 4-225-755-01 SOLDER LUG,WIRE
116 4-225-778-01 FUNCTION BUTTON
117 1-791-959-11 FCC (184-F312F5508),12P
118 4-225-782-01 BOSS
119 1-676-337-11 LED BOARD
120 4-225-762-01 SCREW + KTP1.7x6
121 1-418-482-11 ILLUMINATION BLOCK,LED
Z201 1-793-885-11 INDICATOR TUBE,FLUORESCENT
101 4-225-779-01 PUSH BUTTON
102 4-225-771-01 SPRING (DOOR), TORSION
103 X-4952-472-1 CASS DOOR SUB ASSY
104 1-791-958-11 WIRE (FLAT TYPE) (15 CORE)
* 105 A-4428-104-A DISPLAY BOARD, COMPLETE
(AEP,UK,MY,SP,KR,TW)
* 105 A-4428-244-A DISPLAY BOARD, COMPLETE (US,CND)
* 105 A-4428-248-A DISPLAY BOARD, COMPLETE (AUS,KR)
* 105 A-4428-249-A DISPLAY BOARD, COMPLETE (HK)
* 106 A-4428-106-A RELAY BOARD, COMPLETE
107 4-225-789-01 GEAR DAMPER (GD-21-A)
108 X-4952-469-1 PANEL SUB ASSY, FRONT
109 4-225-790-01 DOOR LATCH (DL-05T)
103
102
108
109
115
118
111
101
101
116
107
117
120
104
121
119
105
112
113
114
106
#3
#3
Z201
#5
#5
DECK, MECHANICAL
#3
