Sony HCD-ED2 - 7-4. MECHANISM DECK SECTION (CASSETTE) EXPLODED VIEW

36

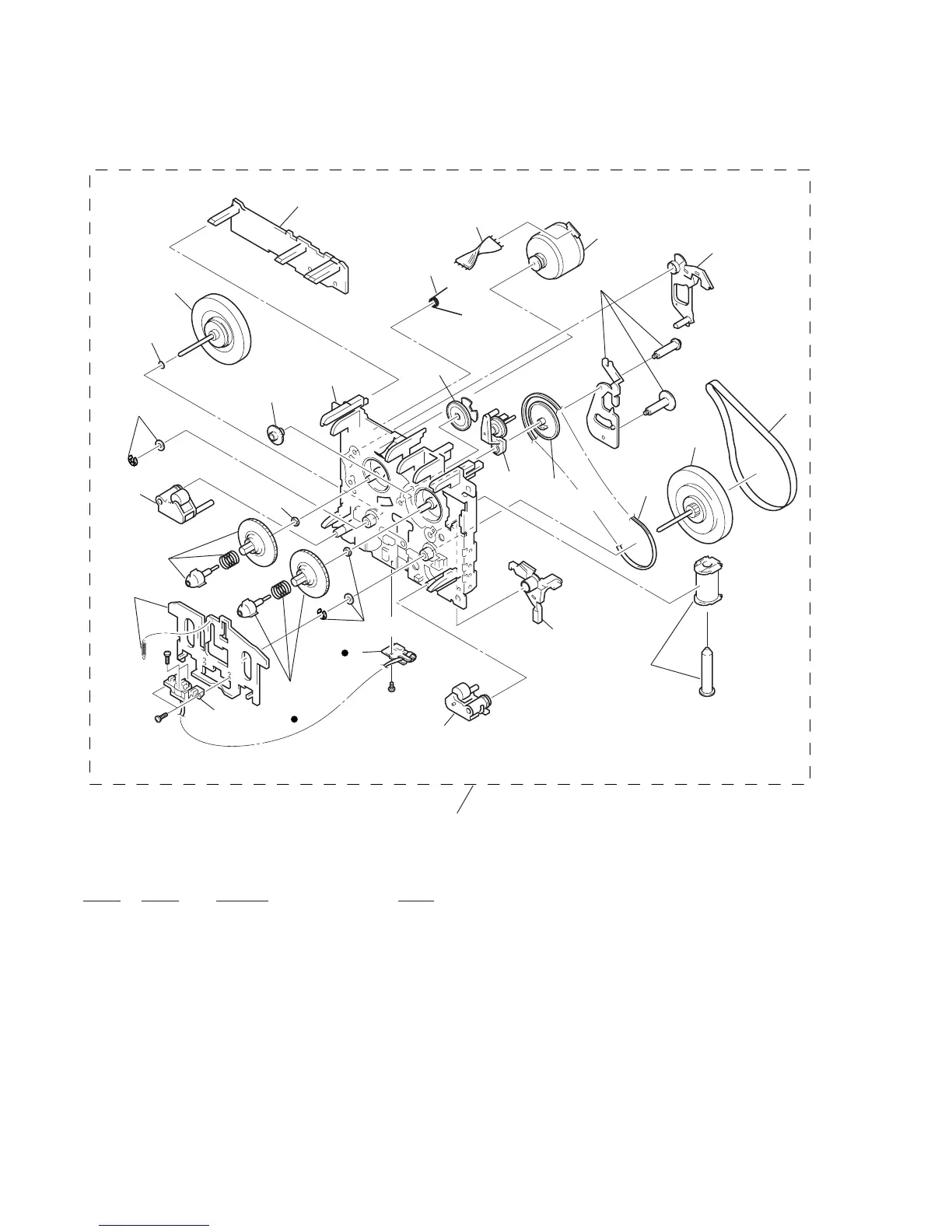

7-4. MECHANISM DECK SECTION (CASSETTE)
Ref. No. Part No. Description Remark
151 1-772-264-11 DECK, MECHANICAL
152 X-4952-487-1 CONTROL BLK ASSY
153 X-4949-566-1 CLUTCH BLK ASSY
154 X-4952-488-1 PLATE HD BLK ASSY
155 4-997-983-01 BELT MAIN
156 X-4949-568-1 ROLLER PINCH BLK R ASSY
157 X-4949-569-1 ROLLER PINCH BLK L ASSY
158 4-997-984-01 F/R BELT
159 X-4949-567-1 CLUTCH BLK2 ASSY
M901 X-4952-489-1 MTR MAIN BLK ASSY (CAPSTAN/REEL)
151
156
157
152
M901
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
#6
#6
#7
not supplied
not supplied
not supplied
not
supplied
not
supplied
not
supplied
not
supplied
153
155
158
159
A
154
(including )
A
