33
SECTION 7
EXPLODED VIEWS
NOTE:
• -XX, -X mean standardized parts, so they may have
some difference from the original one.
• Items marked “*” are not stocked since they are
seldom required for routine service. Some delay
should be anticipated when ordering these items.
• The mechanical parts with no reference number in
the exploded views are not supplied.
• Hardware (# mark) list and accessories and pack-
ing materials are given in the last of this parts list.
• Abbreviation
CND : Canadian model
HK : Hong Kong model
SP : Singapore model
MY : Malaysia model
KR : Korean model
TW : Taiwan model
AUS : Australian model
The components identified by
mark ! or dotted line with mark
! are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque ! sont critiques pour la
sécurité.
Ne les remplacer que par une
piéce portant le numéro spécifié.

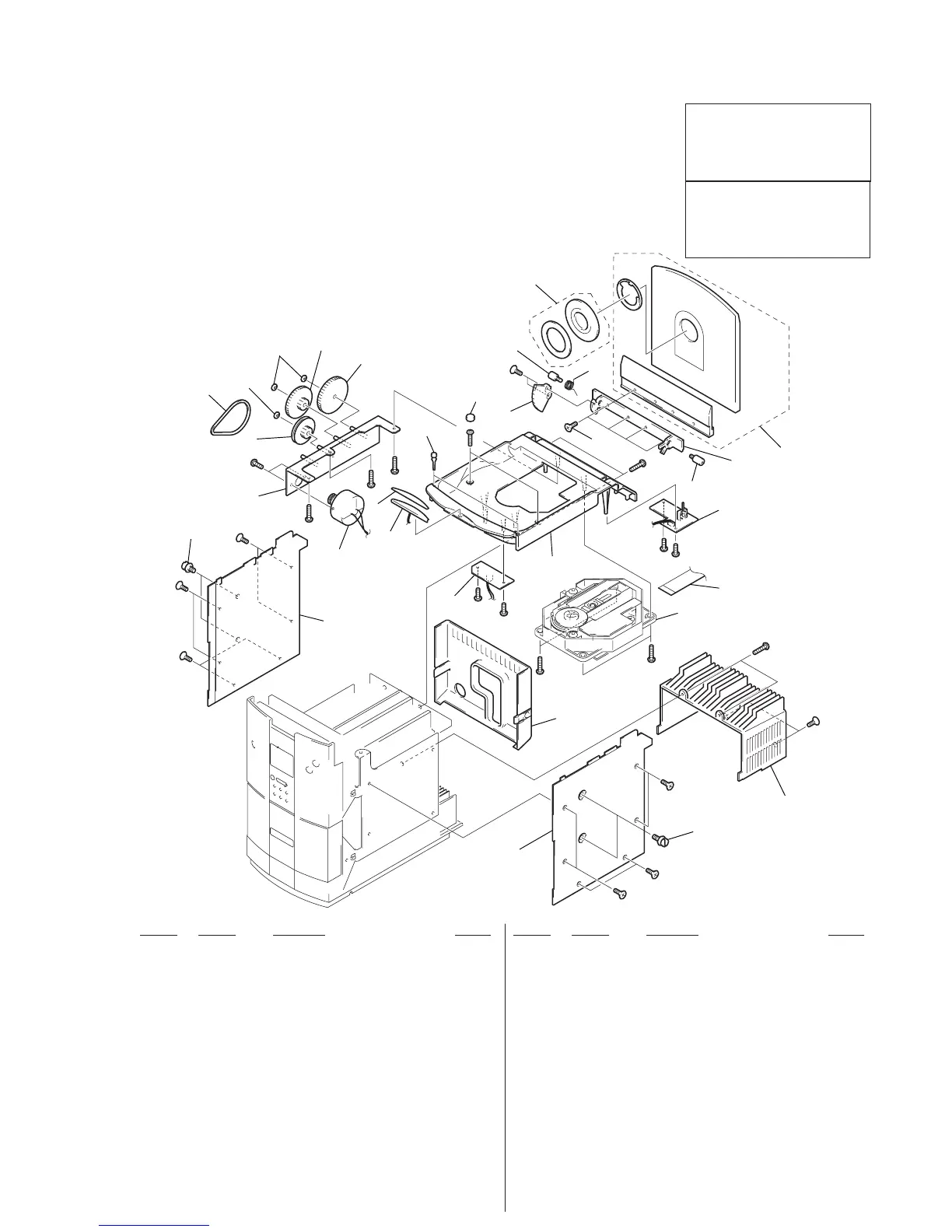

7-1. CD SECTION
1 4-225-804-01 GEAR BRACKET
2 4-225-808-01 GEAR PULLEY
3 4-225-796-01 BELT
4 4-225-803-01 SHAFT WASHER
5 4-225-806-01 GEAR B
6 4-225-807-01 GEAR C
8 4-225-809-01 O/C PLATE
9 4-225-756-01 DOOR CUSHION
10 4-225-757-01 DOT
11 4-225-786-01 DOOR GEAR
12 X-4952-474-1 STABILIZER SUB ASSY
13 4-225-770-01 SPRING (CD), TORSION
14 X-4952-473-1 DOOR SUB ASSY, GLASS (AEP,UK)
14 X-4952-591-1 DOOR SUB ASSY, GLASS (US,CND)
14 X-4952-592-1 DOOR SUB ASSY, GLASS
(MY,SP,HK,KR,TW,AUS)
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
15 4-225-761-01 PIN SCREW
16 1-676-334-11 CD SW BOARD
17 4-225-777-01 HINGE
18 4-225-810-01 CD BASE
19 4-225-811-01 EJECT PLATE
20 4-225-784-01 SIDE PANEL (L)
21 1-676-335-11 TOUCH SENSOR BOARD
22 4-225-781-01 BACK COVER
23 4-225-775-01 BACK COVER (2)
24 4-225-758-01 HOOK SCREW
25 4-225-785-01 SIDE PANEL (R)
26 1-791-960-11 FFC (184-5GW0145-1A)
27 4-225-760-01 SCREW +KTT 3x8
1
2
24
24
5
6
21
22
25
23
20
19
18
8
9
10
13
12
15
15
11
14
16
26
27
4
4
3
Base unit
not supplied
#1
#1
#1
#2
#2
#2
#2
#2
#1
#1
#1
#2
#2
#4
#2
#3
#3
#3
#3
#3
17
#1
To Next Page
