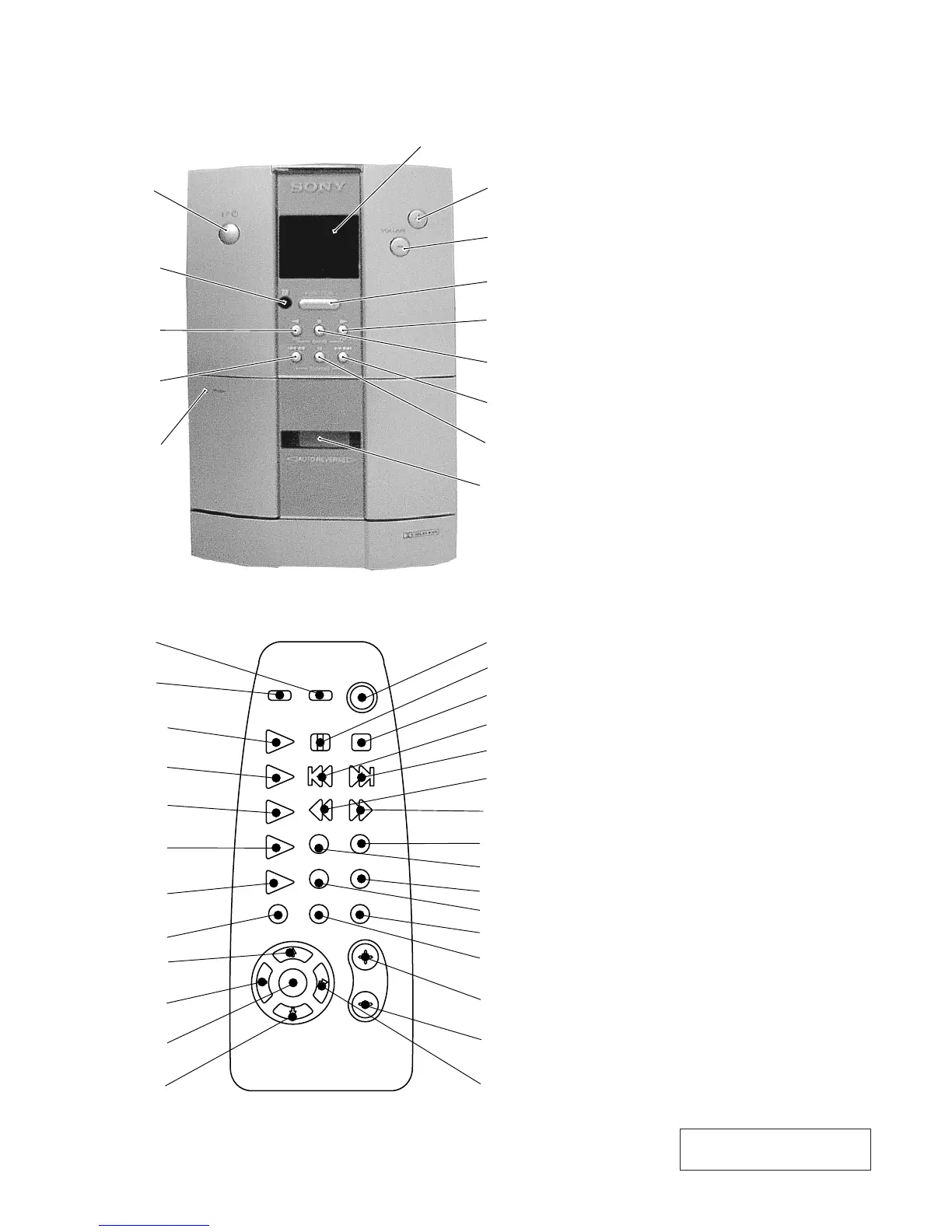

LOCATION OF PARTS AND CONTROLS
1 1/u (Power) switch
2 Display window
3 VOLUME + button
4 VOLUME - button
5 FUNCTION
6 ( button
7 p (stop) button
8 ) + + button
9 P button
10 DECK Lid
11 6 Push
12 = 0 - button
13 9 button
14 Remote sensor
SECTION 2
GENERAL
Front Panel
6
2
1
28
27
26
25
24
23
3
4
5
7
8
10
11
12
13
16
9
14
15
17
22
21
20
19
18
REMOTE
1 OPEN/CLOSE button
2 DISPLAY button
3 1/u (power) switch
4 ∏ (pause) button
5 π (stop) button
6 ≠ (AMS*) TUNING - button
7 ± (AMS*) TUNING + button
8 º button
9 ‚ button
10 r REC button
11 DOLBY NR button
12 SURROUND button
13 TUNING MODE button
14 DSG button
15 STEREO/MONO button
16 VOLUME + button
17 VOLUME - button
18 TIMER SELECT button
19 SLEEP button
20 ENTER button
21 TIMER SET button
22 MEMORY button
23 CD REPEAT button
24 PLAY MODE button
25 DIR MODE button
26 TAPE œ button
27 TUNER/BAND button
28 CD · button
* AMS is the abbreviation for Automatic Music Sensor.
1
2
3
11
12
13
4
5
14
6
7
9
8
10
