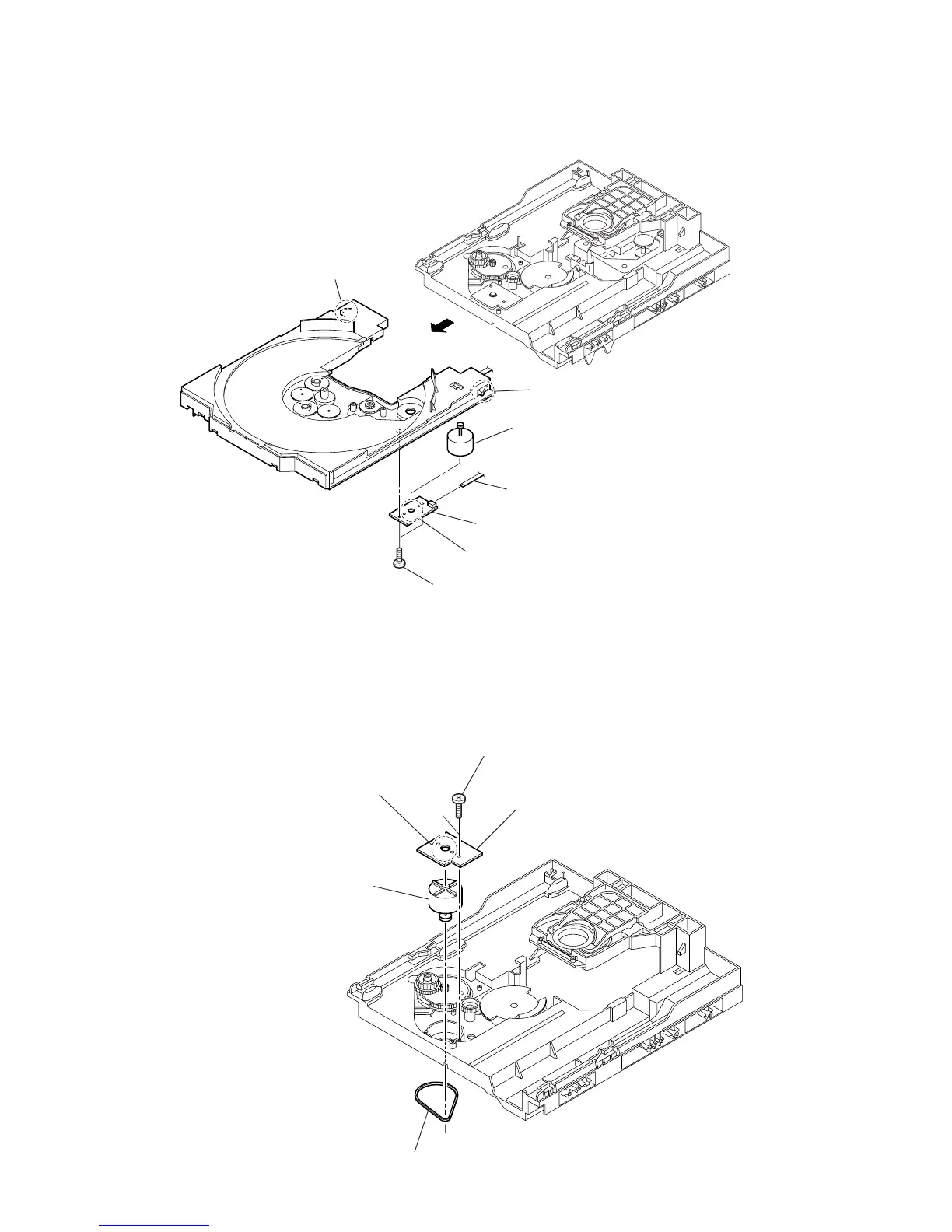

3-18. MOTOR (TB) BOARD
6 Remove the two solderings of motor.
8 MOTOR (TB) board
7 t able motor assy (M741)
5 two screws
(+BTTP (M2.6))
4
3
wire (flat type) 5 core (CN742)
1 stopper
2 stopper
3-19. MOTOR (LD) BOARD
4 Remove the two solderings of motor.
3 MOTOR (LD) board
1 b elt (loading)
5 l oading motor assy (M751)
2 two screws
(+BTTP (M2.6))
