Sony HCD-GNX780 - 8 Exploded Views; Case (Top), Back Panel Section

64
HCD-GNX780/GNX880
Ref. No. Part No. Description Remarks
Ref. No. Part No. Description Remarks
SECTION 8
EXPLODED VIEWS

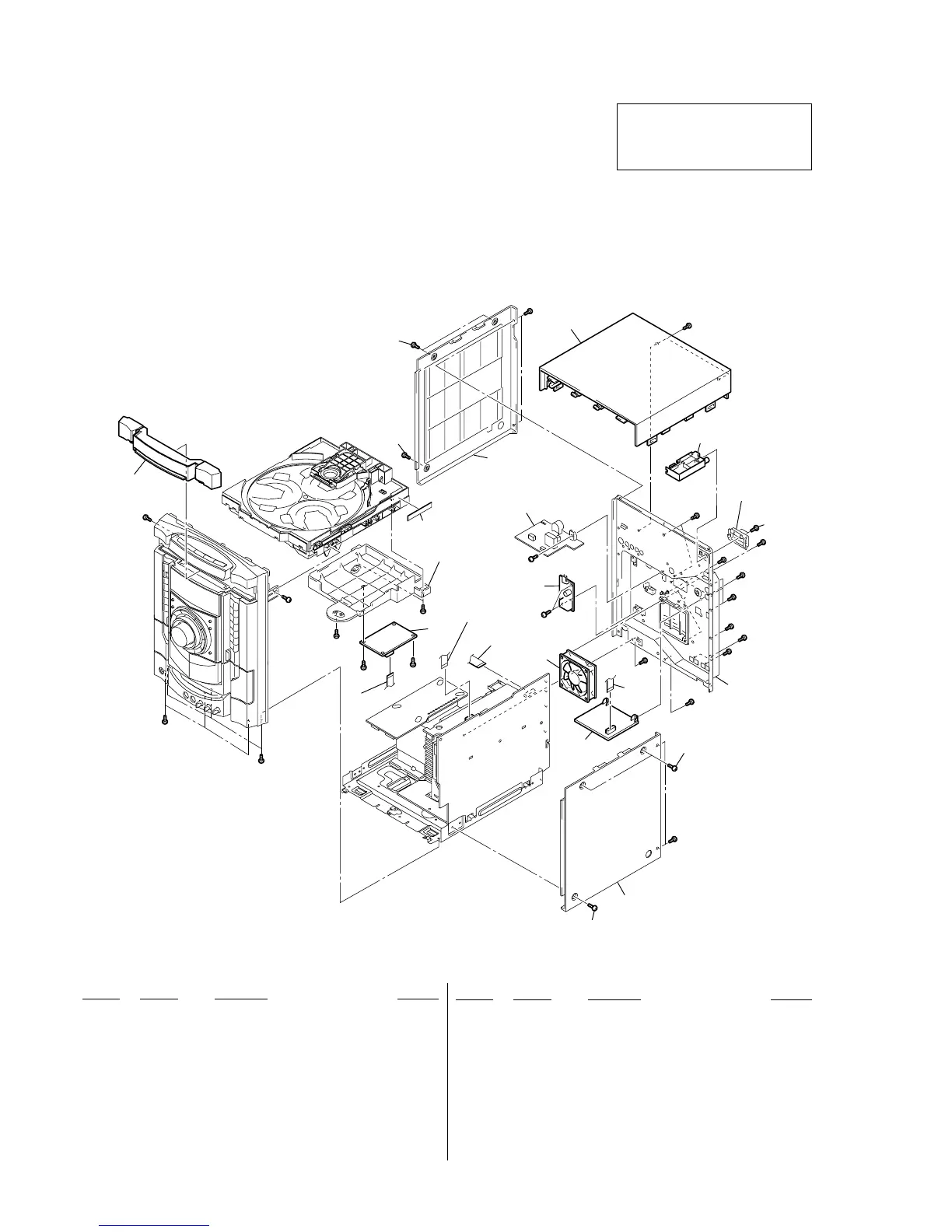

8-1. CASE (TOP), BACK PANEL SECTION
NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
• Hardware (# mark) list and accessories are
given in the last of this parts list.
The components identified by mark 0 or
dotted line with mark 0 are critical for
safety.
Replace only with part number specified.
1
2
3
4
#1
not supplied
#1
#1
#1
#1
#3
#1
#2
#1
#1
5
7
6
10
#2
#2
#1
8
9
#1
#1
#3
#3
not supplie
d
#1
3
4
not supplied
not supplied
#1
M891
not supplied
not supplied
not
supplied
not supplied
#1
#1
#1
#1
12
11
1 2-655-708-21 PANEL, LOADING (GNX880)
1 2-655-708-31 PANEL, LOADING (GNX780)
2 2-342-117-01 CASE (TOP)
3 3-363-099-32 SCREW (CASE 3 TP2)
4 3-363-099-02 SCREW (CASE 3 TP2)
5 1-693-702-21 TUNER (FM/AM) (TM10SE)
6 A-1156-257-A EFFECTOR BOARD, COMPLETE
07 1-468-737-51 POWER SWITCHING
8 1-775-280-11 WIRE (FLAT TYPE) (31 CORE)
9 3-077-331-21 +BV3 (3-CR)
10 1-823-718-11 WIRE (FLAT TYPE) (17 CORE) (100mm)
11 3-378-109-12 CUSHION, SARANET
12 A-1156-284-A CDG BOARD, COMPLETE
M891 1-787-400-11 D.C. FAN
#1 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3
#2 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#3 7-685-648-79 SCREW +BVTP 3X12 TYPE2 IT-3
