Sony HCD-GNX780 - CD Mechanism Deck Section-1 (CDM74 KF-F1 BD84)

68
HCD-GNX780/GNX880

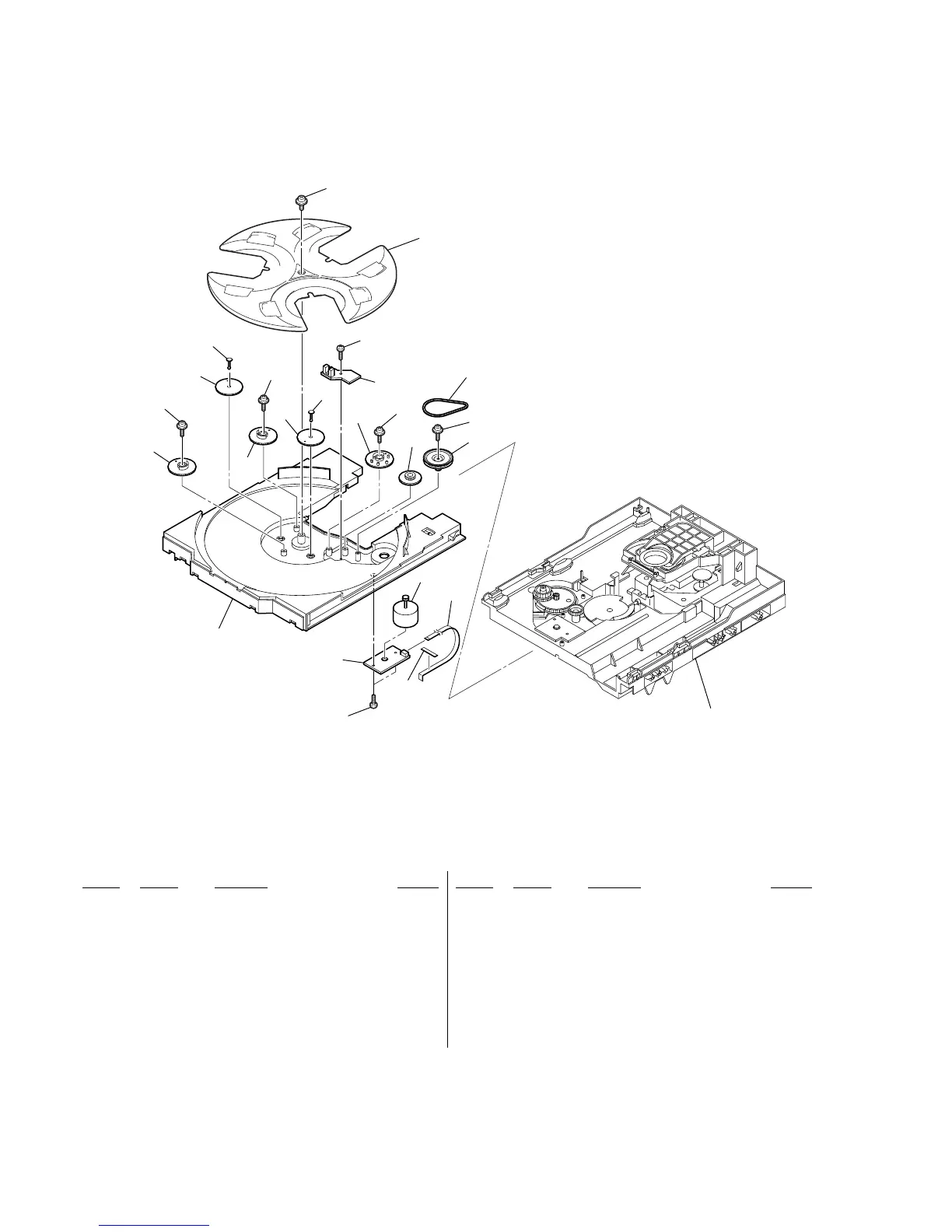

8-5. CD MECHANISM DECK SECTION-1
(CDM74KF-F1BD84)
Ref. No. Part No. Description Remarks
Ref. No. Part No. Description Remarks
202
204
205
205
206
206
207
207
208
208
209
201
206
212
213
206
215
210
211
206
CD mechanism deck section-
2
201
203
216
M741
201 4-218-253-32 SCREW (M2.6), +BTTP
202 1-776-182-11 WIRE (FLAT TYPE) (5 CORE)
203 1-687-134-12 MOTOR (TB) BOARD
204 4-243-815-01 TABLE (LOADING)
205 4-245-571-02 GEAR (STOPPER)
206 4-985-672-01 SCREW (+PTPWH M2.6), FLOATING
207 4-245-570-01 GEAR (JOINT)
208 4-245-572-01 BUSHING (GEAR)
209 1-687-132-12 SENSOR BOARD
210 4-243-820-01 GEAR (TABLE)
211 4-243-819-01 GEAR (GENEVA)
212 4-243-816-01 TRAY
213 4-243-823-01 BELT (TABLE)
215 4-243-821-01 PULLEY (TABLE)
216 3-231-598-01 SHEET (BA)
M741 A-1108-965-A MOTOR ASSY, TABLE (TABLE)
