Sony HCD-GNX780 - Chassis Section

67
HCD-GNX780/GNX880

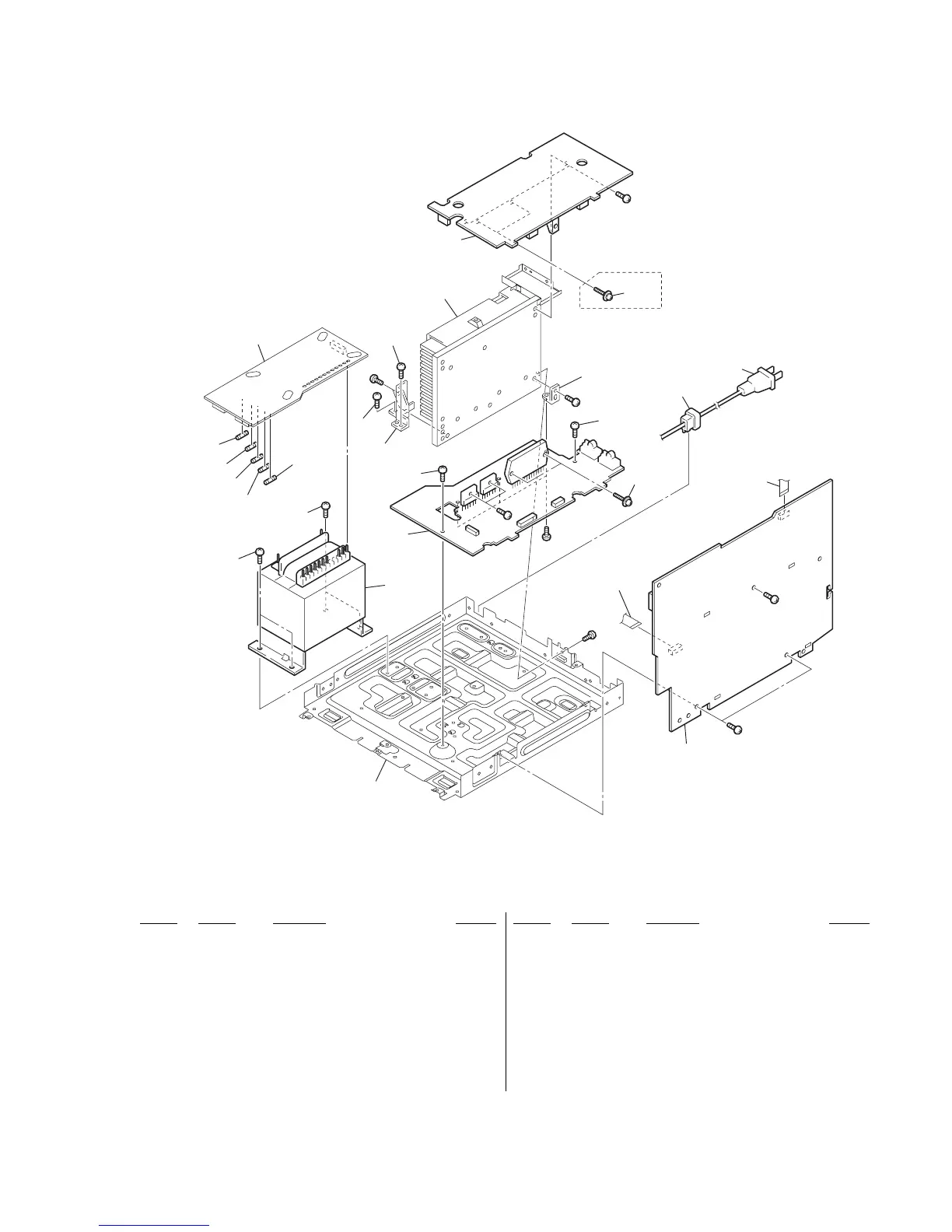

8-4. CHASSIS SECTION
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
#1
#1
#1
#1
#1
#1
#1
#1
F1241
T1200
F1251
F1261
F1271
F1281
152
151
151
153
153
153
153
154
155
155
157
158
160
(GNX880)
151 4-900-386-01 SCREW
152 A-1174-309-A PA BOARD, COMPLETE (GNX780)
152 A-1181-956-A PA BOARD, COMPLETE (GNX880)
153 3-077-331-21 +BV3 (3-CR)
154 A-1156-249-A SURROUND BOARD, COMPLETE (GNX880)
155 3-905-609-31 SCREW (TRANSISTOR)
0157 1-829-627-31 POWER-SUPPLY CORD
158 3-703-571-11 BUSHING (S) (4516), CORD
160 A-1156-276-A MAIN BOARD, COMPLETE (GNX880)
160 A-1174-064-A MAIN BOARD, COMPLETE (GNX780)
0F1241 1-533-949-33 FUSE, CYLINDRICAL (TIME LUG) (T8AL/250V)
0F1251 1-533-949-33 FUSE, CYLINDRICAL (TIME LUG) (T8AL/250V)
0F1261 1-533-949-33 FUSE, CYLINDRICAL (TIME LUG) (T8AL/250V)
0F1271 1-533-949-33 FUSE, CYLINDRICAL (TIME LUG) (T8AL/250V)
0F1281 1-532-465-33 FUSE (T3.15AL/250V)
0T1200 1-443-584-11 POWER TRANSFORMER (GNX880)
0T1200 1-443-973-11 POWER TRANSFORMER (GNX780)
#1 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3
Ver. 1.1
