Sony HCD-GRX5 - Printed Wiring Boards - CD Section

– 29 –
– 30 –
HCD-GRX5/RX66

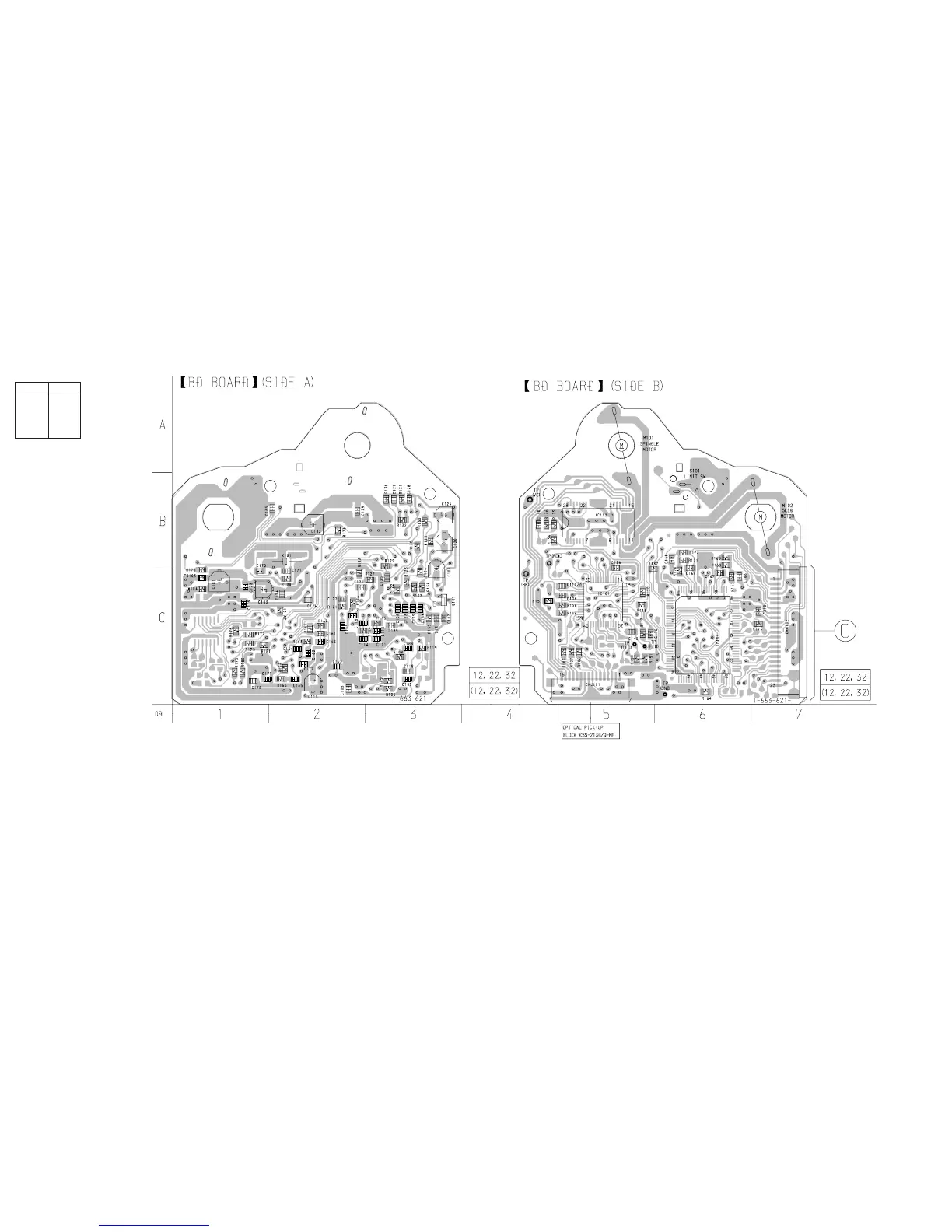

7-5. PRINTED WIRING BOARD – CD Section –
• See page 18 for Circuit Boards Location. • See page 27 for Note on Printed Wiring Boards.
• Semiconductor
Location
Ref. No. Location
IC101 C-5
IC201 B-5
IC501 C-6
Q101 C-3
(Page 43)
MAIN BOARD
CN105
