Sony HCD-GRX5 - Printed Wiring Board - PANEL Section

– 53 –
– 54 –
HCD-GRX5/RX66

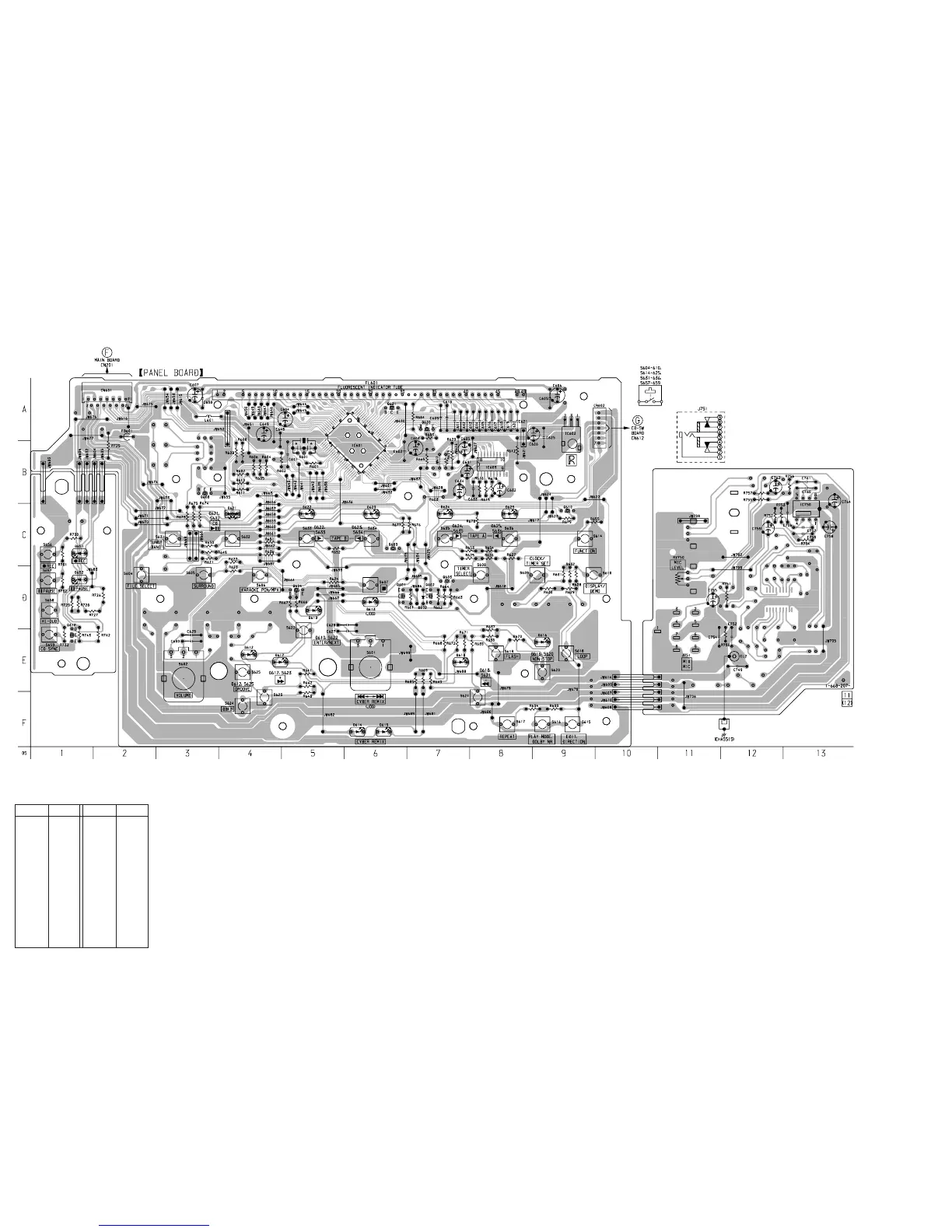

7-18. PRINTED WIRING BOARD – PANEL Section –
• See page 18 for Circuit Boards Location. • See page 27 for Note on Printed Wiring Boards.
Ref. No. Location
Ref. No. Location
• Semiconductor Location
D602 D-7
D610 D-5
D612 E-4
D613 D-6
D614 F-6
D615 F-6
D616 E-9
D617 E-4
D618 E-7
D621 C-4
D622 C-5
D623 C-6
D624 C-7
D625 C-8
D651 C-1
D652 D-1
IC601 B-6
IC602 A-9
IC603 B-8
IC750 C-13
Q601 D-6
Q602 D-7
Q603 D-7
Q604 D-5
Q608 B-3
Q609 C-6
Q610 C-9
Q618 E-1
Q620 A-7
Q621 A-6
(page 43)
(page 58)
