Sony HCD-GRX5 - 8 Exploded Views

– 73 –
SECTION 8
EXPLODED VIEWS
Les composants identifiés par une
marque ! sont critiquens pour la
sécurité.
Ne les remplacer que par une pièce
portant le neméro spécifié.
The components identified by
mark ! or dotted line with mark
! are critical for safety.
Replace only with part number
specified.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference num-
ber in the exploded views are not supplied.
• Hardware (# mark) list and accessories and
packing materials are given in the last of the
electrical parts list.
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark

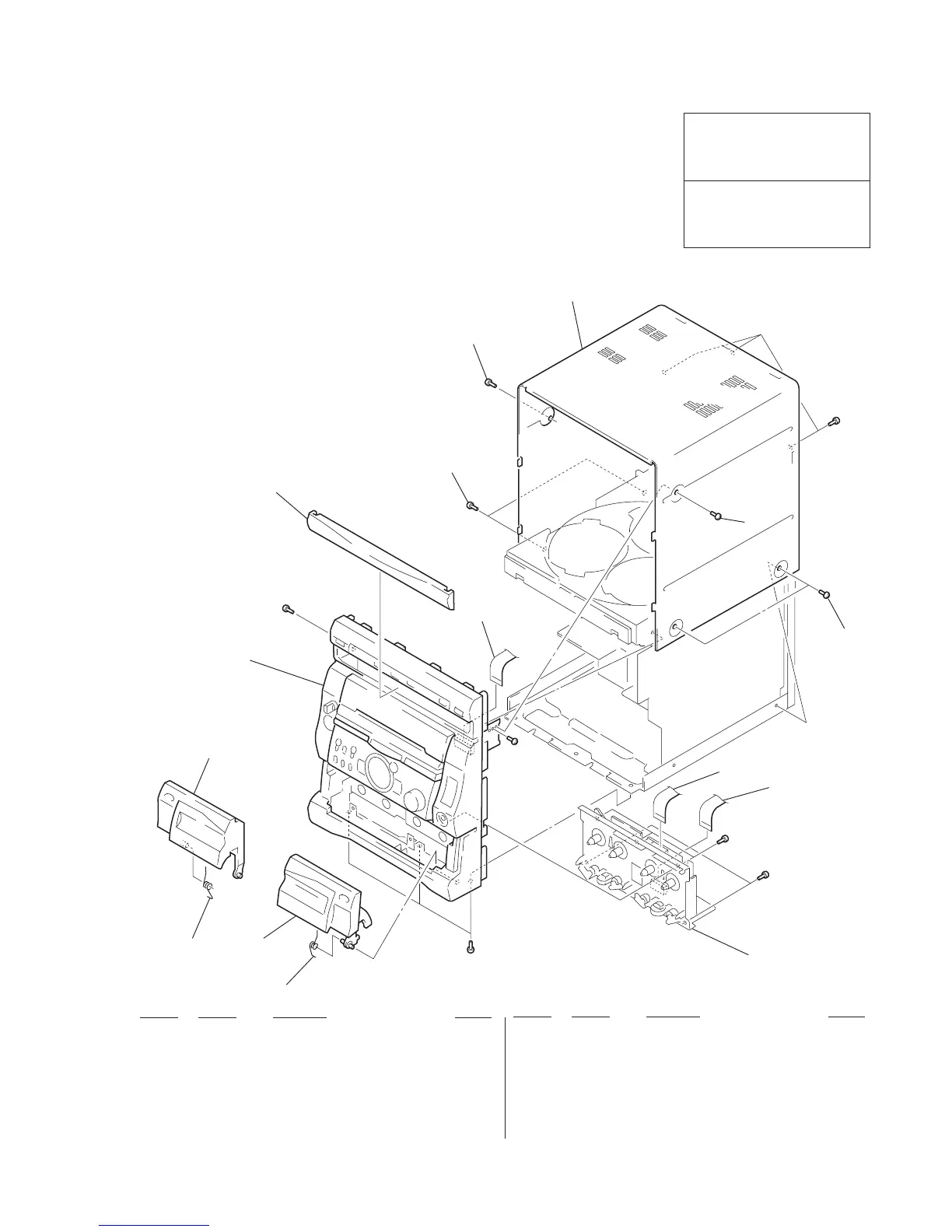

(1) CASE SECTION
9
8
8
7
10
11
7
5
4
3
2
1
6
#2
#5
#2
#2
#3
#3
Front panel
TCM-230AWR1
TCM-230PWR1
1 4-996-733-01 SPRING (B DECK)
2 X-4949-350-1 LID (R) ASSY, CASSETTE
3 4-996-732-01 SPRING (A DECK)
4 X-4949-349-1 LID (L) ASSY, CASSETTE
5 4-996-703-01 PANEL, LOADING (RX66)
5 4-996-703-11 PANEL, LOADING (GRX5)
6 1-769-984-11 WIRE (FLAT TYPE) (13 CORE) (23 CM)
7 3-363-099-11 SCREW (CASE 3 TP2) (3X8)
8 3-363-099-71 SCREW (CASE 3 TP2) (3X12)
* 9 4-996-728-01 CASE (EXCEPT GRX5: IA/RX66)
* 9 4-996-728-21 CASE (GRX5: IA)
10 1-773-048-11 WIRE (FLAT TYPE) (17 CORE)
11 1-773-025-11 WIRE (FLAT TYPE) (15 CORE) (33 CM)
• Abbreviation
AUS : Australian IA : Indonesian
CND : Canadian MX : Mexican
E2 : 120 V AC Area in E model MY : Malaysia
E3 : 240 V AC Area in E model SAF : South African
EA3 : Saudi Arabia SP : Singapore
EA4 : Israel TH : Thai
HK : Hong Kong TW : Taiwan
